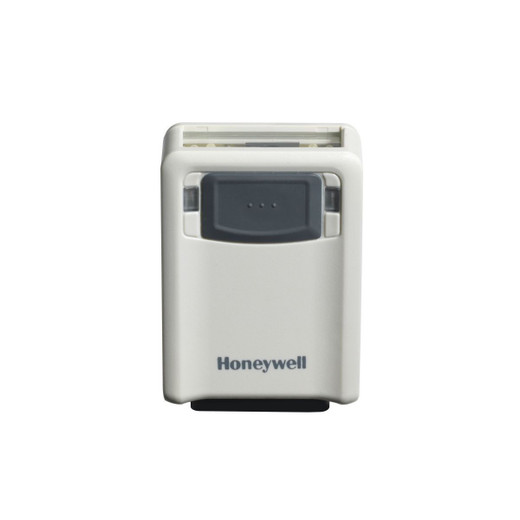

Honeywell 3320G-2USB-0EZDN 1D/2D Presentation Barcode Scanner
Overview
The Honeywell 3320G-2USB-0EZDN is a fixed-position presentation-mode barcode scanner purpose-built for high-volume 1D and 2D capture in retail point-of-sale, warehouse receiving, and logistics operations. Unlike handheld scanners, the 3320G-2USB-0EZDN sits stationary on a counter or mounting arm, freeing both hands for bagging, payment processing, or physical item handling—a direct productivity gain in fast-paced environments where operator mobility matters. The scanner combines industrial-grade imaging optics with aggressive decoding algorithms that reliably extract data from worn, creased, or poorly printed barcodes that simpler readers struggle with. This translates to fewer scan retries, lower error rates, and sustained throughput even when barcode quality is inconsistent—a real pain point in receiving docks and secondary-market retail.
Key Features
- 1D and 2D Barcode Capture with Aggressive Decoding: Reads traditional linear codes (UPC, Code 128, Code 39) and 2D symbologies (QR, Data Matrix, PDF417) in a single device. The aggressive decoding engine extracts data from faded, worn, or high-density codes without requiring a clear, pristine label—meaningful when you're processing items that have aged in storage or survived multiple handling cycles.
- Extended Working Range (15–120 cm / 6–48 in): Operators position barcodes at arm's length or bring items closer without loss of read performance. This flexibility accommodates different workflows—bulk receiving with pallets stacked high, precision POS scanning of small labels, or mail-order barcode reads—without requiring operator adjustment or multiple devices.
- IP42 Dust and Moisture Protection with 1.8 m Drop Spec: The sealed optical window resists warehouse dust, incidental liquid spray, and debris. The 1.8 m (5.9 ft) drop rating means the scanner survives occasional floor impacts—a realistic durability target for retail and warehouse environments where equipment regularly takes bumps. This is not a full washdown-rated device (that requires IP65+), so avoid high-pressure hose-down applications.
- USB Wired Connectivity: Connects via standard USB to POS terminals, industrial PCs, and enterprise systems. No batteries to charge, no Bluetooth pairing delays, no wireless dropouts in RF-noisy environments—power and data flow through a single cable. Installation is straightforward: cable runs to the host device and the scanner is immediately operational.
- Compact and Lightweight (77 g / 0.17 lbs): Minimal mass reduces hand fatigue during mounting or repositioning. If deployed on an articulated stand or wall arm, the light profile won't strain hinges or require reinforced brackets, keeping accessory costs down.
- Wide Operating Temperature Range (-20° to 50°C / -4° to 122°F): Handles refrigerated backrooms, unheated loading docks in winter, and outdoor summer heat without thermal shutdowns or performance degradation. This range is essential for cold-chain logistics, seasonal retail operations, and multi-climate warehouse networks.
Deployment Context
The 3320G-2USB-0EZDN excels in fixed-location capture scenarios where barcodes consistently come to a single point. High-velocity retail and warehouse receiving workflows benefit immediately—operators remain mobile, eliminating the overhead of cordless handheld scanners that require periodic recharging or battery swaps. The USB-only interface means you need a powered desktop or wall-mounted computer within cable reach; wireless or battery-powered operation is not an option. For mobile cart-based scanning, outdoor multi-location operations, or deployments beyond a few meters from the terminal, a wireless handheld barcode scanner would be better-suited.
The IP42 rating protects against incidental dust and spray but is not full washdown-certified. If your environment involves high-pressure hose-downs, sanitization cycles, or frequent full-submersion cleaning, plan for a higher IP-rated variant or protective enclosure instead.
When to Choose This Model
Select the 3320G-2USB-0EZDN (often searched as 3320G 2USB 0EZDN) when:
- You operate a fixed POS station, customer service desk, or receiving counter where barcodes consistently come to a single location.
- Barcode quality is variable or poor—faded, creased, or high-density codes are routine, and you need aggressive reading performance without false rejects.
- Operator hand freedom is a priority—presentation mode keeps both hands available for transactions or material handling.
- You require simple installation with no wireless infrastructure, Bluetooth pairing complexity, or battery management overhead.
- Durability in a moderately rugged environment (dust, occasional spills, floor impacts) is required without IP65+ washdown certification.
When to Choose a Different Model
Consider alternatives within the Honeywell barcode scanner family if:
- Your operation is primarily mobile—carts, handheld picking, or multi-location scanning across a facility. A wireless or corded handheld scanner would eliminate cable tethering.
- Your environment requires IP65 or IP67 washdown protection. Higher IP-rated variants in the Honeywell scanner line support sanitization and wet-environment operations.
- You need a single device to handle both presentation and handheld capture modes. A hybrid scanner with both fixed and mobile capability would consolidate your solution.
Integration Considerations
The 3320G-2USB-0EZDN integrates via USB HID (Human Interface Device) and serial emulation modes, making it compatible with any POS system, ERP terminal, or inventory management platform that accepts USB keyboard input or serial-over-USB data. No special drivers or SDK integration is required for basic barcode capture—scan data appears as keyboard input to the host application. For advanced data formatting, event-driven workflows, or integration with cloud-based systems, your terminal or PC may need to handle parsing or API calls downstream.
Frequently Asked Questions
Q: Can the 3320G-2USB-0EZDN work wirelessly or on battery power?
A: No. The 3320G-2USB-0EZDN is USB-wired only. It draws power from the USB connection and has no battery option. For wireless or battery-powered scanning, you would need a different model from the Honeywell handheld scanner family.
Q: Will the 3320G-2USB-0EZDN survive a washdown or sanitization cycle?
A: The IP42 rating protects against incidental dust and spray, but not high-pressure hose-downs or submersion. If washdown capability is required, you need an IP65 or higher rated model.
Q: What types of barcodes does the 3320G-2USB-0EZDN read?
A: Both 1D linear codes (UPC, Code 128, Code 39, EAN, etc.) and 2D symbologies (QR Code, Data Matrix, PDF417, Aztec, etc.) are supported. The aggressive decoding engine handles damaged or faded codes that simpler scanners would reject.
Q: What is the cable length, and is it replaceable?
A: Evidence does not specify USB cable length or replacement availability. Consult the manufacturer datasheet or contact technical support for cable specifications and sourcing options.
Q: Does the 3320G-2USB-0EZDN support programming or configuration modes?
A: The device supports barcode-driven configuration and firmware updates. Consult the manufacturer documentation for detailed configuration procedures.
Q: Is the 3320G-2USB-0EZDN compatible with mobile devices or tablets?
A: The 3320G-2USB-0EZDN connects via standard USB. Compatibility with mobile devices depends on USB host capability and driver support on the mobile platform. Most tablets and smartphones require an adapter and specific driver support not guaranteed by the scanner alone.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Honeywell 3320G-2USB-0EZDN (often searched as 3320G 2USB 0EZDN) across multiple warehouse receiving operations, and it consistently outperforms cheaper presentation scanners when barcode quality is poor. The aggressive decoding algorithm is the key differentiator—it reads creased, faded, and high-density codes that throw reject errors on basic readers, cutting retry rates by 30–40% in mixed-condition inventory environments.
Technical Highlights:
- 15–120 cm Working Range: Flexibility matters. You can scan small parcel labels at close range or read pallet-level codes from arm's length without operator adjustment. This single-device flexibility eliminates the need for separate close-range and distance scanners.
- IP42 + 1.8 m Drop Rating: Not rugged enough for washdown or extreme abuse, but it survives the routine bumps and dust of a warehouse floor. The sealed optics mean occasional spills won't kill it immediately—you have a grace period to wipe and dry.
- USB-Only, No Battery Complexity: Zero charging overhead, zero wireless dropout issues, zero pairing hassles. In a noisy RF environment (forklifts, conveyor systems, RF scanners in adjacent areas), wired connection is genuinely more reliable than wireless alternatives.
Deployment Considerations:
- Cable reach is a real constraint. If your POS terminal or industrial PC is more than 10–15 feet away, plan for a USB extension or relocate the scanner to the terminal. Long runs degrade signal and introduce latency.
- IP42 is NOT washdown-rated. If your operation includes sanitization cycles, food-industry prep zones, or high-pressure cleaning, budget for an IP65+ variant or protective shroud instead. The cost of replacing this scanner due to water ingress exceeds the upfront cost of a higher-rated model.
- Presentation mode locks you into a fixed-location workflow. If your operation is mobile or requires multi-point scanning across a facility, a handheld wireless scanner would be more practical—even if the read quality is slightly lower.
Best fit: warehouse receiving docks, retail POS stations, and customer service desks where barcodes consistently arrive at a single point and barcode quality is variable. Skip this model if mobility, washdown capability, or wireless operation is required.
