Hikvision JBP-W outdoor PTZ junction box for security camera systems
Hikvision JBP-W outdoor PTZ junction box for security camera systems
Hikvision JBP-W junction box detail view showing mounting specifications
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

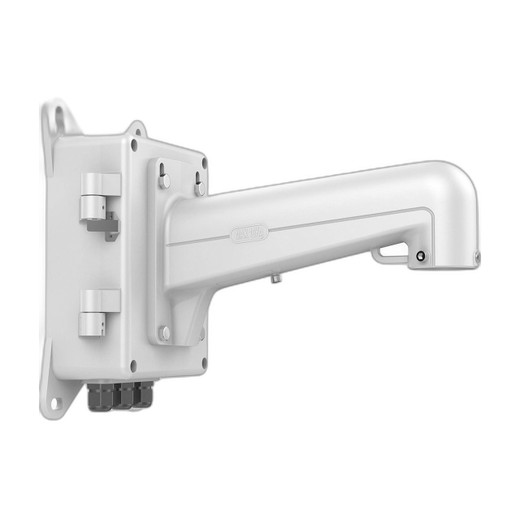

Hikvision JBP-W Outdoor PTZ Junction Box

The Hikvision JBP-W is a rugged outdoor junction box purpose-built for Hikvision PTZ camera installations. This accessory provides secure cable management and connection protection in demanding surveillance environments, supporting professional-grade deployment across commercial and enterprise security systems.

Key Features

  • IP67-rated weatherproof enclosure protects connections from water, dust, and debris
  • Premium aluminum alloy construction for corrosion resistance and durability
  • Compact form factor designed for seamless PTZ camera integration
  • Wide operating temperature range from -40°C to 60°C ensures year-round reliability
  • Organized cable management reduces installation clutter and improves maintainability
  • Hikvision White finish provides professional appearance in outdoor installations

Technical Specifications

  • Material: Premium Aluminum Alloy
  • IP Rating: IP67 (dust-tight, submersion protection)
  • Dimensions: 137mm × 164.8mm × 53.4mm
  • Weight: 1.2kg
  • Temperature Range: -40°C to 60°C
  • Compatibility: Hikvision outdoor PTZ cameras

Applications

This junction box is ideal for outdoor surveillance deployments requiring robust cable protection and management, including perimeter security, parking facilities, traffic monitoring, and industrial surveillance. Its weatherproof design and compact profile make it suitable for installations on building facades, poles, and exposed mounting locations where environmental protection is critical.

Product Documentation

Expert Analysis
Specifications
Dimensions: 137mm x 164.8mm x 53.4mm
Compatible With: Hikvision outdoor PTZ cameras
Form Factor: Junction Box
Material: Premium Aluminum Alloy
Color: Hikvision White
IP Rating: IP67
Operating Temperature: -40°C to 60°C
Weight: 1.2kg
Depth In: 12.2
Height In: 8.23
Weight Lbs: 7.41
Width In: 15.65
Environment Rating: Outdoor
Warranty: 5-year warranty
Form Factor: Box
eol: true
Q&A
Reviews
Product Video

Hikvision JBP-W Outdoor PTZ Junction Box

$183.00
$182.99
Add to Cart

RELATED PRODUCTS

Save $0.01
Hikvision JBPW indoor outdoor junction box with wall mount bracket

Hikvision JBPW

Hikvision JBPW Indoor/Outdoor Junction Box with Wall Mount

Aluminum junction box for indoor/outdoor camera cable management

  • Handles 8–12 standard camera cables with wall mount bracket included
  • Aluminum alloy with surface spray treatment resists corrosion outdoors
  • 15.65" W × 8.23" H × 12.2" D fits standard wall and ceiling runs
In stock · Ships same business day Free shipping over $499
$183.00 $182.99 Save $0.01
Add to quote
$183.00 $182.99 Save $0.01
Save $0.01 Add to quote
Save $0.01
Hikvision CB-DE4A Junction Box for DS-2DE4A PTZ Cameras

Hikvision CB-DE4A

Hikvision CB-DE4A Junction Box for DS-2DE4A PTZ Cameras

Aluminum junction box for DS-2DE4A PTZ cameras with IP-rated weatherproof sealing

  • IP-rated weatherproof enclosure protects connections from rain, dust, and moisture
  • Aluminum alloy housing resists corrosion in coastal and high-humidity environments
  • Bottom and side cable outlets route connections down or horizontally without strain
In stock · Ships same business day Free shipping over $499
$28.00 $27.99 Save $0.01
Add to quote
$28.00 $27.99 Save $0.01
Save $0.01 Add to quote
Save $0.01

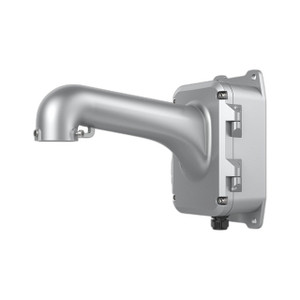

Hikvision JBPW-L-G Speed Dome Junction Box
