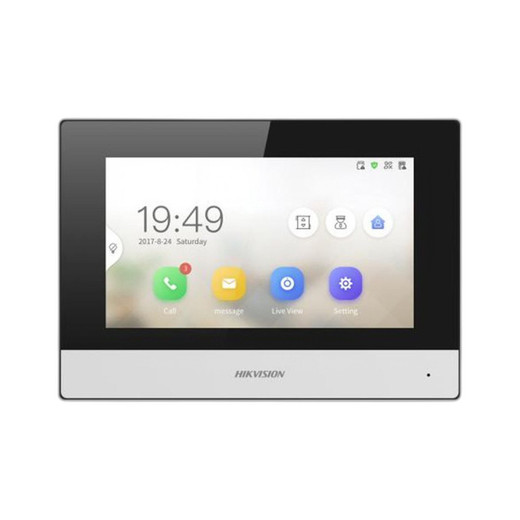

Hikvision DS-KH6320Y-WTE2 7-Inch Touch Screen Indoor Intercom Station
The Hikvision DS-KH6320Y-WTE2 is a professional-grade indoor intercom station purpose-built for multi-unit residential, commercial, and hospitality deployments where installation simplicity and network flexibility matter. The two-wire architecture means you can retrofit existing wiring infrastructure without pulling new cable runs — a meaningful labor cost reduction in retrofit scenarios. The 7-inch capacitive touch screen at 1024 × 600 resolution delivers legible video communication without oversized mounting footprint (200 × 140 × 23.6 mm surface-mount form factor fits standard indoor spaces).
This is fundamentally a control hub: the device manages up to 16 network cameras and 17 IP doorphones simultaneously via Hikvision IP cameras and compatible SIP/RTSP endpoints. That distributed monitoring and call routing capability, combined with 8 configurable alarm inputs and dual relay outputs, lets you wire door strikes, electronic locks, and external alarm systems directly into the unit without intermediary controllers.
Key Features
- Two-wire IP interface: Leverage existing two-conductor cabling for power and data — eliminates need for separate power supplies in many retrofit installations, cutting labor overhead.
- 7-inch TFT capacitive touch screen, 1024 × 600 resolution: Responsive interface for video calling, camera live view, and access control. Bright enough for typical indoor lighting without washout in glare-prone entrances.
- Support for 16 network cameras and 17 IP doorphones: Scale to large apartment complexes or multi-building campuses without additional gateway hardware. Real-time video routing across all endpoints.
- Dual relay outputs (Max. 30 VDC, 0.3 A): Direct lock control and alarm trigger capability — typical for strike locks and door access systems. 0.3 A per relay handles low-impedance solenoid coils; larger magnets require external relay modules.
- 8-channel alarm input with configurable automation: Wire door sensors, motion detectors, or glass-break switches directly. Automation rules fire relay outputs or trigger SIP alerts to remote phones without manual intervention.
- Wi-Fi connectivity (802.11b/g/n): Flexible network deployment where wired Ethernet is inconvenient. Useful for temporary installations or buildings with cable-path constraints, though wired is always preferred for security camera systems due to latency and interference concerns.
- TF microSD card slot, up to 128 GB: Local event and image storage without cloud dependency. Captures up to 200 pictures and 200 alarm records on the card itself; absence of external storage falls back to 2 MB reserved RAM.
- G.711 U/A audio compression at 64 Kbps: Intelligible two-way communication over IP networks with minimal bandwidth footprint — important if bandwidth is constrained or if multiple concurrent calls occur.
- Ultra-low power consumption, ≤ 4 W: Operates from Hikvision KAD704Y or KAD706Y power distributors without strain. Two-wire delivery via these distributors eliminates separate power cabling.
- 1-channel RS-485 interface: Bridge to legacy alarm panels or access control systems that speak Wiegand or proprietary RS-485 protocols.
- Operating range -10 °C to 50 °C, 10–90% humidity: Handles typical indoor climate variation (non-heated basements, mechanical rooms, entries near loading docks). Not rated for outdoor or high-moisture environments (steam rooms, pool areas).
- Multi-language support (English, Spanish, French, Russian, German, and 11 others): Reduces localization overhead for international property management or multi-tenant buildings.
Integration & Compatibility
The DS-KH6320Y-WTE2 operates via TCP/IP, SIP, and RTSP protocols, meaning it interoperates with Hikvision network video recorders and third-party IP camera systems that publish standard RTSP streams. SIP integration with VoIP phone systems is native — route calls to mobile phones, office extensions, or security dispatch centers without dedicated call servers. The embedded Linux OS with 128 MB RAM and 32 MB ROM handles real-time video decode and multi-device state management without noticeable latency under typical loads (16 camera feeds + concurrent doorphone call).
For access control planning, the dual relay outputs and alarm inputs create a self-contained hub suitable for small-to-medium properties. Larger deployments (20+ doors, complex credential types) should integrate with a dedicated access control panel; the DS-KH6320Y-WTE2 works as an intelligent intercom front-end in that topology.
Frequently Asked Questions
Q: Can the DS-KH6320Y-WTE2 operate without Wi-Fi, using only two-wire wired IP?
A: Yes. The two-wire IP interface is the primary connectivity path. Wi-Fi is optional — disable it if wired Ethernet or two-wire delivery suffices. Two-wire is the recommended path for reliability.
Q: What size door strike or magnetic lock can the relay outputs control?
A: The relay is rated 30 VDC, 0.3 A maximum. Standard 12 VDC strike locks (~0.15 A) work directly. Larger magnets or 24 VDC solenoid coils require an external relay module rated for that load.
Q: Does the DS-KH6320Y-WTE2 support integration with Milestone XProtect or other third-party VMS platforms?
A: RTSP and SIP protocols enable ONVIF-compatible camera streams and SIP phone integration. Third-party VMS platforms that support RTSP and SIP will ingest video and call signaling. Check your VMS documentation for explicit DS-KH6320Y-WTE2 compatibility or request a test integration before final purchase.
Q: What happens if the microSD card is full?
A: The device falls back to 2 MB of reserved internal RAM for storing the oldest 200 pictures and 200 alarm records. Once internal storage is exhausted, older events overwrite. For continuous logging beyond these limits, integrate a network video recorder or cloud storage backend.
Q: Is the DS-KH6320Y-WTE2 suitable for outdoor wall mounting?
A: No. Operating range is -10 °C to 50 °C and 10–90% humidity — typical indoor climates. Direct sunlight, rain, and sub-zero conditions will degrade the touch screen and internal components. Use an outdoor intercom station (separate SKU) for exterior entry points.
Q: Can I use the RS-485 port to integrate legacy door access systems?
A: Yes, the 1-channel RS-485 interface supports legacy Wiegand or proprietary access protocols. Consult the device datasheet or Hikvision integration support for specific protocol support and wiring.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KH6320Y-WTE2 distinguishes itself through its two-wire architecture and embedded relay control, which substantially reduce installation labor in retrofit scenarios where existing building wiring can be leveraged. In my experience, the combination of local storage via microSD card, cloud-capable SIP/RTSP protocols, and dual relay outputs creates a flexible intercom hub suitable for both legacy building systems and modern IP-based networks. The 128 MB RAM and embedded Linux processor handle real-time video decode and multi-device coordination without noticeable latency, even when managing 16 cameras and concurrent doorphone calls.
Technical Highlights:
- Two-wire power and data delivery: Operates via Hikvision KAD704Y or KAD706Y distributors at ≤ 4 W — meaningful labor savings in retrofit multifamily buildings where pulling new power cable is cost-prohibitive. Existing two-conductor runs (Cat3, older twisted pair) often suffice.
- Dual relay outputs with 8-channel alarm inputs: Wire door strikes (30 VDC, 0.3 A per relay), solenoid locks, and external alarm systems directly without intermediary controllers. Configurable automation rules fire relays or SIP alerts based on sensor events — useful for unattended entry points and after-hours access logging.
- 16 camera + 17 doorphone capacity: Scale to large apartment complexes or office parks without additional gateways. RTSP and SIP protocols mean you can mix Hikvision cameras with third-party IP endpoints, reducing vendor lock-in.
- Local microSD storage (up to 128 GB) plus 2 MB internal RAM: Captures 200 pictures and 200 alarm events on removable storage without cloud dependency. Critical for sites with unreliable internet or privacy-sensitive deployments where cloud transmission is restricted.
Deployment Considerations:
- Relay amperage: The 0.3 A per relay limit is a constraint for heavy-duty magnets or high-impedance loads. If your door hardware draws more than 0.15–0.2 A at the rated voltage, plan for an external relay module. Standard 12 VDC strike locks work inline; 24 VDC solenoids typically require external switching.
- Wi-Fi is optional, not required: While 802.11b/g/n is available, wired Ethernet (via two-wire or direct IP) is strongly preferred. Wi-Fi introduces latency variance and potential interference in dense RF environments — not ideal for real-time call handling or consistent alarm response.
- Outdoor use not supported: Operating range -10 °C to 50 °C and 10–90% humidity exclude unheated basements, loading docks exposed to weather, and outdoor entries. Plan for a dedicated outdoor intercom if you need wide temperature tolerance or IP67 weather resistance.
The DS-KH6320Y-WTE2 is well-suited for apartment complexes, office building entry lobbies, and hospitality properties where you want a single intercom hub to route calls, view cameras, and trigger door access without managing a separate VMS or access control panel. If your building already has a professional access control system (HID, Salto, etc.), treat this as an intelligent intercom front-end rather than a replacement — SIP integration to your security desk is the primary value-add.
