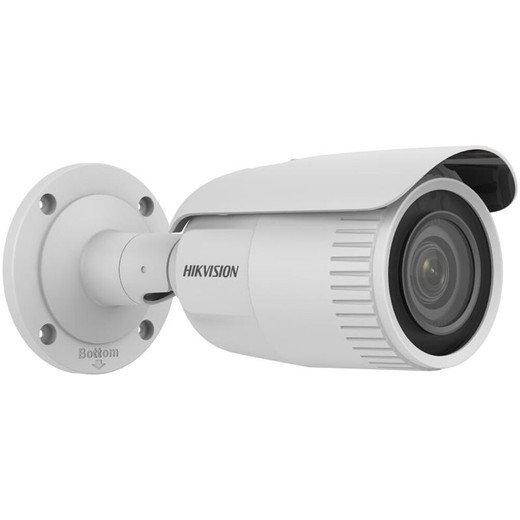

Hikvision DS-2CD1643G2-IZS 4MP Starlight WDR Outdoor PoE Bullet IP Camera

Hikvision DS-2CD1643G2-IZS 4MP Starlight WDR Outdoor PoE Bullet IP Camera

The Hikvision DS-2CD1643G2-IZS delivers professional-grade 4MP surveillance in a compact bullet form factor, engineered for demanding outdoor environments. This PoE-powered camera combines high-resolution imaging with intelligent detection capabilities, making it ideal for perimeter security, commercial properties, and critical infrastructure monitoring. Its motorized varifocal lens and Starlight technology enable adaptable coverage and exceptional low-light performance across diverse deployment scenarios.

Key Features

• 4MP resolution with 1/3" Progressive Scan CMOS sensor capturing 2560 × 1440 at 20fps
• Motorized varifocal lens (2.8–12mm) with horizontal FOV spanning 95.9° to 29.2°
• Starlight WDR technology: 120 dB wide dynamic range with 0.005 Lux color capability
• Smart IR with 50m range and 850nm wavelength for seamless day/night switching
• Human and vehicle detection with AI-powered false alarm reduction
• H.265+/H.265/H.264+/H.264 video compression for optimized bandwidth
• IP67-rated vandal-resistant housing for outdoor durability
• PoE 802.3af Class 3 power delivery (max 12.9W)
• Integrated microSD card slot supporting up to 256GB local storage
• Full-duplex audio support with environmental noise filtering

Technical Specifications

The camera's 1/3" sensor and F1.6 fixed aperture maximize light gathering, critical for ultra-low-light scenarios where color imaging drops to 0.005 Lux. Its intelligent shutter (1/3s to 1/100,000s) adapts to rapidly changing conditions. The 120 dB WDR engine processes simultaneous highlights and shadows, eliminating washout in backlit scenes. Video encoding flexibility includes H.265+ for storage efficiency alongside H.264 for broad compatibility. The 6-channel simultaneous live view capability supports multi-user monitoring via iVMS-4200 or Hik-Connect clients.

Connectivity and Integration

Standard Ethernet connectivity includes RJ45 10/100M auto-sensing, supporting TCP/IP, RTSP, ONVIF (Profile S/G/T), and ISAPI protocols. The camera accommodates up to 32 user accounts across three privilege levels with WSSE/digest authentication. Motion detection specifically triggers on human and vehicle targets, reducing nuisance alarms in busy outdoor areas. Alarm linkage options include FTP upload, email notification, recording initiation, and relay activation.

Applications

Ideal deployments include warehouse perimeters, parking facilities, building entrances, retail forecourts, and transportation hubs. The motorized lens enables single-camera coverage of variable distances—from wide-angle situational awareness to telephoto identification. IR-supplemented night vision and IP67 weatherproofing ensure 24/7 operation in rain, dust, and temperature extremes (-30°C to 60°C).

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2CD1643G2-IZS positions itself as a mid-range outdoor workhorse balancing resolution, smart detection, and form factor. Its Starlight WDR approach—combining ultra-low-light sensitivity with aggressive dynamic range processing—outperforms basic IR-only designs in mixed ambient/supplemental lighting. The motorized 2.8–12mm lens eliminates lens-swap logistics.

H.265+ encoding reduces bandwidth 30–40% versus H.264 without visible quality loss, critical for multi-camera deployments on constrained networks. The 50m IR range and 120 dB WDR handle typical outdoor scenarios effectively, though extreme backlight or fog may challenge visibility. PoE Class 3 operation fits within standard 30W budget switches, simplifying infrastructure.

Human/vehicle detection validity depends on tuning and scene context—performance excels with profile views in moderate congestion but may falter on extreme angles or occlusion. Recommended for integrators seeking a feature-rich, low-maintenance outdoor platform without premium thermal imaging.
