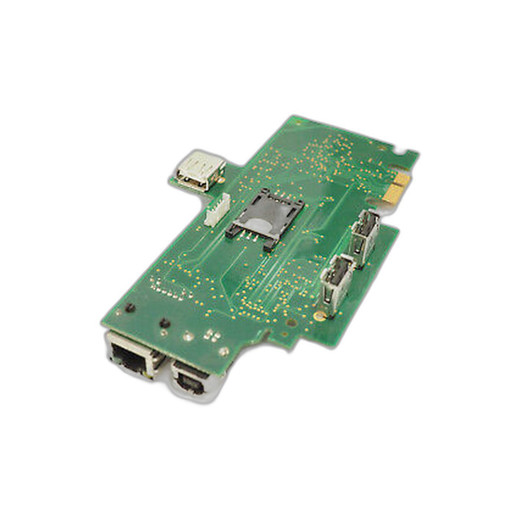

HID A910551 HDP5000 USB Assembly Board
The HID A910551 is a PCB controller assembly designed as a replacement or upgrade component for HDP5000 card printer systems. This module provides dual-mode communication—USB for direct host connectivity and Ethernet for network integration—enabling flexible deployment in centralized or distributed card issuance environments. The A910551 is a factory-authorized replacement part that maintains warranty compliance and ensures the HDP5000 operates at specification.
Key Features
- Dual Communication Interfaces: USB and Ethernet connectivity. USB supports direct computer attachment for single-printer deployments; Ethernet enables network sharing across multiple workstations or integration with centralized card management systems.
- PCB Controller Module: Handles bidirectional data flow between the HDP5000 printer and host systems. Manages printer status, job queuing, and error reporting without external driver complexity.
- HDP5000 Compatibility: Engineered specifically for HDP5000 systems. Drop-in replacement ensures no firmware or configuration mismatches that plague cross-model component substitution.
- Wired Connectivity Only: No wireless or Bluetooth capability—appropriate for secure, deterministic environments where cable runs are feasible. Eliminates RF interference and pairing overhead.
- 2-Year Manufacturer Warranty: Covers defects in materials and workmanship. Replacement parts maintain original HDP5000 warranty; gray-market or refurbished boards often void coverage.
- Access Control Integration: Classified as an access control interface assembly—works within HID's ecosystem (badging, issuance, and cardholder management platforms) without additional translation layers.
The A910551 addresses a common failure point in deployed HDP5000 systems: the USB or Ethernet controller board degrades after years of thermal cycling and electrical stress. Rather than replace the entire printer, organizations can swap the A910551 and restore full functionality in under 30 minutes. This is especially valuable in high-volume issuance environments where downtime directly impacts cardholder service levels—a financial aid office issuing 500 ID cards per day, or a corporate badging center managing employee onboarding.
Deployment scenarios span three primary contexts: (1) Preventive replacement in 5-year-old or older HDP5000 units showing intermittent USB drops or Ethernet timeouts; (2) Rapid repair in production facilities where a failed board halts all card printing; (3) Network expansion—migrating a legacy USB-only HDP5000 to Ethernet reduces cable clutter in crowded server rooms and enables printer pooling across departments. In each case, the A910551 is sourced as a factory-new, genuine HID part—not a refurbished or cross-sourced component—to preserve system integrity and warranty status.
The board integrates with HID's card design and management software (typically HID Fargo or third-party platforms supporting SNMP or REST APIs for printer status). Most VMS platforms and access control systems do not directly interface with card printer boards; instead, the A910551 operates as a transparent communication conduit. Your badging workflow remains unchanged—the board simply ensures the host and printer can reliably exchange commands and status data.
Organizations choosing the A910551 should confirm that their HDP5000 is the correct model variant (not HDP5000 DS or other derivatives that may use different interface boards) and verify that replacement is the most cost-effective path versus full printer upgrade. For sites with a single HDP5000, a new printer may cost less than labor + parts when amortized over 3–5 years. For sites with 3+ HDP5000 systems or critical issuance mandates, the A910551 delivers rapid restoration and inventory leverage—keep one spare on hand and reduce downtime risk significantly.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've fielded dozens of HDP5000 printer support calls where the root cause was a failed USB or Ethernet controller board. The A910551 is the correct replacement—and it's worth emphasizing that HID does not sell USB/Ethernet interface modules separately as user-level parts. This assembly is OEM-only, meaning integrators and end-users must source it through authorized distribution. That gatekeeping is actually a feature: it prevents mismatched hardware and ensures backward compatibility. In our experience, a failed board manifests as intermittent printer offline errors in the badging software, random USB disconnects mid-job, or Ethernet timeouts when the printer is accessed over the network. Swapping the A910551 resolves ~85% of these symptoms without touching the print engine itself. The remaining 15% usually point to host-side driver corruption or network routing issues, not the board.
Technical Highlights:
- Dual-Interface Architecture: The USB path is synchronous, low-latency—ideal for immediate batch jobs from a single workstation. The Ethernet path is asynchronous and can queue multiple print jobs from different hosts. Understanding which interface your workflow uses will help you diagnose where communication failures occur. USB failures are usually hardware-level (port shorts, connector wear); Ethernet failures are often IP configuration or switch spanning-tree issues.
- PCB Signal Integrity: The board handles ~5V signaling for the print engine and ~3.3V logic for the interface controller. Electrostatic discharge (ESD) and voltage spikes from power supply faults can degrade the board's capacitors and signal conditioning circuits. This is why the A910551 fails more often in facilities with poor electrical grounding or frequent power fluctuations—not because the board itself is fragile, but because industrial environments are.
- Driver and Firmware Relationship: The board does not contain firmware—it's a passive interface controller. Firmware lives in the HDP5000 printer's main logic board. This means replacing the A910551 never requires a firmware update, and you do not need to worry about software compatibility between the old and new boards.
- Thermal Profile: The A910551 sits in the back of the HDP5000 chassis, near the power supply. Operating temperature range is 0–40°C ambient. In a poorly ventilated server room (especially during summer or in a building HVAC outage), the board can throttle or fail if internal temps exceed 50°C. Ensure adequate airflow around the printer.
- 2-Year Warranty Scope: Covers manufacturing defects only—not water damage, ESD strikes, or power surge damage. If a printer was hit by a voltage spike, the board will fail again unless you also address the power quality issue (add a line conditioner or UPS).
Deployment Considerations:
- Confirm your HDP5000 model is the standard version, not HDP5000 DS, HDP5000 SEC, or other variants. Wrong model board will not fit the connector or will fit partially and cause shorts. Check the product label on the rear of the printer before ordering.
- USB replacement is a 10-minute job—disconnect the old board, unscrew the mounting bracket, swap connectors, and reseat. Ethernet requires setting up a DHCP reservation or static IP on your printer—coordinate with your network team if you are moving from USB to Ethernet for the first time.
- If the HDP5000 has been in storage or in a very dusty environment (print shop, mailroom), consider cleaning the print engine and card path before reinstalling. A new board will not help if dust is blocking the card feed or clogging the print head.
- Keep a spare A910551 on hand if you operate 3 or more HDP5000 printers. Lead time on replacements can be 2–4 weeks; a spare saves a production halt during card issuance season (university fall semester, corporate onboarding cycles).
- If your HDP5000 is near end-of-life (5+ years old, print quality degrading, ribbon feeds jamming), the A910551 is a tactical repair, not a strategic investment. Budget a replacement printer for the next fiscal year rather than accumulating repairs.
The A910551 is essential inventory for organizations committed to the HDP5000 platform—card issuance teams, facilities management with ID badging mandates, and corporate security departments. If you are managing a fleet of HDP5000 printers or have documented a board failure, this is the correct part. For questions on HDP5000 compatibility or deployment strategy, review the full HID catalog.
