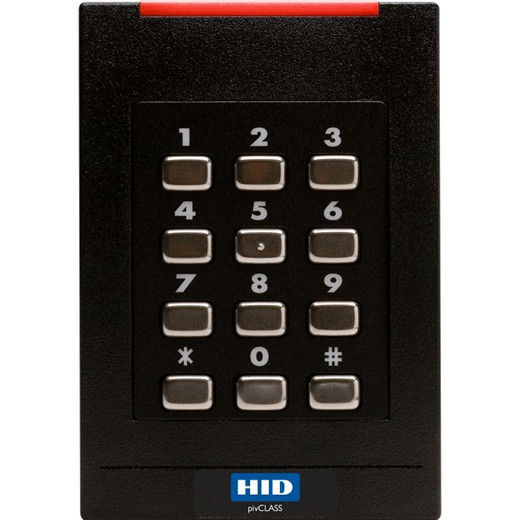

HID 921PHRNEK0015D RPK40-H PIVCLASS SE Reader Module
Overview
The HID 921PHRNEK0015D is a multi-technology reader module engineered for enterprise access control integration. Built on the RPK40-H platform with PIVCLASS support, this reader accommodates both low-frequency and high-frequency credential standards in a single form factor. The module delivers configurable authentication across standard LF, HF, SIO, SEOS, FIPS, and CAK credential types, making it suitable for deployments requiring flexibility across multiple credential ecosystems.
Key Features
- Multi-Credential Support: Reads LF STD (low-frequency standard), HF STD (high-frequency standard), SIO, SEOS, FIPS, and CAK credential types in a single reader module
- PIVCLASS Certified: Compliant with PIVCLASS SE certification for government and enterprise identity verification
- 485FDX Communication: Full-duplex RS-485 communication protocol for reliable two-way serial data transmission over extended distances
- FIPS 75-Bit Security: FIPS-approved 75-bit encryption and key derivation for enhanced credential data protection
- Programmable Interface: Open-collector output configuration with programmable 4-bit message format and integrated key processing function (KPF)
- Tamper Protection: Optional tamper detection circuitry to alert on unauthorized access attempts or enclosure breaches
- LED and Buzzer Customization: LED and buzzer outputs configurable off by default; can be enabled per deployment requirements
- Flash Memory Control: Flash output disabled by default; IPM (Intelligent Power Management) disabled for standard operation
- Single-Key Forward Buffer: One-key forward read buffering (BFFRD 1 KEY) for rapid successive credential reads without data loss
- No Parity Checking: Simplified data frame without parity bit overhead for faster message processing
- Black Enclosure: Standard black finish housing for discrete wall or surface mounting in secure entry points
Integration and Compatibility
The 921PHRNEK0015D integrates seamlessly into access control systems using RS-485 serial communication. The open-collector output and programmable 4-bit message format enable direct wiring to access control panels, door controllers, and networked access management platforms. Deployments supporting PIVCLASS SE credentials benefit from enterprise-grade identity verification tied directly to federal or organizational credential stores. The reader's multi-technology credential acceptance reduces installation complexity in mixed-credential environments, where both legacy LF systems and modern high-frequency HF credentials coexist.
The optional tamper-detection capability provides physical security reporting, allowing system administrators to monitor reader integrity and log breach events. Configuration of LED, buzzer, flash, and IPM features allows IT teams to adapt the reader behavior to facility requirements without hardware replacement.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HID 921PHRNEK0015D for enterprise access control rollouts where credential diversity and FIPS compliance are non-negotiable. This reader module handles the credential translation layer that most integrators struggle with—bridging legacy LF systems into PIVCLASS SE environments without dual-reader installations.
Technical Highlights:
- FIPS 75-Bit Encryption: The 75-bit key derivation meets federal security thresholds for PIV and PIVCLASS deployments, ensuring credential data cannot be cloned or intercepted without cryptographic material.
- 485FDX Full-Duplex Serial: Two-way RS-485 communication eliminates polling delays and allows the reader to report real-time tamper events, failed reads, or access attempts back to the controller.
- Multi-Credential Acceptance: LF STD, HF STD, SIO, SEOS, FIPS, and CAK support means a single installation point handles credential migrations without hardware swaps.
Deployment Considerations:
- RS-485 cabling must be properly terminated and shielded in electrically noisy environments (mechanical spaces, electrical rooms, RF-dense areas) to maintain signal integrity over distance.
- Optional tamper detection should be enabled in high-security zones (server rooms, data centers, executive areas) and logged centrally; disable in publicly accessible areas to avoid false alarms.
- Test the 4-bit message format compatibility with your access control panel before full deployment; not all legacy controllers parse the same frame structure.
The 921PHRNEK0015D is a solid choice for integrators managing credential consolidation. Its multi-tech flexibility and FIPS-certified encryption eliminate the false economy of buying separate LF and HF readers. Specify it where credential compliance and future-proofing matter.
