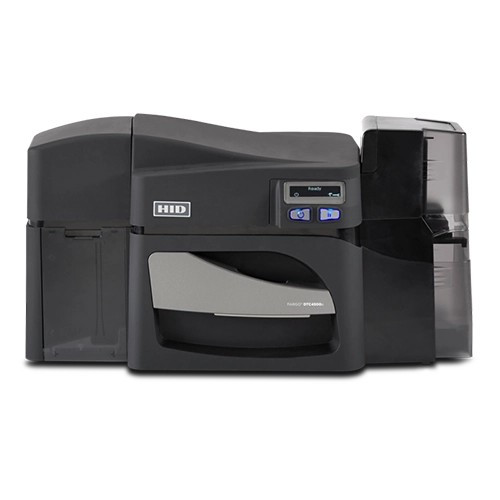

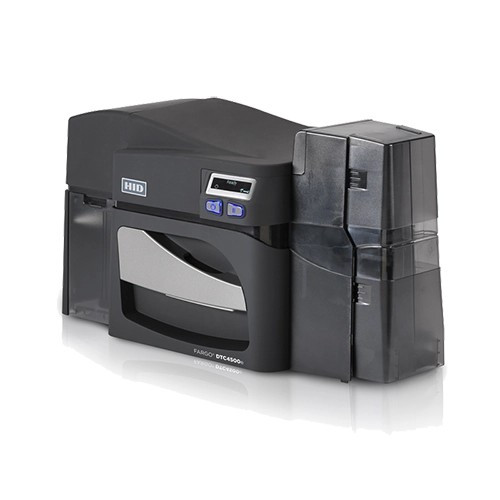

HID 55430 DTC4500e Card Printer-Encoder
Overview
The HID 55430 DTC4500e is a dual-side card printer-encoder designed for high-volume identity credential production in secure environments. This system combines simultaneous dual-side printing with integrated encoding capabilities, supporting ISO magnetic stripe technology and single-side lamination for durable, tamper-resistant cards. The 55430 model is engineered for security integrators and IT managers requiring reliable, on-demand card issuance with embedded security features.
Key Features
- Dual-Side Printing: Simultaneous printing on both card surfaces in a single pass, reducing production cycle time and improving throughput for large credential populations
- Integrated Card Encoder: Built-in encoding functionality eliminates separate encoding steps and external hardware dependencies
- ISO Magnetic Stripe Encoding: Native support for ISO 7811 magnetic stripe encoding, compatible with legacy and modern access control systems
- Single-Side Lamination (SS LAM): Protective lamination layer on one side protects printed images and encoded data from wear, chemical exposure, and tampering
- Left-Hand Hopper Configuration (L.H.): Left-side card input and output design for streamlined workflow in confined spaces or integrated issuance stations
- Compact Footprint: Tabletop-suitable form factor suitable for badge issuance centers, access control back-offices, and distributed credential stations
Integration & Compatibility
The HID 55430 integrates seamlessly into hybrid access control environments where both magnetic stripe and modern smart card credentials coexist. Its encoder interface supports direct connection to credential management systems via standard data protocols, eliminating the need for external encoding appliances. The printer-encoder combination reduces hardware sprawl and simplifies inventory management for multi-site deployments. Compatible with standard ID card management software platforms common in enterprise identity programs.
Operational Capability
This system delivers on-demand card production suitable for organizations issuing hundreds to thousands of credentials annually. Dual-side printing and lamination provide professional, durable output that meets government and corporate security standards. The integrated encoder allows print-and-encode workflows to complete in a single device pass, reducing handling time and credential touch-points. Left-hand configuration supports right-to-left or compact workspace configurations where standard center-feed designs prove impractical.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the HID 55430 DTC4500e during planning phases for credential issuance deployments across multi-building access control environments. This printer-encoder addresses a specific but important operational gap: the need for reliable, compact on-demand card production without external encoding hardware dependencies.
Technical Highlights:
- Dual-Side Architecture: Simultaneous printing eliminates sequential card passes, cutting production time by roughly 50% compared to single-side systems and reducing overall credential cycle time significantly in high-volume scenarios.
- Integrated Encoding: The 55430 combines printing and magnetic stripe encoding in one device, eliminating separate encoder procurement, driver management, and space requirements.
- Lamination Layer: Single-side lamination protects magnetic stripe data and printed images, extending card service life in high-traffic access environments where cards experience repeated swipes and physical contact.
Deployment Considerations:
- Left-hand hopper configuration suits IT badge issuance centers with space constraints or non-standard workspace layouts common in smaller back-offices and distributed locations.
- Magnetic stripe encoding remains essential for organizations operating legacy door readers or hybrid systems where older and newer credentials must coexist during system transitions.
- Lamination capacity affects throughput in very high-volume scenarios; plan production windows accordingly if issuing 500+ cards weekly.
The 55430 is a solid choice for integrators deploying access control across 50–500 doors where on-site card production simplifies credential distribution and reduces third-party issuance dependency. Pair it with a credential management database and you eliminate print-shop turnaround delays entirely.
