HID 55020 Fargo DTC4500e Single Side USB ETH Printer

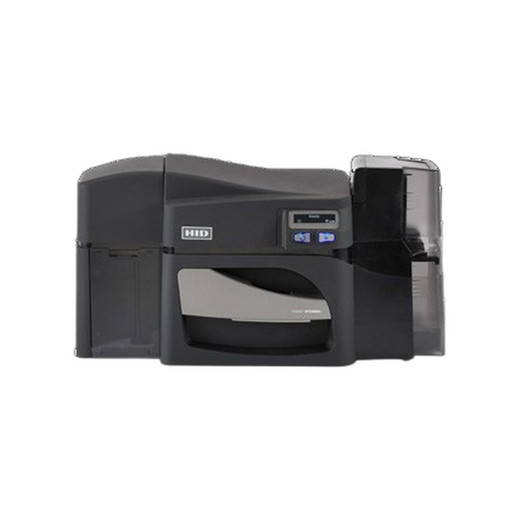

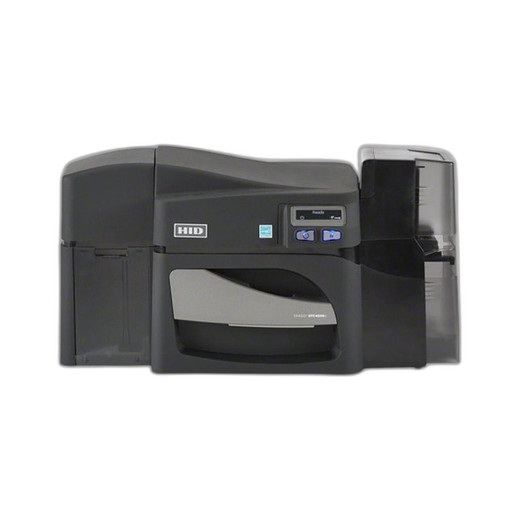

HID 55020 Fargo DTC4500e Single-Side Card Printer-Encoder

The HID 55020 is a single-side dye sublimation and thermal resin card printer-encoder designed for mid-to-high-volume credential issuance in government, corporate, and healthcare access control programs. This model combines 150 cards-per-hour full-color print speed with integrated magnetic stripe, contact, and contactless encoding — eliminating the need for separate encoding equipment and reducing floor space in credential production workflows. Dual USB and Ethernet connectivity supports both standalone issuance stations and networked multi-user deployments. Locking hoppers and password-protected device settings ensure card inventory control and audit compliance in regulated environments.

Key Features

• Print Speed: 150 full-color cards per hour using dye sublimation and thermal resin technology. Supports sustained production runs without thermal throttling on typical 8-hour credential issuance shifts.
• Card Format Support: CR-79 (3.303" × 2.051") and CR-80 (3.37" × 2.13") standard formats. Single-side printing optimized for front-facing badging and visual ID design.
• Multi-Protocol Encoding: Magnetic stripe, contact (chip), and contactless (RFID/NFC) encoding integrated into the print engine. One-pass encoding eliminates secondary encoding station capital and operational overhead.
• Dual Connectivity: USB and Ethernet ports enable deployment as standalone workstation printer or network-shared issuance node across multiple departments or facilities.
• Secure Card Supply: Locking input and output hoppers with key-controlled access restrict unauthorized card removal. Provides audit trail capability for compliance-sensitive badge programs (healthcare, federal, utilities).
• Dye Sublimation + Thermal Resin: Hybrid print technology delivers photographic-quality color with option to overlay thermal resin for security features (holographic accents, microprinting regions). Durable output resists fading and wear on high-use credentials.
• Password Security: Device-level access control limits configuration changes to authorized personnel. Prevents unauthorized driver installation or settings tampering.
• 2-Year Manufacturer Warranty: Covers parts and labor, with depot repair available through HID service centers.

The 55020 is built for environments where card inventory accountability and encoding flexibility are mandatory. A typical 300-person corporate access control refresh — mixing employee badges, contractor temporary credentials, and parking passes — runs at full throughput in 2-3 workdays with a single unit, eliminating outsourced card vendor lead times and cost-per-card mark-ups. The integrated encoder reduces the total equipment footprint compared to purchasing a separate magnetic stripe writer or RFID encoder.

Credential issuance workflows often span multiple encoding standards: legacy magnetic stripe for door readers, ISO 14443A contact chips for multi-function badges, and 125 kHz contactless for parking or perimeter gates. The 55020 handles all three in a single pass without operator intervention — just swap the encoding ribbon cassette between shifts if switching encoding types. This modularity makes the printer adaptable to phased access control rollouts where not all readers support the same technology initially.

Integration with identity management platforms (Badging software, Active Directory badge-printing plugins, visitor management systems) is straightforward via standard Windows printer drivers (USB) or network printing protocol (Ethernet). Third-party ISV platforms like CardBrowser, DCC Identity, and Matica's PrintFactory support batch production workflows with mail-merge style data import from HR or compliance databases, reducing manual card-by-card entry and limiting human error on critical credentials.

Network deployment scenarios benefit from Ethernet: multiple issuance stations across a campus can queue jobs to the same 55020 via a standard network queue, reducing per-printer capex. The hopper capacity (typical 100-card input, 100-card output) balances production batch size against refill frequency — sufficient for a day's hiring or contractor onboarding without constant attention.

Single-side printing keeps consumables costs lower than dual-side models (only one color ribbon per card, half the thermal resin if used). For programs where back-side encoding or printing is not required (most access control badges rely on front-side visual ID and front-side chip/stripe), the 55020 eliminates waste and improves per-card economics on large issuance volumes. A 2-year warranty covers print head, encoding head, and transport mechanism — the highest-wear components.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the HID 55020 in environments ranging from hospital badge issuance centers (200+ daily credentials) to federal facility contractor onboarding (high turnover, strict encoding audit trails). The differentiator versus competitors like the Zebra ZC350 or Entrust Datacard SD460 is the integrated multi-protocol encoder — it genuinely eliminates a second piece of equipment and the operational friction of batching cards through two stations. On a 500-person annual credential refresh with 3 encoding types (magnetic, contact, contactless), that's 500+ fewer card handling steps, lower risk of encoding mismatch, and measurable time savings. The thermal resin overlay option is underused but valuable for high-security credentials in environments where microprinting or security features are mandated by policy — it's a single consumable swap, not a hardware change.

Technical Highlights:

• 150 cards/hour sustained throughput: Achievable on 8-hour production days without thermal throttling. At 200+ cards per shift, the 55020 clears typical monthly onboarding batches in a single operator session, reducing credential issuance turnaround from days to hours and freeing IT staff from manual badge runner duties.
• Dye sublimation + thermal resin hybrid: Dye-sub delivers vivid photo-quality color (employee photos, corporate logos). Thermal resin overlay adds tamper-evident features, microtext, or security holograms in discrete print zones without slowing throughput or requiring a second pass.
• Magnetic stripe + contact + contactless in one encoder: No switching equipment, no ribbon cassette complexity per encoding type. All three protocols share the same print engine, reducing mechanical failure points and maintenance intervals versus stacked single-function encoders.
• Locking hoppers with key access control: Critical for compliance-sensitive programs (HIPAA healthcare IDs, federal contractor badges, utilities). Audit logs show which operator cleared which batch; physical key restriction prevents unauthorized card removal and inventory shrinkage in high-turnover environments.
• USB + Ethernet dual connectivity: USB powers standalone workstations (hiring offices, HR departments). Ethernet enables centralized issuance centers where multiple departments queue batch jobs to a single shared printer, cutting per-location capex by 60-70% on redundant hardware.

Deployment Considerations:

• Hopper capacity is 100-card input, 100-card output — manageable for daily issuance but requires refill during high-volume weeks (500+ cards). Plan for mid-shift reload on onboarding days.
• Single-side printing limits back-side encoding or security printing — if your access control policy requires both sides, the Datacard SD660 or Matica ER1 dual-side models are necessary, not optional.
• Magnetic stripe encoding is legacy but still required in facilities with pre-2010 door readers. Test reader compatibility before full deployment; some older 125 kHz systems have encoding pitch tolerances that conflict with newer card stock dimensions.
• Windows driver support is mature, but Ethernet print queue configuration requires basic network admin skill (IP assignment, print server queuing). Standalone USB deployment is simpler but limits multi-user scalability.
• Thermal resin overlay consumables cost 2-3× more per card than dye-sub only. Reserve this feature for high-security credential tiers; standard employee badges rarely justify the cost.

The HID 55020 is the right choice for mid-sized organizations consolidating credential issuance into a single production center or for enterprise campuses where 150 cph throughput and multi-protocol flexibility eliminate external badging vendors. If your program is 50 cards/month or fewer, a lower-cost consumer-grade printer may suffice; if you require dual-side printing or true-color (CMYK) photo resin, step up to the dual-side class. For everything in between — access control, visitor badges, contractor credentials, and healthcare IDs — the 55020 balances speed, encoding flexibility, and secure inventory control. See the HID catalog for other card printers and encoding peripherals.
