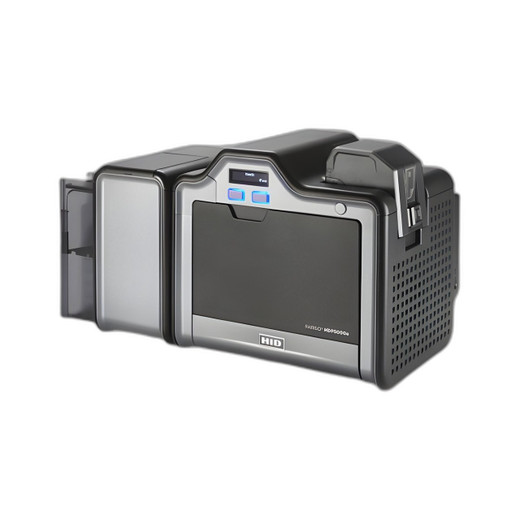

HID 096609 Single-Side Card Printer with Integrated 5127 SI Smart Card Encoder

Overview

The HID 096609 HDP5000e is a single-side card printer engineered for organizations requiring integrated credential encoding and printing in a compact footprint. This base model combines HDP5000e printing capability with the embedded OMNIKEY 5127 SI-USB encoder, enabling simultaneous encoding and personalization of multiple credential technologies on a single platform. The 096609 is designed specifically for access control environments where HID Prox, iCLASS SE, MIFARE, DESFire, and Seos smart card credentials must be produced with minimal workflow disruption. The integrated 5127 SI encoder eliminates the need for external encoding hardware while maintaining full protocol compatibility across enterprise-grade credential formats.

Key Features

• Single-Side Printing: Streamlined card production with single-pass printing capability, reducing cycle time and simplifying operator workflow
• Integrated OMNIKEY 5127 SI-USB Encoder: On-board smart card encoding eliminates external encoder dependency and reduces system footprint
• HID Prox Encoding Support: Native support for HID Proximity credentials, maintaining compatibility with legacy and current HID access control deployments
• iCLASS SE Encoding: Full support for HID's iCLASS SE encrypted smart card format, providing enhanced security for credential issuance and validation
• MIFARE and DESFire Encoding: Dual NXP smart card protocol support enables multi-technology credential programs within a single printer ecosystem
• Seos Smart Card Support: Compatible with HID's Seos mobile and card-based smart credentials, supporting modern hybrid issuance models
• USB Connectivity: Direct USB interface to host issuance system via OMNIKEY 5127 SI-USB encoder, simplifying integration and reducing external connectivity requirements
• Base Model Configuration: Entry-level HDP5000e platform suitable for departments or branch offices with moderate credential volume

Integration & Compatibility

The HID 096609 operates as a standalone encoder-printer combination, with the 5127 SI encoder communicating directly via USB to your issuance software platform. The integrated architecture is not a drop-in replacement for legacy OMNIKEY 5121 or 5125 encoders; system integration must account for the HDP5000e's specific driver requirements and the 5127 SI encoder's protocol handling. Organizations migrating from older HID encoder models should verify issuance software compatibility with the 5127 SI-USB encoder prior to deployment. The printer accepts standard CR80 PVC, polyester, and composite cards. Encoding operations are compatible with standard HID card stock and credential blanks across all supported technologies.

This configuration is optimal for mid-sized access control programs where credential diversity (Prox, iCLASS SE, MIFARE/DESFire, and Seos) must be accommodated within a single issuance station. The single-side printing design is suitable for facilities where dual-side printing is not operationally required.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the HID 096609 during several enterprise access control deployments where multi-technology credential issuance was required without dedicated encoding infrastructure. The integrated 5127 SI encoder embedded in this HDP5000e model simplifies the physical footprint significantly compared to external encoder configurations, but the integration does demand careful attention to software compatibility and workflow design.

Technical Highlights:

• Integrated Encoder: The 096609 combines the HDP5000e printer with OMNIKEY 5127 SI-USB encoding in a single unit, eliminating separate hardware and reducing interconnect complexity
• Multi-Protocol Support: Support for HID Prox, iCLASS SE, MIFARE/DESFire, and Seos ensures the printer accommodates diverse credential ecosystems without requiring multiple issuance stations
• USB Architecture: Direct USB connectivity to issuance software via the 5127 SI encoder provides straightforward integration into most modern access control management platforms

Deployment Considerations:

• Verify that your issuance software explicitly supports the OMNIKEY 5127 SI-USB encoder; this is not a backward-compatible replacement for 5121 or 5125 encoders
• Allocate adequate testing time during pilot deployment to validate encoding performance across all credential types, particularly when transitioning from external encoder setups
• Single-side printing is appropriate for standard access card issuance; if back-side printing becomes a requirement, the HDP5000e is not the appropriate platform

The 096609 is well-suited for mid-market access control programs and distributed issuance operations where multi-technology support and compact footprint outweigh the need for high-volume throughput. Deployment is straightforward once encoder compatibility is confirmed with your existing credential management software.
