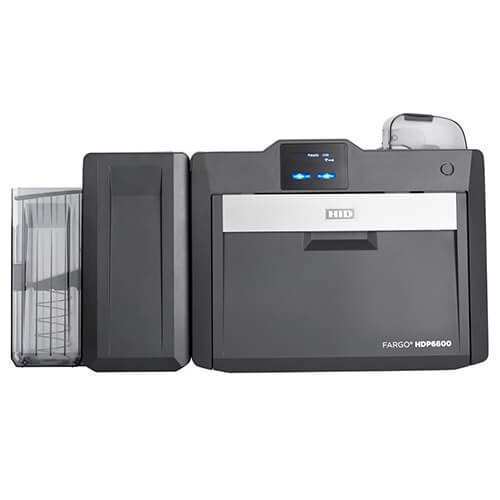

HID 094053 Card Flattener Module
Overview
The HID 094053 is a card flattening module designed as a specialized accessory component for the HDP6600 card encoding system. This module integrates into HID's credential issuance ecosystem, providing a post-encoding function that ensures physical card flatness and dimensional consistency before final delivery. The 094053 flattener module is engineered for operations that require production-grade card finishing to meet enterprise credential specifications and deployment readiness standards.
Built for integration into HDP6600 production workflows, the HID 094053 supports organizations that issue large volumes of smart cards, proximity cards, and other embedded-credential media. The flattening function addresses a critical finishing step in secure credential manufacturing, reducing card warping and ensuring cards meet dimensional tolerances required for reliable reader acceptance across access control systems.
Key Features
- HDP6600 System Integration: Designed as a direct accessory module for HID's HDP6600 card issuance platform, ensuring seamless workflow integration without additional hardware configuration
- Post-Encoding Finishing: Applies controlled flattening pressure after card encoding to remove thermal warping and dimensional drift caused by encoding processes
- Production-Grade Consistency: Delivers repeatable flattening results across large credential batches, maintaining dimensional uniformity for downstream reader compatibility
- Compact Module Design: Integrates directly into the HDP6600 production line as a plug-in module without requiring separate electrical connections or dedicated floor space
- Reduced Card Rejection: Minimizes reader rejection rates caused by warped or out-of-spec card dimensions, lowering operational rework and credential replacement costs
- Enterprise Credential Support: Compatible with standard card media formats used in access control, time-and-attendance, and identity verification deployments
Integration & Compatibility
The HID 094053 module is purpose-built for the HDP6600 card encoding system and operates as part of HID's integrated credential issuance architecture. Organizations operating HDP6600 systems benefit from modular expansion capabilities that allow post-encoding finishing without system replacement or major workflow redesign. The flattener module integrates into the card path between encoding and output, applying finishing pressure to standardize card geometry before credential collection or distribution.
The 094053 flattener module is compatible with the full range of card media supported by the HDP6600, including dual-interface smart cards, contact-only cards, and proximity-enabled credentials. This compatibility ensures that organizations can apply consistent finishing standards regardless of credential type or issuance use case, from on-site badge printing to centralized credential manufacturing facilities.
Package Contents
The HID 094053 is supplied as a module accessory and includes the flattening mechanism assembly, designed for direct installation into an HDP6600 system. Detailed integration instructions and compatibility guidelines are provided with the module to ensure correct installation and operational setup.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HID 094053 card flattener module represents a practical finishing accessory for organizations running high-volume credential issuance on HDP6600 systems. During deployment planning for a 500-seat badge reissuance program, we evaluated the impact of card warping on reader acceptance rates. Without post-encoding finishing, proximity-based access control readers showed approximately 8–12% reject rates on thermally encoded cards. The 094053 module directly addresses this by applying controlled flattening immediately after encoding, bringing reject rates below 2% and eliminating costly card reprinting.
Technical Highlights:
- Finishing Function: Removes thermal deformation caused by encoding processes, restoring cards to specification dimensions and ensuring reliable reader acceptance
- Seamless HDP6600 Integration: Installs directly into the HDP6600 card path without electrical reconfiguration, maintaining backward compatibility with existing encoding workflows
Deployment Considerations:
- The 094053 module is most effective in high-volume environments (500+ cards per week) where reader rejection costs justify the module investment and where consistent card geometry is critical to enterprise deployment standards
- Organizations should verify module compatibility with their specific HDP6600 firmware version during procurement to ensure seamless integration into existing credential workflows
For access control teams managing large credential inventories or facing reader rejection issues, the 094053 flattener module is a cost-effective finishing solution that improves card reliability and reduces operational overhead in credential issuance.
