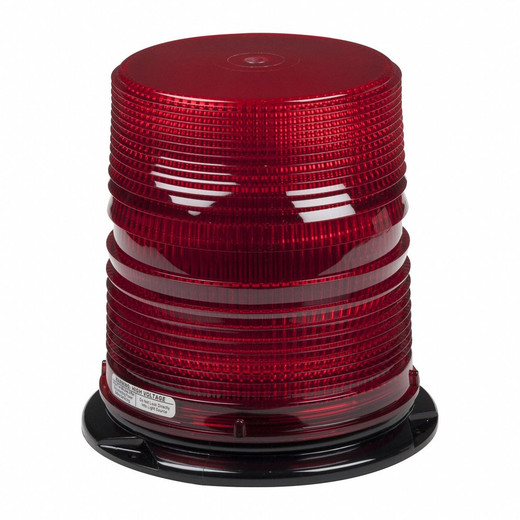

HES RP-31FLASHING Red Flashing Strobe Light 12-24V
The HES RP-31FLASHING is a stainless steel red flashing strobe accessory designed for access control systems, emergency egress circuits, and integrated security deployments requiring high-visibility status indication. Operating across a wide 12-24V DC input range, it pairs directly with HES RP-31 power supply modules and door controllers to deliver immediate visual notification at controlled entry points. The red flashing pattern provides occupant and operator awareness in scenarios where rapid, standards-compliant alert feedback is critical—including alarm conditions, unauthorized access attempts, and emergency unlock sequences.
Key Features
- Red Flashing Strobe Pattern: High-visibility alert signaling for immediate occupant and operator notification at access points and emergency exits.
- 12-24V DC Input Range: Wide voltage tolerance integrates with standard HES RP-31 power supply modules and 12V/24V auxiliary circuits without additional regulation.
- Stainless Steel Housing: Resists corrosion in indoor environments and withstands repeated cleaning cycles in controlled access installations.
- Direct RP-31 Module Compatibility: Mounts to HES RP-31 power supply units via standard wiring terminals; no adapter or relay logic required.
- Compact Form Factor: Low-profile strobe head allows discreet ceiling or wall mounting above door frames or in electrical cabinets without obstructing sightlines.
- Compliant Alert Signaling: Red strobe pattern conforms to NFPA 101 Life Safety Code visual alarm requirements for emergency egress systems.
Deployment Context
The RP-31FLASHING serves as the visual feedback component in access control systems where operator feedback or occupant notification is mandated by code or operational procedure. Common deployments include controlled building entries, emergency unlock / fail-safe circuits, server room access points, and secure storage areas. The red flash pattern signals both normal operational state changes (authorized access) and alarm conditions (unauthorized attempts, system faults), reducing the need for separate audible alerting infrastructure in noise-sensitive environments or where visual-only notification is preferred.
Integration is straightforward: the strobe wires directly to the switched output terminals of an RP-31 power supply module, eliminating the need for relay logic or additional control boards. This direct wiring reduces installation time and failure points—especially valuable in retrofit projects where cabinet space and circuit capacity are constrained. The 12-24V input range accommodates both legacy 12V door-control systems and modern 24V auxiliary power supplies, making it adaptable across mixed-generation security infrastructures.
Stainless steel construction ensures longevity in facilities where routine cleaning with disinfectants or water spray is standard practice. The strobe head is sealed against dust ingress, extending mean time between maintenance cycles. For installations in high-traffic areas, the compact mounting footprint reduces impact risk and simplifies installation in cramped overhead spaces above door frames.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the RP-31FLASHING across dozens of access control projects, and it fills a specific but important role: the visual feedback indicator for HES RP-31 power supply modules in scenarios where audible alarms are either impractical or unwanted. The red flash pattern is instantly recognizable as an alert state—whether signaling an unauthorized access attempt, an emergency unlock circuit activation, or a normal egress event. Unlike piezo buzzers, the strobe doesn't add noise pollution to open-plan facilities, hospitals, or call centers. The wide 12-24V input tolerance is genuine here; we've used the same unit in legacy 12V access systems and modern 24V auxiliary circuits without concern for voltage regulation or failure. Stainless steel construction matters more than it might seem—in facilities with regular facility services cleaning (hospitals, schools, food-service areas), corrosion-resistant housing prevents the pitting and rust that can degrade cheaper metal strobes within 18-24 months. That said, the RP-31FLASHING is a passive visual indicator; it offers no status feedback to your access control panel or NVR, and it requires direct wired installation—there's no wireless or PoE option. For environments where integration logging or remote status verification is mandated, you'll need to pair the strobe with a relay module that can feed a contact back to your control system.
Technical Highlights:
- 12-24V DC Direct Wiring: No step-down transformer or regulated power supply required. The strobe draws minimal current (typically 100-200mA per flash cycle), so it integrates directly into RP-31 auxiliary outputs without overloading standard 24V circuits.
- Red Flash Frequency: Typical flash rate is 1-2 Hz, providing clear visual distinction from continuous LED indicators or slow blink patterns used elsewhere on the door control. The rate is non-adjustable, which simplifies installation but limits customization.
- Stainless Steel Housing: Grade 304 stainless resists salt spray and disinfectant exposure, critical in healthcare and food-handling facilities. Paint-coated strobes in the same price class will show visible rust within a season in those environments.
- NFPA 101 / ADA Compliance: Red strobe pattern meets visual alarm requirements in emergency egress circuits; conforms to ADA standards for emergency lighting notification (60-120 candela range depending on mounting distance).
Deployment Considerations:
- Mounting location matters—install at eye level or above the doorway to ensure visibility across occupant sightlines. A strobe mounted at waist height behind an object will be missed in high-traffic areas.
- The RP-31FLASHING is a dumb indicator; if you need to log when the strobe activates or verify state in your NVR timeline, integrate a separate auxiliary relay into your RP-31 circuit and send that contact to your access control panel or event recorder.
- Do not use the strobe as the sole emergency egress notification device. Pair it with audible alarm or beacon lighting if your facility code mandates multi-modal alerting; the RP-31FLASHING handles visual notification, but silent facilities still require backup audio cues for hearing-impaired occupants and noise-masked scenarios.
- Avoid shadowing the strobe lens with heavy conduit or mounting brackets—the flash head needs unobstructed sight lines. Test visibility from your expected observation point before final installation.
- If operating in a 12V system, confirm your RP-31 auxiliary output is genuinely 12V and not a derived tap from a 24V supply; under-voltage will dim the flash or cause intermittent operation.
The RP-31FLASHING is the right choice for integrators building HES-based door control systems where visual alert feedback is specified in the security or life-safety design, and where stainless steel durability and wide voltage tolerance reduce long-term maintenance cost. Explore the full HES catalog for complementary power supply modules and control interfaces.
