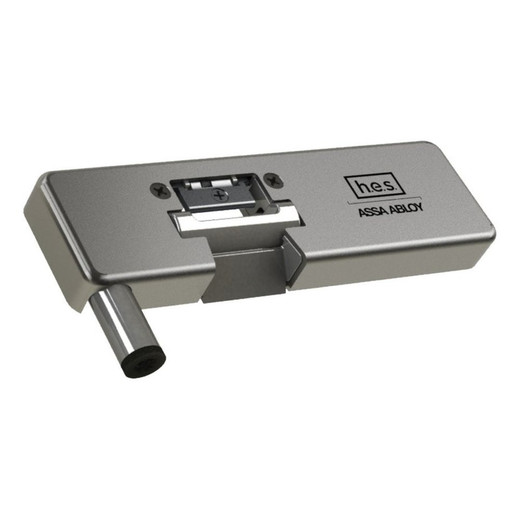

HES RP-09302 Weather-Resistant Remote Plate with Red/Green LED
The RP-09302 is a weather-resistant remote control plate designed for outdoor and semi-exposed door access control installations where visual status feedback and environmental durability are non-negotiable. This is an accessory component engineered to extend distributed control capabilities across multi-door access control networks, pairing with HES electronic strike and magnetic lock systems to provide real-time operational status at secondary monitoring points.
Key Features
- Weather-resistant construction: Rated for outdoor mounting and exposed environments — rain, snow, and temperature fluctuations won't degrade electrical connections or corrode internal contacts. Deploy this where standard indoor-rated components will fail.
- Integrated red/green LED status indicators: Dual-color LEDs eliminate guesswork about lock state and system health. Red and green illumination is visible from multiple vantage points, reducing the need for operators to approach the door to confirm status.
- HES electronic lock compatibility: Designed to integrate directly into HES strike and magnetic lock ecosystems — no third-party adapters or firmware patches required. If you're standardized on HES hardware, this integrates cleanly.
- Distributed access control architecture: Extends control and monitoring capability from a central panel or secondary location, useful in multi-tenant facilities, campuses, and large commercial properties where doors are geographically separated.
- Visual feedback from distance: The LED system provides immediate confirmation without requiring proximity to the door or reliance on network connectivity for status polling. Operational redundancy in low-bandwidth or unreliable network environments.
- Commercial and institutional deployment-ready: Suited for office buildings, institutional campuses, multi-tenant complexes, and any installation requiring weatherproof remote monitoring and control with minimal maintenance overhead.
Integration & Compatibility
The RP-09302 integrates with HES access control hardware to enable operators to monitor and control door status from a remote panel or secondary location. Installation connects the remote plate to an existing HES locking system — no standalone power supply or network connection required if integrated into a hardwired access control loop. The dual-color LED system provides instant visual confirmation of lock engagement, deactivation, or fault state, reducing operational ambiguity in high-traffic entry points.
Environmental Performance
Weather-resistant design means this unit tolerates rain, snow, and temperature extremes without signal degradation or component failure — a critical requirement for outdoor vestibules, loading docks, emergency exits, and perimeter access points. The sealed construction prevents moisture ingress that would corrode standard electronic components. For fully submersed or marine-grade environments, consult the HES product line for higher-rated enclosures.
Frequently Asked Questions
Q: Is the RP-09302 suitable for fully outdoor mounting with direct rain exposure?
A: Yes. Weather-resistant construction handles outdoor conditions including direct rain, snow, and temperature swings without signal loss or electrical failure. Verify mounting location has proper drainage to prevent standing water pooling at the base.
Q: Does the RP-09302 work with non-HES electronic locks?
A: No. The RP-09302 is engineered for HES electronic strike and magnetic lock systems. Integration with third-party lock hardware will require custom wiring and may void warranty — consult HES technical support for clarification on your specific lock model.
Q: What powers the RP-09302 LEDs and control circuitry?
A: The RP-09302 integrates into the HES hardwired access control loop — power is typically supplied from the main access control panel. No separate power supply is required at the remote plate location if wired as part of a continuous circuit.
Q: Can the LED indicators be customized or dimmed?
A: The red/green LED system is a fixed status indicator designed for high-visibility confirmation. Customization or dimming is not supported on this model — the brightness is optimized for outdoor and semi-exposed viewing distances.
Q: What is the typical installation cost and timeline?
A: Installation time depends on existing cabling and panel integration. If HES wiring runs already exist to the door location, mounting and connection typically take 1–2 hours. If new conduit runs are required, plan additional labor for rough-in work.
Q: Does the RP-09302 support network monitoring or cloud integration?
A: No. The RP-09302 is a hardwired remote plate component — it does not communicate over IP or integrate with cloud platforms. Status feedback is local and visual only. For networked access control with remote monitoring, consider HES networked access control systems.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES RP-09302 is a straightforward hardwired remote status plate — no complexity, no firmware, no network dependencies. If you're integrating multi-door access control in outdoor or semi-exposed spaces and need distributed visual feedback without running separate power supplies or network cabling to every door, this is the right tool. The dual red/green LED system is the core value: it tells you immediately whether a lock is engaged or released without requiring an operator to approach the door or pull up a software dashboard.
Technical Highlights:
- Weather-resistant enclosure: Tolerates rain, snow, and temperature extremes — deploy this at loading docks, emergency exits, and perimeter gates without worrying about moisture ingress or corrosion. Standard indoor-rated components fail in these environments; this one won't.
- Integrated red/green LED: Eliminates status ambiguity. Visible from multiple vantage points — useful when you need to confirm lock state from 10+ feet away or across a vestibule.
- Hardwired integration with HES ecosystem: No standalone power supply required if integrated into an existing HES access control loop. Reduces bill of materials and installation labor compared to networked alternatives.
Deployment Considerations:
- HES lock compatibility only: This is not a universal remote plate. It works with HES electronic strikes and magnetic locks — not Schlage, not Salto, not generic solenoid locks. Verify your lock manufacturer before committing.
- No network fallback: If you lose power to the access control loop, the LEDs go dark and you lose visual feedback. In high-reliability environments, pair this with a UPS on your main access control panel or consider a networked system.
- Hardwired runs required: You'll need conduit or cable runs from the main access control panel to each remote plate location. In older buildings or retrofit installs, this can be labor-intensive.
Deploy the RP-09302 in multi-tenant office buildings, institutional campuses, or commercial facilities where you need to monitor and control multiple exterior doors from a central location and can't justify the cost and complexity of a fully networked access control system. It's especially valuable in loading dock and emergency exit scenarios where immediate visual confirmation of lock state is a safety requirement.
