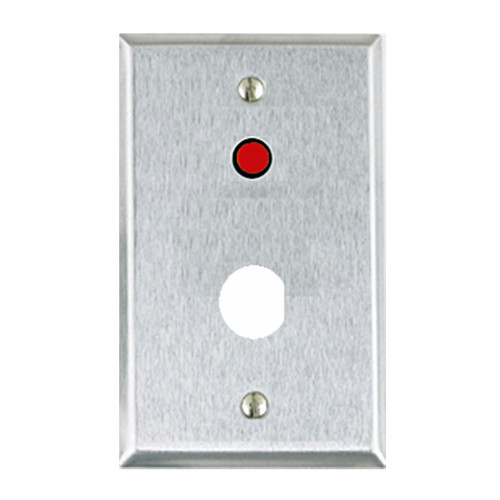

HES RP-07 Remote Plate Stainless Steel Red LED
The RP-07 is a stainless steel remote plate engineered for integration with HES electric strike and locking systems in access control installations. This component serves as a critical interface between electronic locking mechanisms and door strike hardware, delivering visual status feedback through a dedicated red LED indicator. Built for institutional and commercial deployments where hardware must withstand regular use without corrosion or aesthetic degradation, the RP-07 is designed to operate reliably in controlled indoor environments across office buildings, educational facilities, healthcare institutions, and secure entry points.
Key Features
- Stainless steel construction: Resists corrosion in controlled indoor environments, maintaining finish integrity and reducing maintenance cycles compared to mild steel alternatives — a tangible advantage in high-traffic facilities where hardware is touched daily.
- Red LED indicator: Provides immediate visual status feedback to facility staff and security personnel, eliminating ambiguity about strike activation state without requiring additional diagnostic equipment or network monitoring.
- D hole mount configuration: Ensures compatibility with standard HES strike and locking system installations, reducing integration complexity and eliminating need for custom adapters or field modifications.
- Designed for institutional and commercial access control: Engineered specifically for reliability in secure entry environments where hardware failure creates both safety and operational risk.
- Seamless integration with HES systems: Functions as a native component within the HES product ecosystem, avoiding cross-vendor compatibility questions or firmware version conflicts.
Integration and Compatibility
The RP-07 remote plate integrates directly with HES electric strike and locking systems. Installation uses the D hole mount standard, which aligns with most HES strike hardware configurations. No additional adapters or field fabrication is required for deployment in standard door frame installations. This compatibility approach reduces procurement complexity and shortens commissioning timelines for security integrators and facility teams.
Deployment Considerations
The RP-07 is specified for indoor institutional and commercial access control environments. For outdoor or high-moisture applications, verify environmental requirements with your installation team, as stainless steel construction addresses corrosion in controlled conditions but is not rated for submersion or continuous wet exposure. The red LED provides local visual feedback independent of network connectivity or monitoring systems, making it suitable for deployments where immediate on-site status visibility is a requirement. Installation should follow HES strike system documentation to ensure proper mounting orientation and electrical connections.
Frequently Asked Questions
Q: Is the RP-07 suitable for outdoor door frames?
A: The RP-07 is engineered for indoor institutional and commercial environments. For outdoor or high-moisture applications, consult HES product documentation or your security integrator to confirm environmental suitability.
Q: What mounting hardware is included with the RP-07?
A: Refer to the manufacturer datasheet for exact package contents and mounting specifications.
Q: Does the RP-07 require a separate power supply?
A: The RP-07 is powered through integration with HES electric strike systems. Power specifications are determined by the connected strike hardware. Review the strike system documentation for voltage and current requirements.
Q: Can the RP-07 be integrated with non-HES access control systems?
A: The RP-07 is designed specifically for HES electric strike and locking systems. Cross-vendor integration should be verified with your system integrator before deployment.
Q: What is the lifespan of the red LED indicator?
A: LED operational lifespan depends on usage patterns and electrical specifications. Consult the manufacturer datasheet for expected service life and replacement procedures.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The RP-07 is a straightforward piece of access control infrastructure — a remote plate designed to live at the door strike and give your facility staff immediate visual feedback about strike activation. In institutional deployments where you need local status indication independent of network connectivity, the red LED indicator on the RP-07 eliminates guesswork. No wireless dependency, no monitoring system required to see if a strike is energized.
Technical Highlights:
- Stainless steel body: Handles the corrosion exposure you get in high-traffic indoor spaces — touch plates, door frames, and hardware see daily contact, and mild steel will oxidize visibly within months in institutional environments. Stainless maintains appearance and eliminates rust-migration risk.
- D hole mount: Standard mechanical interface on HES strike systems means no adapter fabrication, no custom drilling. Installation is drop-in compatible with most HES strike configurations, reducing commissioning time and field error risk.
- Red LED indicator: Operates independently of network systems, providing immediate on-site feedback to security staff, facilities personnel, and authorized users about strike state. This is a hard requirement in many educational and healthcare facilities where networked monitoring alone isn't sufficient for operational safety.
Deployment Considerations:
- The RP-07 is specified for controlled indoor environments. If your door frame is exposed to weather, direct rain, or high humidity (humid mechanical rooms, loading dock entries), verify environmental compatibility with HES before deployment.
- LED status indication requires line-of-sight visibility at the strike. In recessed or obstructed frame installations, the indicator may not be visible to passing staff — consider signage or alternative status feedback in those cases.
Deploy the RP-07 where you need reliable local status indication on secured access points in office buildings, healthcare facilities, educational campuses, and institutional environments. It's not a networked intelligence component — it's a rugged, maintenance-free indicator that tells you at a glance whether your strike is live.
