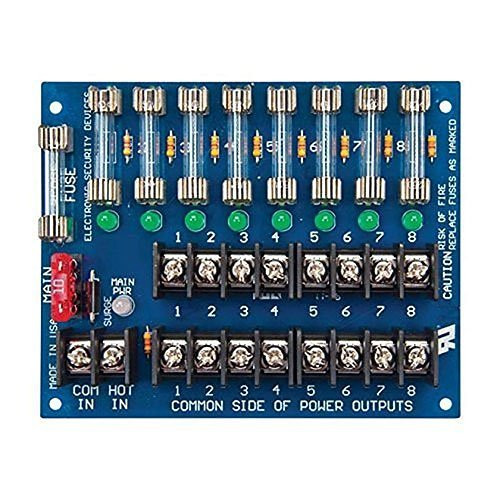

HES PDB-8F1 Power Distribution 8 Fused Output
The HES PDB-8F1 is a dedicated power distribution unit engineered for professional security system installations requiring reliable multi-channel outlet management. Featuring eight independently fused outputs, this unit delivers controlled power to cameras, electronic locks, access control readers, and peripheral devices across integrated deployments. The fused architecture protects connected equipment from overcurrent conditions while simplifying troubleshooting in complex multi-device installations.
Key Features
- Eight fused outputs for independent circuit protection
- Supports 12V DC and 24V AC power supply standards
- Compatible with both analog and IP-based security systems
- Centralized power management for access control and camera systems
- Overcurrent protection safeguards downstream equipment
- Flexible mounting for control rooms, electrical panels, and equipment racks
Technical Specifications
The PDB-8F1 integrates seamlessly into standard security system architectures, providing a consolidated power distribution point for mixed-voltage deployments. The fused output design ensures each circuit operates independently, preventing cascading failures when overcurrent events occur. This distributed protection approach reduces system downtime and streamlines fault isolation during maintenance or troubleshooting.
Applications
- Multi-camera surveillance systems in commercial facilities
- Integrated access control installations with readers and door locks
- Distributed security deployments requiring centralized power management
- Control room infrastructure supporting analog and IP devices
- Retrofit projects where power distribution consolidation is required
The PDB-8F1's compact form factor supports installation in standard electrical panels or equipment racks, making it ideal for both new deployments and system expansions. Its compatibility with common security power supplies reduces installation complexity and ensures consistent voltage delivery across all protected circuits.
