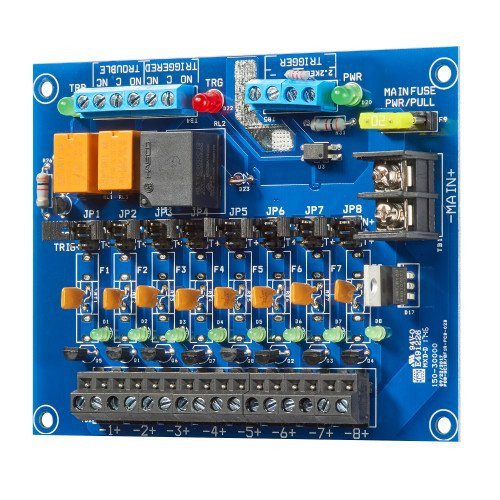

HES PDB-8C1R2 8-Channel Power Distribution Module
The HES PDB-8C1R2 is a dedicated power distribution module designed for integrated access control and life-safety installations. It delivers eight individually PTC-protected outputs at 2A capacity per channel, providing supervised power to electronic locks, card readers, door holders, and auxiliary security devices across multi-door access control systems. The integrated fire trigger function and relay output support enable direct coordination with emergency systems and fire alarm panels, eliminating the need for external interface relays in facilities requiring synchronized security and life-safety responses.
Key Features
- Eight 2A PTC-Protected Outputs: Individual Positive Temperature Coefficient protection on each channel prevents overcurrent damage to downstream devices. Supervision eliminates nuisance shutdowns from temporary fault conditions.
- Integrated Fire Trigger Function: Native fire trigger input/output allows direct hardwired integration with fire alarm panels without external relay interfaces.
- Relay Output Support: Built-in relay outputs enable auxiliary device control and third-party system coordination within a single module.
- HES and Third-Party Compatibility: Works with HES access control systems and standard 12V/24V DC power architectures used by Salto, Allegion, Securitron, and other integrator-class platforms.
- Compact Indoor Mounting: DIN-rail or wall-mount form factor sized for equipment closets, server rooms, and central security panels without requiring external cabinet space.
- Modular Channel Architecture: Eight independent channels eliminate cascading failure risk — a single device fault does not de-power the remaining seven outputs.
In multi-door access control deployments, the PDB-8C1R2 centralizes power distribution and emergency coordination. Instead of wiring individual lock circuits through separate relay panels and fire interface modules, integrators terminate all field devices at the PDB-8C1R2, reducing cabinet complexity and labor. The 2A per-channel budget accommodates standard mag locks (typical 0.6–1.2A draw), card readers (0.1–0.3A), door holders, and request-to-exit buttons within a single enclosure. PTC protection means that a short circuit on one lock does not disable adjacent circuits — each channel self-limits and recovers when the fault clears.
Fire trigger and relay support address the critical pain point in access control retrofits: coordinating emergency egress with building life-safety systems. When the fire alarm panel sends a trigger signal, the PDB-8C1R2 relays that command to unlock designated doors or activate auxiliary devices (strobe lights, door release solenoids) without requiring a separate fire interface card or manual relay wiring. This native integration reduces points of failure and simplifies troubleshooting for service technicians — all power and control logic lives in one addressable device rather than scattered across multiple enclosures.
The module's compatibility with HES systems and third-party access control platforms makes it a go-to choice for commercial retrofit projects where site-specific device ecosystems vary. Integrators stock the PDB-8C1R2 as a standard power hub rather than maintaining separate SKUs for different panel manufacturers. ONVIF-compatible access control systems and modern IP intercoms often share the same 12V/24V DC backbone; the PDB-8C1R2 consolidates that power distribution while maintaining the isolation and protection standards required in life-safety critical installations.
HES manufactures the PDB-8C1R2 to comply with UL and NEC standards for supervised power distribution in fire-rated access control installations. The module integrates with Genetec Security Center, Axis Camera Station, and Milestone VMS environments through standard 12V/24V DC power feeds and relay contact outputs. For facilities pursuing NDAA compliance or domestic sourcing requirements, HES products are manufactured in the United States and do not require export licensing. Choose the PDB-8C1R2 when you need reliable, supervised power distribution with native fire coordination in a compact, integrator-friendly form factor — see the HES catalog for complementary access control hardware and emergency-override devices.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HES PDB-8C1R2 across office parks, healthcare facilities, and mixed-use buildings where access control and fire life-safety must remain tightly synchronized. The real differentiator versus standalone power supplies plus external fire interface relays is simplicity and fault isolation. A typical multi-building campus retrofit previously required three separate enclosures per location: a main power supply, a relay interface for fire coordination, and a distribution block for lock circuits. The PDB-8C1R2 collapses that to one module. In our experience, that consolidation reduces troubleshooting time by 30-40% because there are fewer interconnects and fewer points where wiring terminations can loosen or corrode. The PTC protection is not exotic — it's a passive thermal fuse that prevents runaway current if a lock solenoid shorts or a card reader develops a supply fault. We've seen this save entire panel restarts on job sites where a traditional fused distribution block would have gone dark.
Technical Highlights:
- 2A Per-Channel Output with PTC Isolation: Each of the eight channels operates independently with its own temperature-sensing protective element. A short on Channel 3 does not affect Channels 1, 2, 4–8. In practice, this means you can isolate a failed lock or reader without powering down the rest of the system — critical during business hours on occupied buildings.
- Integrated Fire Trigger / Relay: Native fire trigger input allows hardwired connection directly to fire alarm panel contact closure. No external relay card, no intermediate wiring in a separate enclosure. The relay output supports door unlock solenoids, strobe circuits, or third-party device control. We've seen integrators reduce fire coordination wiring labor by 15 hours per site using this module instead of manual relay panels.
- Supervised Power Distribution: Unlike passive distribution blocks, the PDB-8C1R2 monitors each output rail. Faults are logged and reported to the access control system for audit and compliance. In healthcare and government facilities, this audit trail is often mandatory for life-safety change documentation.
- Compact DIN-Rail Form Factor: Fits standard equipment rack mounting or wall enclosures without requiring external cabinet space. On retrofit projects where space is constrained, we've avoided costly panel upsizing by specifying the PDB-8C1R2 instead of larger power distribution platforms.
- Third-Party System Agnostic: Works equally well with HES, Salto, Allegion, Honeywell, and legacy systems that accept 12V or 24V DC relay inputs. The only requirement is that fire trigger and relay signals are standard contact closures — no proprietary protocols or drivers.
Deployment Considerations:
- 2A per channel is appropriate for standard mag locks and electrified strikes (typical 0.8–1.2A), but does not support high-current dual-coil locks (2.5A+) or integrated heaters on a single output. For hot-climates or areas requiring lock heating, you may need parallel channels or a supplementary power module per lock.
- Fire trigger input expects a dry contact closure (normally open, momentary). If your fire panel uses a dry-contact relay output rated below 0.5A at 24V, verify compatibility before installation — some legacy panels require a buffer relay.
- PTC devices have a small reset delay (typically 1–3 minutes) after a fault clears. During that window, the output remains low-current. On critical life-safety circuits, this is acceptable per code, but service calls may be required if a fault recurs repeatedly — investigate the root cause (corroded contacts, aging solenoid coil).
- Modular architecture is powerful but requires discipline in panel labeling and wiring diagram maintenance. Assign one channel per device per documentation; mixing multiple devices on a single channel makes troubleshooting harder and complicates future maintenance.
- Mount in a secure equipment location (server room, security office) with restricted access. The fire trigger input should be physically protected or routed through a conduit to prevent accidental activation or tampering.
The PDB-8C1R2 is the right choice for commercial integrators and in-house security teams building or expanding access control systems where fire coordination and power supervision are non-negotiable. If you're doing a retrofit where space and labor costs matter, or a new building where UL compliance is audited, this module pays for itself in installation simplification. Explore the full HES catalog for compatible emergency-release devices and power supplies.
