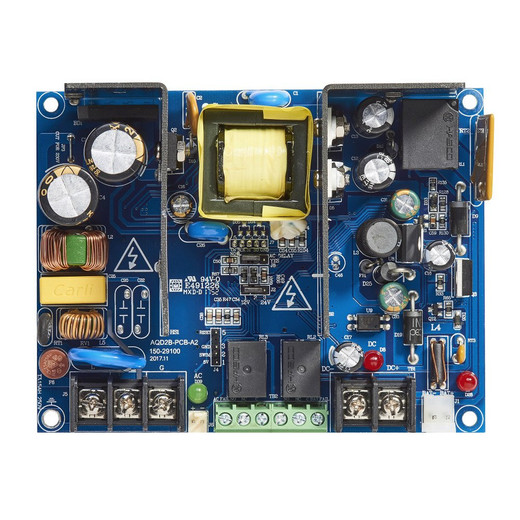

HES AQD2-8F8R1 Power Supply 2A 12/24VDC Charger

HES AQD2-8F8R1 Power Supply 2A 12/24VDC Charger

The HES AQD2-8F8R1 is a dual-voltage power supply and battery charger engineered for security access control and alarm system installations. Delivering 2A output at selectable 12VDC or 24VDC, this unit combines centralized power distribution with integrated battery charging and 8 fused relay outputs—including one dedicated fire relay for priority life safety signaling.

Key Features

• Dual-voltage output: 12VDC or 24VDC selectable
• 2A rated capacity for auxiliary power delivery
• Integrated battery charging capability
• 8 fused relay outputs for circuit protection
• Dedicated fire relay output for life safety priority
• Compact design suitable for equipment rooms and control panels

Technical Highlights

The AQD2-8F8R1 features fused relay outputs that protect downstream circuits and connected devices from overcurrent conditions. The dedicated fire relay ensures uninterrupted signaling for emergency and life safety applications, while the remaining seven general-purpose relays handle access control switching and alarm panel integration. This power supply supports both new installations and retrofit applications where centralized power and relay infrastructure are required.

Applications

Ideal for access control systems, alarm panels, and door lock controllers requiring auxiliary power and relay-driven switching. Commonly installed in security equipment rooms, server closets, and main control panels where multiple security devices demand reliable, protected power distribution.
