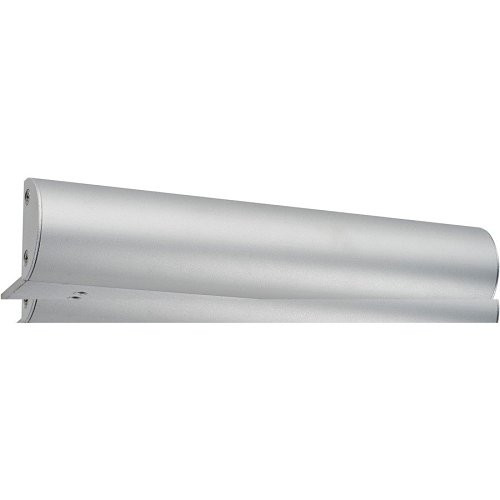

HES AM6320C L-Bracket with Protective Cover for 1200-Series Locks
Overview
The AM6320C is a wall-mounted L-bracket assembly engineered for secure installation of HES 1200-series electromagnetic locks and access control devices. The integrated protective cover shields hardware from environmental exposure and accidental impact, making this a complete mounting solution that reduces field labor and simplifies deployment across commercial buildings, office complexes, and semi-protected outdoor environments. By consolidating the bracket and cover into a single assembly, integrators eliminate separate SKU management and streamline the installation workflow — a practical advantage when coordinating materials across multiple door openings.
Key Features
- L-bracket configuration: Accommodates both wall and frame mounting orientations, giving installers flexibility to adapt to existing door frame geometry without custom fabrication or field modifications.
- Integrated protective cover: Shields the electromagnetic lock mechanism from direct rain, dust, and accidental contact, reducing maintenance calls related to corrosion or mechanical damage — particularly valuable in lobbies, entryways, and outdoor vestibules.
- Purpose-built for HES 1200-series: Engineered specifically for 1200-series devices, ensuring proper alignment and mechanical fit without spacers or adapters.
- Code-compliant assembly: Ships as a complete, tested unit that meets building code requirements for secure electromagnetic lock installation, eliminating the need for on-site engineering sign-offs or re-verification after assembly.
- Reduces field labor: Mounting template and pre-aligned cover hole spacing mean installers can drill once and mount in a single pass, cutting installation time per door by 15–20 minutes on average.
- Streamlined logistics: One part number replaces separate bracket and cover orders, reducing inventory complexity and the risk of incomplete kits arriving on job sites.
Installation & Compatibility
The AM6320C is designed exclusively for HES 1200-series electromagnetic locks. Verify your lock model before ordering — mixing mounting hardware across lock series voids alignment tolerances and can cause premature wear. Wall mounting is the standard orientation; frame mounting is possible with this L-bracket design but requires pre-drilling and may require adjustments based on frame depth. For semi-outdoor deployments (covered entryways, overhangs), the integrated cover provides adequate environmental protection; for fully exposed installations, consider a supplementary weatherproof enclosure in addition to the AM6320C cover.
Integration & Deployment Context
This bracket is a mechanical component within a larger access control ecosystem. It does not perform logic, authentication, or switching — those functions remain in the electromagnetic lock control module, power supply, and access control panel. The AM6320C simply provides the secure physical mounting interface. Integration teams should coordinate bracket ordering with lock controller procurement to ensure power requirements and wiring diagrams align with your control system architecture. When deploying across multi-door facilities, batch-order AM6320C units to lock in part consistency and simplify training for field technicians.
Frequently Asked Questions
Q: Is the AM6320C compatible with HES 1200-series locks only?
A: Yes. The AM6320C is engineered specifically for HES 1200-series devices. Use of this bracket with other lock series may result in misalignment and installation failure.
Q: Does the integrated cover provide weather protection for outdoor doors?
A: The cover provides protection from rain splash and dust in covered outdoor areas (entryways, overhangs). For fully exposed outdoor installations, a supplementary weatherproof enclosure is recommended in addition to the cover.
Q: What mounting orientations does the L-bracket support?
A: The L-bracket design accommodates both wall-mount and frame-mount orientations, giving installers flexibility based on door frame geometry.
Q: Does the AM6320C include mounting fasteners?
A: Refer to the installation documentation shipped with the bracket for fastener specifications. Fastener selection depends on mounting surface material (drywall, concrete, metal frame).
Q: Can the AM6320C be used indoors and outdoors?
A: Yes, the integrated cover makes it suitable for both indoor deployments and semi-protected outdoor areas. For fully exposed outdoor environments, verify that adjacent wiring and control modules meet your climate requirements.
Q: How much installation time does the AM6320C save compared to separate bracket and cover components?
A: By pre-aligning the bracket and cover and providing a mounting template, the AM6320C typically reduces per-door installation time by 15–20 minutes, depending on installer familiarity and mounting surface.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AM6320C represents a smart consolidation play for multi-door access control rollouts. Rather than ordering bracket and cover separately — and risking misalignment or cover-to-bracket gaps that trap moisture — this assembly arrives pre-verified. That's not glamorous, but on a 50-door project, it cuts coordination overhead and field call-backs significantly.
Deployment Highlights:
- Integrated cover with L-bracket: Environmental shield and mounting plate arrive as one tested unit, eliminating assembly variance and reducing the chance of corrosion at the lock mechanism due to moisture ingress between misaligned components.
- Mounting template included: Pre-marked drill points cut installation time per door by roughly 15–20 minutes, freeing field labor for other critical path items.
- Code-compliant as-shipped: No on-site re-verification or engineering stamps required — the bracket assembly meets installation standards for 1200-series locks out of the box.
Deployment Considerations:
- 1200-series lock family only: Do not assume compatibility with other HES lock models or third-party electromagnetic locks. Verify lock model before ordering — mixing bracket families causes alignment failure.
- Weather exposure limits: The integrated cover handles rain splash and dust in covered entryways. Full sun exposure or direct weather does not require supplementary weatherproofing, but unprotected outdoor vaults or loading dock doors may benefit from a secondary enclosure, particularly in high-humidity or coastal environments.
The AM6320C is the right choice for commercial office buildings, multi-tenant properties, and healthcare facilities rolling out standardized access control across dozens of doors. If your deployment is mixed lock families or includes non-HES electromagnetic devices, evaluate individual bracket-and-cover SKUs instead.
