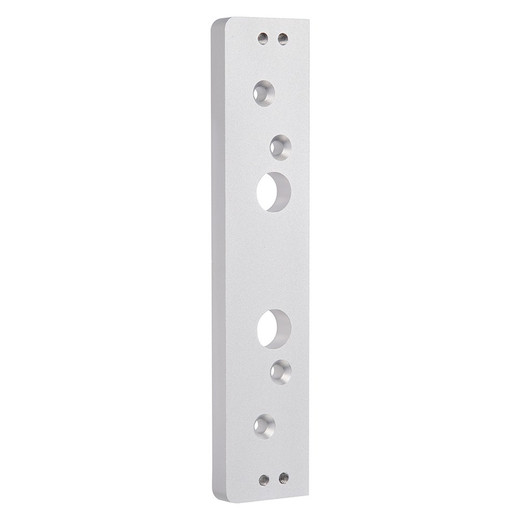

HES 9000-ASB-628 Aluminum Spacer Bracket
Overview
The HES 9000-ASB-628 is a satin anodized aluminum spacer bracket engineered to deliver precise mounting support across the HES 9000 series product ecosystem. This bracket solves a real integration problem: maintaining exact spacing between electronic locking devices and mounting surfaces — a critical requirement when you're installing multiple access control points across a facility and need repeatable, reliable positioning across different door frames and strike configurations.
Built from aluminum with a satin anodized finish, the 9000-ASB-628 resists corrosion without adding weight or bulk, which matters in both indoor commercial environments and areas exposed to humidity or temperature cycling. The standardized spacing dimensions eliminate field-fit improvisation and reduce installation labor — integrators can deploy the bracket confidently across retrofit and new construction projects without custom fabrication or shimming.
Key Features
- Satin Anodized Aluminum Construction: Anodizing creates a hard oxide layer that resists corrosion and scratching far better than bare aluminum. You avoid discoloration and surface degradation in humid or coastal environments, and the finish maintains appearance across multiple installations without refinishing. This matters for facilities where access control hardware is visible and needs to look consistent over 5+ years.
- Precise Spacing for HES 9000 Series: The bracket dimensions are optimized to maintain exact gaps between the strike, latch, or electronic lock body and the mounting surface. This prevents binding, misalignment, and premature wear on mechanical components — all common issues when spacing is approximate or relies on field adjustment.
- Standardized Mounting Configuration: Using a standard bracket across multiple door installations ensures that electricians, integrators, and facility staff don't need to troubleshoot mounting variations from door to door. Setup time drops, and repeat installations become predictable — a significant labor savings over a 50+ door rollout.
- Supports Professional Access Control Deployment: The bracket is designed to work within the electrical and mechanical tolerances expected in commercial access control systems. It accommodates standard door frame depths, strike box positions, and latch throw distances without requiring custom spacing or non-standard hardware.
- Suitable for Retrofit and New Construction: The bracket works equally well in retrofit scenarios (where you're adding access control to existing doors) and new construction (where you're integrating control from the start). No special attachment methods needed — compatible with standard fastening approaches for commercial door hardware.
- Lightweight and Unobtrusive: Aluminum keeps the bracket light enough that mounting hardware doesn't need upsizing, but the anodized finish and form factor look professional and don't stand out visually on a finished door frame. Aesthetics matter in office and retail environments where security hardware is part of the visible interior.
Integration & Compatibility
The 9000-ASB-628 is engineered specifically for the HES 9000 series product line. Before ordering, confirm that your strike, lock, or latch component carries the 9000 series designation. HES publishes detailed integration guides for the 9000 family; cross-reference the door type, frame material, and latch throw distance in those guides to ensure the spacer dimensions align with your installation requirements.
If you're unsure whether the 9000-ASB-628 fits your specific door frame or lock model, reach out to your integrator or HES technical support with the door frame dimensions and lock/strike part number. Incorrect spacing can cause binding or misalignment, so verification upfront is worth the effort.
When to Choose a Different Approach
If you require custom spacing outside the standard HES 9000 dimensions, or if you're integrating a non-HES 9000 series lock or strike, this bracket may not be appropriate — you'd need either a different HES bracket model or custom fabrication. Similarly, if your door frame is nonstandard (unusual depth, offset latch position, or recessed strike box), work with your integrator to validate the bracket fits before purchase.
Typical Deployment Scenarios
The 9000-ASB-628 is widely used in multi-door access control rollouts: office buildings securing a suite of rooms, warehouses controlling dock entry points, and secure facilities standardizing access on a per-building basis. In these cases, the repeatable spacing and professional finish simplify procurement and reduce field callbacks. For integrators managing large-scale deployments, using a standard bracket across all similar door types is a major time and cost lever.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES 9000-ASB-628 is a straightforward mounting accessory, but don't underestimate the value of standardization on large access control deployments. Satin anodized aluminum is the right material choice here — it's durable enough for 5+ years in commercial environments without maintenance, and the finish doesn't require field touch-up or refinishing.
Technical Highlights:
- Satin Anodized Finish: Hard-coat anodizing resists corrosion, scratching, and discoloration far better than bare aluminum. In humid or temperature-cycling environments, you avoid the white oxidation and pitting that degrade appearance and require refinishing. Low-maintenance over the life of the installation.
- Standardized Spacing Dimensions: The bracket maintains precise gaps between strike and frame, latch and latch-keeper, or lock body and mounting surface — dimensions that are critical to avoid binding, drag, or premature mechanical wear. Field improvisation or shimming introduces variability and future callbacks.
- Series-Specific Design: The 9000-ASB-628 is optimized for HES 9000 equipment. Installing it on non-9000 hardware, or vice versa, risks misalignment and installation failure. Always cross-reference part numbers before order.
Deployment Considerations:
- On retrofit jobs, measure existing door frame depth and latch throw before assuming the bracket fits. Door frames vary, and nonstandard geometry may require custom spacing or a different bracket model.
- The bracket supports secure installation but does not replace a quality strike box or mechanical latch. Pair it with properly rated locks and strikes for the security level your facility requires.
- Satin anodizing is durable, but in corrosive coastal or chemical-heavy environments, consider confirming that the aluminum alloy used is suitable for that exposure — not all aluminum anodizing specs are equal in salt-air or chlorine-heavy settings.
The 9000-ASB-628 is ideal for integrators rolling out standardized access control across multiple doors or facilities. The repeatable spacing and professional finish reduce labor variance and callbacks. If you're managing a 20+ door retrofit in an office or warehouse, using this bracket across all similar door types is a smart operational decision — it's not glamorous, but it's the kind of deliberate choice that keeps large deployments on schedule and on budget.
Frequently Asked Questions
Q: Is the HES 9000-ASB-628 compatible with non-HES 9000 series locks?
A: No. The bracket is engineered specifically for HES 9000 series equipment. Using it with other brands or series risks misalignment and mounting failure. Always verify the part number of your lock, strike, or latch against the HES 9000 product line before ordering the bracket.
Q: Will the satin anodized finish scratch or fade over time?
A: Anodizing is a hard, durable finish that resists scratching and discoloration far better than bare aluminum. In typical commercial indoor environments, the finish will remain stable for 5+ years without maintenance. Coastal or corrosive environments may accelerate oxidation, but the anodized layer provides substantial protection compared to unfinished aluminum.
Q: What door frame depths does the 9000-ASB-628 accommodate?
A: The bracket is designed for standard commercial door frames. Exact dimensions and compatible frame depths are detailed in the HES 9000 series integration documentation. Measure your door frame depth and latch throw distance before ordering to confirm fit. If your frame is nonstandard, consult with your integrator or HES technical support.
Q: Do I need any special fasteners or tools to install the bracket?
A: The bracket mounts using standard commercial door hardware fastening methods. Specific fastener types and torque specs are included in HES 9000 series installation guides. No special tools are required beyond standard screwdrivers, wrenches, or power drills commonly used in door hardware installation.
Q: Can the bracket be used for both retrofit and new construction?
A: Yes. The 9000-ASB-628 works equally well in retrofit scenarios (adding access control to existing doors) and new construction (integrating control from the start). Standard mounting hardware and approaches apply in both cases.
Q: Where can I find detailed spacing specifications for the bracket?
A: Detailed dimensions and spacing specifications are included in the HES 9000 series technical documentation and integration guides. Contact your integrator or HES directly for the relevant guide covering your door type, strike configuration, and latch throw distance.
