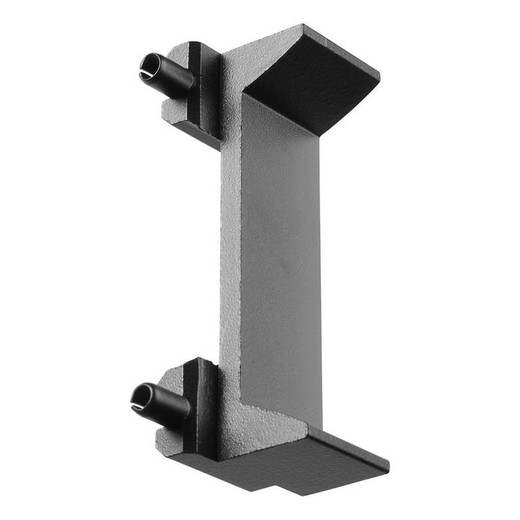

HES 5204-1 Stackable Lip Extension

HES 5204-1 Stackable Lip Extension

The HES 5204-1 is a stackable lip extension accessory engineered for use with HES electric strike systems. This component enables installers to adjust strike depth during retrofit applications without requiring frame modification, making it an essential tool for flexible access control deployment across varied door frame configurations.

Key Features

• Stackable design allows multiple units to be combined for variable depth requirements
• Eliminates need for frame modification during retrofit installations
• Provides on-site depth adjustment flexibility
• Compatible with HES ASSA ABLOY electric strike product lines
• Designed for standard door frame installations

Technical Highlights

The stackable construction of the 5204-1 permits installers to customize strike depth by combining multiple extensions, accommodating different jamb thicknesses and frame configurations without labor-intensive frame cutting or modification. This approach reduces installation time and material costs while maintaining system integrity and security performance.

Applications

The HES 5204-1 is ideally suited for institutional, commercial, and retrofit access control environments where frame and jamb configurations vary or require depth adjustment. Common deployment scenarios include office buildings, educational facilities, healthcare institutions, and commercial properties undergoing access control system upgrades or modifications.

Installation Benefits

Designed specifically for security integrators and installation professionals, the 5204-1 reduces frame modification labor and provides the on-site depth flexibility necessary for efficient retrofit deployments. By enabling quick adjustments during installation, integrators can address site-specific requirements without additional equipment or structural changes.
