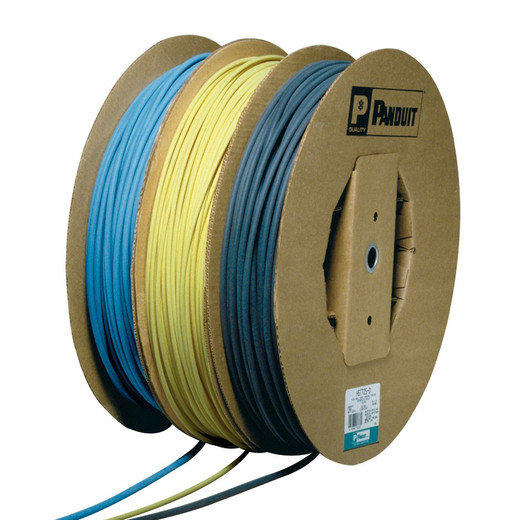

Panduit HSTT06-C 2:1 Heat-Shrink Tubing 1/16" 100ft

Panduit HSTT06-C Dry-Shrink™ Heat-Shrink Tubing

The Panduit HSTT06-C is a 100-foot continuous roll of 1/16" (0.06", 1.6mm) diameter thin-wall heat-shrink tubing engineered for dry-environment cable management in commercial security, access control, and data infrastructure installations. Constructed from crosslinked black polyolefin with a 2:1 shrink ratio, this tubing delivers reliable insulation, strain relief, and abrasion protection for low-voltage wiring terminations, splice points, and bundled cable runs. UL recognized, CSA listed, and qualified to military specifications, the HSTT06-C meets code requirements for inspected installations while providing the mechanical durability integrators need for long-term deployments. The 100-foot bulk length reduces waste and repositioning during large projects—ideal for multi-camera IP surveillance builds, distributed access control systems, or structured cabling in IT/telecom environments.

Key Features

• 2:1 Shrink Ratio: Recovers to half its supplied diameter when heated, conforming tightly to cables from 0.03" to 0.06" for secure coverage without excessive bulk
• Crosslinked Polyolefin Construction: Provides superior tensile strength, chemical resistance, and temperature stability compared to non-crosslinked materials—maintains flexibility across -55°C to +135°C operating range
• 100-Foot Continuous Roll: Eliminates mid-run splices and packaging waste; cut custom lengths on-site to match termination geometry and cable diameter
• UL/CSA Listed, Military Grade: Meets UL 224 VW-1 flame rating and MIL-I-23053/5 Class 1 performance standards for electrical insulation and flame resistance in commercial and industrial environments
• Abrasion-Resistant Black Finish: Protects conductors from mechanical wear in conduit pulls, cable trays, and tight-radius bends; black color coding supports organized wire identification schemes
• Thin-Wall Design: 0.015" nominal recovered wall thickness minimizes bundle diameter increases—critical when retrofitting existing conduit or maintaining tight bend radii in access control panels

Heat-shrink tubing is the standard method for insulating soldered or crimped terminations on low-voltage security cabling—camera pigtails, door strike leads, request-to-exit sensors, and RS-485 data lines all benefit from the environmental seal and strain relief this material provides. The HSTT06-C's crosslinked polyolefin formulation offers significantly better performance than commodity PVC tubing: crosslinking creates three-dimensional molecular bonds that prevent the material from melting or flowing under heat, ensuring dimensional stability during shrink application and long-term resistance to elevated temperatures in plenum spaces, outdoor junction boxes, and equipment racks. The 2:1 shrink ratio strikes the optimal balance for field use—aggressive enough to conform tightly to irregular terminations (wire nuts, butt splices, crimp ferrules) without requiring precise pre-sizing, yet forgiving enough to slide over connectors and cable jackets during installation. Integrators appreciate the flexibility: a single 1/16" roll handles 22 AWG to 26 AWG conductors, the most common wire gauges in access control, intrusion detection, and IP camera power distribution.

Deploy the HSTT06-C wherever you need code-compliant insulation and mechanical protection on low-voltage terminations. Common applications include sealing solder joints on camera pigtail conversions (barrel-to-lead transitions on analog-to-IP retrofits), insulating crimp splices in door contact loops, strain-relieving multi-conductor cable breakouts at controller terminals, and color-coding home-run wiring in central equipment racks. The 100-foot roll length supports multi-device projects without running out mid-install—a typical 32-camera IP surveillance build with field-terminated RJ45 and power pigtails consumes 15–20 feet of tubing; this single roll covers two such projects with material to spare. The thin-wall construction is purpose-built for low-voltage work: it adds minimal diameter to bundled conductors (critical when pulling retrofit cables through occupied 3/4" conduit), maintains flexibility for tight-radius routing behind access control readers and PIR sensors, and shrinks uniformly with a standard heat gun at 120–150°C without scorching or splitting. For outdoor applications—PTZ camera pedestal bases, gate operator junction boxes, perimeter intrusion sensor wiring—pair this tubing with adhesive-lined variants on the outer splice layer for moisture sealing, using the HSTT06-C as the primary insulation layer over individual conductors.

UL recognition and CSA listing ensure the HSTT06-C passes inspection in commercial builds where AHJs require listed components for low-voltage wiring methods—particularly relevant in healthcare, education, and government projects with strict electrical code enforcement. The military-grade qualification (MIL-I-23053/5 Class 1) validates performance under thermal cycling, humidity exposure, and dielectric stress testing, giving you a defensible material choice for mission-critical installations where cable failures trigger service calls, false alarms, or security gaps. Panduit's consistent manufacturing tolerances mean the tubing shrinks predictably across the entire roll—no thin spots, no diameter variation—so your terminations look uniform and your QA process stays simple. For integrators managing material costs on competitive bids, the 10-roll carton quantity and bulk pricing structure make this a economical choice compared to pre-cut assortment kits, while the single-diameter focus eliminates the inventory sprawl of maintaining six different tubing sizes for every wire gauge in your truck stock.
