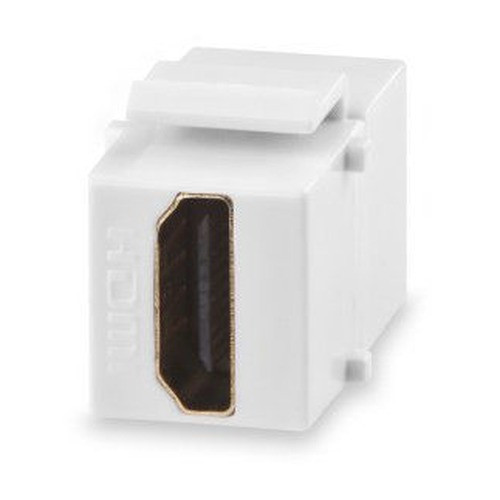

Signamax CMK-HDMI HDMI Connector Module

Overview

The Signamax CMK-HDMI is a Type A HDMI keystone module designed for clean integration of HDMI signals within structured cabling systems. It provides a female-to-female connection point, simplifying the termination of HDMI runs behind walls or within patch panels. This module is ideal for AV installations, conference rooms, or any environment requiring a professional and organized method for routing high-definition video signals. The ivory finish ensures a discreet appearance in standard wall plates.

Compatibility

This keystone module is compatible with any standard keystone wall plate or patch panel designed to accept standard-sized keystone jacks. It facilitates the connection of standard HDMI cables (Type A connectors) on both ends, allowing for seamless integration with projectors, displays, computers, and other HDMI-enabled devices. It is suitable for use with HDMI 1.4 specifications, supporting resolutions up to 1080p at 60Hz.

Installation Notes

Installation requires a standard keystone-style wall plate or patch panel with available keystone cutouts. Simply snap the CMK-HDMI module into the desired cutout. Ensure that standard HDMI cables are used for both the input and output connections to maintain signal integrity. This module does not require external power or additional configuration.
