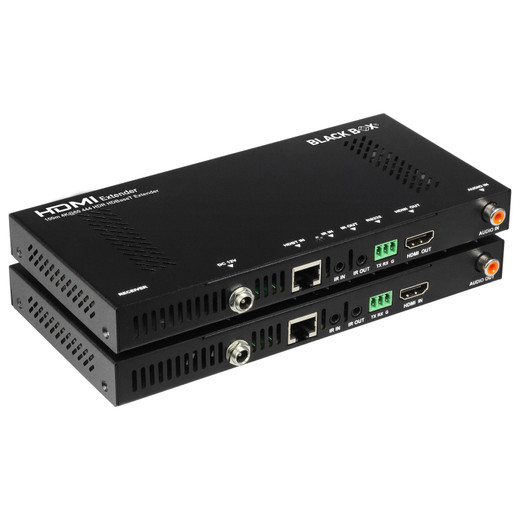

Black Box AVX-HDMI2-HDB-R2 HDMI 2.0 Extender over CATx

Overview

The Black Box AVX-HDMI2-HDB-R2 is an HDMI 2.0 extender designed to push high-definition video signals over CATx structured cabling — the practical answer when a direct HDMI cable run isn't feasible and you need to bridge a display or presentation system across a room, floor, or building segment. This unit is the receiver component of the AVX-HDMI2-HDB extender pair, deploying at the display end of the CATx run.

Black Box has a long history in commercial AV signal distribution. The Black Box AV extender line covers a range of HDMI, DisplayPort, and HDBaseT solutions suited to corporate AV, command-and-control rooms, and digital signage environments. If you're evaluating AV extenders and signal distribution products, understanding the transmitter-receiver pairing and cable category requirements is essential before specifying this unit.

Key Features

• HDMI 2.0 Signal Support: HDMI 2.0 carries higher bandwidth than HDMI 1.4 — relevant if your source outputs 4K content or higher frame rates. Confirm your source and display both support HDMI 2.0 to take full advantage of the signal path this extender maintains.
• CATx Infrastructure Reuse: Running signal over existing Cat5e, Cat6, or Cat6a structured cabling avoids the cost and disruption of pulling dedicated HDMI cables through finished walls or cable trays. This is the primary reason integrators specify extender solutions over direct-run HDMI in commercial installs.
• Receiver Unit Architecture: The AVX-HDMI2-HDB-R2 is the remote (display-side) receiver. It pairs with a dedicated transmitter unit — verify you have the correct transmitter SKU in your bill of materials before ordering.
• Commercial AV Application: Suited for conference rooms, digital signage endpoints, command centers, and any fixed installation where source and display are separated by more distance than a passive HDMI cable can reliably cover.

Integration and Compatibility

As part of the Black Box AVX extender family, the AVX-HDMI2-HDB-R2 is intended for use with its matched transmitter counterpart. Confirm cable category, run length, and resolution requirements with Black Box's product documentation before deployment. For installations involving multiple display endpoints, review AV distribution and matrix switching options to determine whether a point-to-point extender or a matrix solution better fits your topology. Consult AV signal extension planning resources when specifying cable runs for 4K content, as bandwidth requirements affect maximum supported distances.

Frequently Asked Questions

Q: Is the AVX-HDMI2-HDB-R2 the transmitter or receiver unit?

A: The AVX-HDMI2-HDB-R2 is the receiver (display-side) unit. It must be paired with the correct Black Box transmitter unit to complete the extender link. Verify the matching transmitter SKU before placing your order.

Q: What CATx cable category does the AVX-HDMI2-HDB-R2 require?

A: The product is specified as an extender over CATx cabling. Consult Black Box's product documentation for the specific supported cable categories (Cat5e, Cat6, Cat6a) and their corresponding maximum extension distances, as these vary by resolution and cable type.

Q: What HDMI version does the AVX-HDMI2-HDB-R2 support?

A: The AVX-HDMI2-HDB-R2 supports HDMI 2.0, which provides higher bandwidth than HDMI 1.4 and is suitable for 4K video signals depending on resolution, frame rate, and cable run specifications.

Q: Does the AVX-HDMI2-HDB-R2 require external power?

A: Power requirements for the receiver unit are not confirmed in available evidence. Contact Black Box or your supplier for power specification details before installation planning.

Q: Can the AVX-HDMI2-HDB-R2 be used in a multi-display setup?

A: The AVX-HDMI2-HDB-R2 is a point-to-point receiver unit, not a distribution amplifier. For multi-display deployments, a separate AV matrix or distribution solution would be required alongside the extender pair.

Eden Phillips

The AVX-HDMI2-HDB-R2 occupies a specific and practical role in commercial AV infrastructure: it's the receiver end of an HDMI 2.0-over-CATx extender pair, designed for installations where pulling a direct HDMI run isn't viable. HDMI 2.0 bandwidth headroom matters here — it's the spec that separates extenders that can carry 4K signals from those limited to 1080p, and the AVX-HDMI2-HDB-R2 is positioned in the HDMI 2.0 tier of the Black Box AVX extender family.

Technical Highlights:

• HDMI 2.0 Signal Path: HDMI 2.0 support means the extender link isn't the bottleneck when your source and display are both 4K-capable — critical for conference room and command center installs where future display upgrades are likely.
• CATx-Based Extension: Leveraging existing structured cabling infrastructure eliminates the need for HDMI-rated cable pulls through conduit — a real cost and schedule factor in finished commercial spaces.
• Receiver-Only Unit: The AVX-HDMI2-HDB-R2 is a single-role device — it receives signal at the display end. This matters for BOM accuracy: one transmitter SKU plus this receiver completes the link; no standalone operation is possible.

Deployment Considerations:

• Confirm the matching Black Box transmitter SKU is on your BOM before ordering — this receiver has no standalone function without the paired transmitter unit.
• Available evidence does not confirm specific maximum extension distances or supported resolutions at distance; pull the Black Box product datasheet to verify run length against your cable category and target resolution before committing to a cable route.

The AVX-HDMI2-HDB-R2 is the right call for fixed commercial AV installs — conference rooms, digital signage endpoints, and control room display feeds — where CATx infrastructure is already in place and HDMI 2.0 bandwidth is a project requirement.
