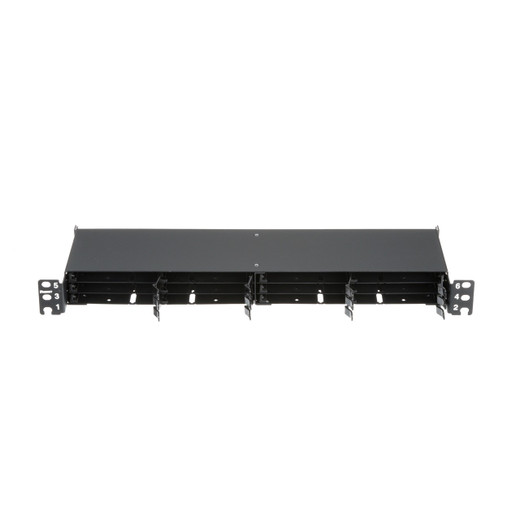

Panduit FLEX1UPN06 HD Flex Fiber Panel

High-density fiber deployments demand intelligent space utilization without compromising accessibility or future scalability. The Panduit FLEX1UPN06 HD Flex Fiber Panel delivers 144-fiber capacity in a single rack unit, accepting up to twelve 6-port HD Flex cassettes or Fiber Adapter Panels. Front-and-rear access architecture eliminates the need to remove adjacent equipment during moves, adds, or changes—critical in live production environments where uptime requirements prohibit extended maintenance windows. The all-metal 1RU chassis integrates cable management brackets and supports both rack and cabinet rail mounting, providing the structural foundation for main distribution areas (MDA), horizontal distribution areas (HDA), and equipment distribution areas (EDA) where patch field density directly impacts available rack real estate.

Key Features

• 144-fiber maximum capacity in 1 RU chassis via twelve 6-port HD Flex cassette positions
• Front and rear accessibility for live-environment MACs without equipment removal
• Universal compatibility with all Panduit HD Flex Fiber Cassettes and Fiber Adapter Panels
• All-metal construction with integrated cable management bracket for structured routing
• 19-inch rack-mount form factor with cabinet rail mounting option
• 1.72-inch (43.7 mm) vertical height fits standard 1U spacing
• Rear-loading adapter panel design for organized breakout transitions
• RoHS-compliant materials meet environmental procurement standards

The HD Flex architecture solves the patch field density challenge facing modern datacenters and telecom facilities. Traditional fixed-port panels lock you into a single connector type and port count, forcing over-provisioning or costly replacements when requirements shift. The FLEX1UPN06's modular cassette system separates the chassis investment from the connector interface—install only the cassettes you need today, then populate remaining positions as fiber counts grow or connector standards evolve. Each cassette position accepts HD Flex modules in LC, SC, ST, FC, or MPO configurations, enabling mixed-mode deployments where singlemode backbone links and multimode horizontal runs terminate in the same panel. The 6-port rail spacing accommodates Panduit's color-coded cassette system for visual circuit identification—critical when a single panel may host dozens of discrete fiber runs serving different VLANs, storage fabrics, or tenant networks. Front accessibility handles routine patching and testing, while rear access permits cable breakout installation and slack management without disturbing active connections on the front termination field. This dual-sided workflow reduces mean time to repair during fiber link troubleshooting, as technicians can isolate backbone issues from horizontal distribution faults by accessing each side independently.

Deployment context dictates panel selection. In main distribution areas serving inter-building campus backbones or carrier demarcation points, the 144-fiber capacity consolidates multiple high-count trunk cables into a single manageable termination point—reducing the 12-panel sprawl of legacy 12-port panels into a compact 1RU footprint. Horizontal distribution areas connecting floor switches to IDF patch fields benefit from the modular cassette approach, as individual building wings or tenant spaces can receive dedicated cassette positions with appropriate connector types and polarity schemes without cross-contaminating circuit documentation. Equipment distribution areas housing SAN fabrics, hyperconverged clusters, or high-performance computing interconnects leverage the rear-loading design to manage the dense breakout harnesses required when 24-fiber or 48-fiber trunk cables fan out to individual server or storage array connections. The integrated cable management bracket provides tie-down points for securing breakout legs and maintaining the minimum bend radius—typically 1.5 inches for tight-buffered indoor cable—preventing the kinking and micro-bending losses that degrade optical link budgets over time. Rack-mount installation follows standard 19-inch EIA-310 hole patterns, while the cabinet rail option accommodates two-post relay racks or equipment cabinets where threaded cage nut mounting is impractical. The 1.72-inch height specification ensures compatibility with standard 1U vertical spacing, but verify clearance for the rear cable management bracket when installing above PDUs or horizontal cable managers with protruding mounting ears.

RoHS compliance addresses procurement requirements in enterprise IT environments subject to environmental stewardship policies or EU import regulations. The all-metal chassis construction provides electromagnetic interference shielding—relevant in equipment rooms housing high-power RF devices or variable-frequency motor drives that generate conducted and radiated noise. Panduit's HD Flex ecosystem extends beyond patch panels to include cassettes, trunk cables, breakout harnesses, and testing documentation, ensuring end-to-end compatibility when building out a structured fiber plant per TIA-568 or ISO/IEC 11801 cabling standards. Professional installation requires attention to cassette insertion force—the press-fit retention mechanism demands firm, even pressure to seat modules flush with the panel faceplate, and partial insertion creates air gaps that compromise the panel's EMI shielding effectiveness. When populating a full 12-cassette configuration, install modules from the center outward to distribute lateral stress evenly across the chassis mounting points, preventing rack ear bowing that can misalign threaded holes and complicate future equipment installations above or below the fiber panel.
