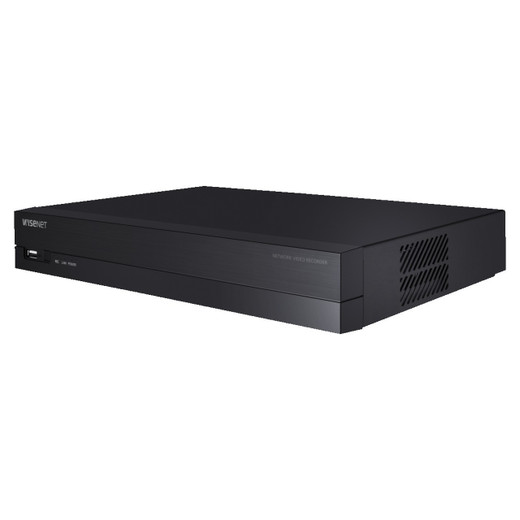

Hanwha XRN-420S 4CH Compact NVR

Hanwha XRN-420S 4CH Compact NVR

The Hanwha XRN-420S is a purpose-built 4-channel network video recorder engineered for small to medium-scale surveillance deployments. This compact Linux-based NVR combines efficient H.265/H.264/MJPEG compression with integrated PoE+ connectivity, delivering professional-grade recording and playback in a space-saving chassis. Measuring just 300 x 47.1 x 208.4 mm and weighing 1.06 kg, the XRN-420S fits seamlessly into confined spaces while maintaining enterprise security standards and intelligent event management capabilities.

Key Features

• 4-channel 8MP network camera input with H.265, H.264, and MJPEG compression support
• 50 Mbps maximum recording bandwidth for optimized storage utilization
• Single SATA slot supporting HDDs up to 6TB capacity
• 4x integrated PoE+ ports (10/100 LAN) plus dedicated 1 Gbps WAN port
• Dual display outputs: HDMI 4K (3840x2160 @ 30Hz) and VGA 1080p (1920x1080 @ 30Hz)
• Multi-screen display modes: 1/2V/2H/3V/4-channel layouts with sequence playback
• Advanced recording modes: Normal, Dual Stream, Schedule (Continuous/Event), Event-driven (Pre/Post), and Bookmark
• Intelligent event triggers: Alarm input, video loss, motion detection, video analytics, defocus, and audio events
• Event actions: Email, event push, PTZ presets, alarm output, and buzzer activation
• 32 Mbps playback bandwidth supporting up to 4 simultaneous local users and 3 remote users
• Fisheye dewarping via CMS for panoramic camera support
• Redundancy with N+1 failover and ARB support for mission-critical deployments
• iOS and Android mobile apps with live 4-channel and playback capabilities
• IP filtering, 802.1x authentication, certificate-based encryption, and signed firmware
• P2P connectivity via QR code for simplified remote access setup

Technical Highlights

The XRN-420S supports ONVIF and SUNAPI protocols, enabling seamless integration with third-party VMS platforms via CGI support. Its 50W PoE budget efficiently powers compatible network cameras while minimizing installation complexity. The unit features 4-channel audio input/output with G.711, G.726, and AAC compression, plus 2-way audio communication for interactive surveillance scenarios.

Recording flexibility includes 4-point and 8-point polygon motion detection, quality presets, GOP and bitrate configuration, plus advanced camera controls such as WDR, Day/Night mode, shutter adjustment, and digital stabilization. Local storage is managed through a comprehensive logging system capturing up to 100,000 system and event entries each. Network protocols include IPv4/IPv6, TCP/IP, UDP/IP, RTSP, NTP, HTTP, DHCP, SMTP, DNS, DDNS, uPnP, and HTTPS.

Applications

Ideal for retail stores, office buildings, educational facilities, and small-to-medium commercial spaces requiring reliable video surveillance without extensive infrastructure investment. The compact form factor and integrated PoE+ connectivity eliminate the need for separate power distribution, reducing installation costs and complexity.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XRN-420S balances affordability with professional capabilities. Its H.265 codec support and 50 Mbps recording bandwidth optimize storage efficiency, critical for cost-conscious deployments. The dual display outputs cater to both control room and mobile monitoring scenarios.

N+1 redundancy and ARB failover provide business continuity for security-sensitive applications. Integration with Wisenet AI cameras enables advanced analytics via CMS, future-proofing smaller installations. While limited to 4 channels and single SATA storage, the XRN-420S delivers proportionate functionality for its compact footprint—a solid entry point for organizations graduating from DVR-based systems to network video recording.
