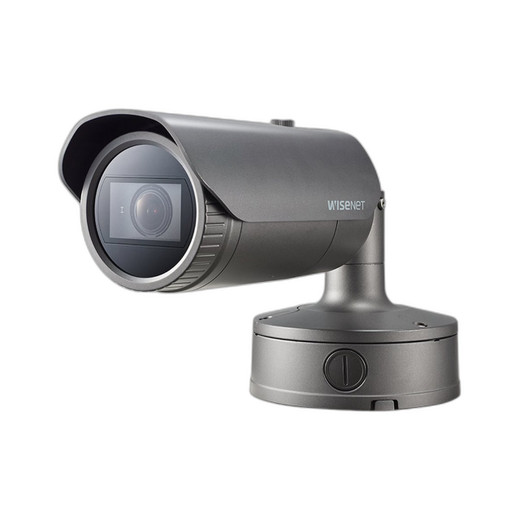

Hanwha XNO-9082R 4K Outdoor IR Bullet Network Camera

Hanwha XNO-9082R 4K Outdoor IR Bullet Network Camera

The Hanwha XNO-9082R is a professional-grade 4K outdoor bullet camera engineered for comprehensive surveillance in demanding environments. Combining 8MP 4K resolution (3840x2160), motorized varifocal optics, and advanced imaging technologies, this camera delivers exceptional detail and performance 24/7. Designed for perimeter security, facility monitoring, and critical infrastructure protection, the XNO-9082R provides reliable image quality across extreme weather conditions and lighting scenarios.

Key Features

• 4K Ultra HD resolution (3840x2160) at 30fps with H.265/H.264 compression
• Motorized 2.8~8.4mm varifocal lens with 3x optical zoom and auto-iris control
• WiseIR technology: 40-meter infrared range for complete darkness operation
• Extreme WDR (120dB) with HLC, BLC, and SSDR for backlit and high-contrast scenes
• Advanced defog and digital image stabilization (built-in gyro sensor)
• IP66/IP67 and NEMA 4X rated; IK10 impact protection for harsh outdoor deployment
• Dual micro SD/SDHC/SDXC card slots supporting up to 1TB edge storage
• PoE, 12VDC, and 24VAC power options with redundancy failover

Intelligent Analytics & Security

The XNO-9082R integrates comprehensive video analytics including motion detection (8 polygonal zones), digital auto-tracking, directional detection, and appear/disappear monitoring. Advanced capabilities encompass face and upper-body detection, loitering detection, tampering alerts, audio detection with sound classification, and shock detection. The camera also offers business intelligence features—people counting, queue management, and heatmap generation—enabling data-driven facility management. Privacy masking supports 32 customizable quadrangle zones with multiple color and mosaic options.

Imaging Performance & Connectivity

With a 1/2.8" progressive CMOS sensor and F1.2 wide aperture, the camera achieves 0.05 Lux color sensitivity and 0.005 Lux monochrome performance. Multiple resolution options (up to 18 selectable formats) accommodate bandwidth and storage constraints. Bitrate control supports CBR/VBR modes with WiseStream II smart codec optimization. The camera supports up to 10 streaming profiles with 3 virtual channels, accommodating 20 concurrent users via unicast or multicast protocols.

Comprehensive protocol support includes IPv4/IPv6, RTSP, ONVIF Profile S/G/T, SUNAPI, and Wisenet open platform integration. Dual configurable I/O ports enable alarm triggering via analytics, network disconnection, or external inputs with event-driven actions including email/FTP file uploads and SD/NAS recording. Integrated audio input (switchable mic/line) and line-out audio support two-way communication and situational awareness.

Security & Durability

Enterprise-grade security includes HTTPS/SSL encryption, digest and IP authentication, 802.1X EAP support, and HTPM certificate protection. The rugged aluminum housing (dark grey) with IP67 sealing and IK10 vandal resistance withstands extreme temperatures (-50°C to +60°C) and high humidity environments. Typical power consumption ranges from 9.4W (12VDC) to 11.2W (24VAC), ensuring efficient operation in battery or extended deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNO-9082R represents a mature, feature-rich platform for enterprises requiring reliable 4K outdoor surveillance with minimal false-alarm analytics overhead. The 3x motorized zoom and extreme WDR (120dB) excel in mixed-lighting perimeter scenarios—highways, parking structures, and facility boundaries. The 40-meter IR range and F1.2 maximum aperture provide genuine low-light performance without heavy noise artifacts, critical for threat detection in unlit areas.

Edge storage scalability (up to 1TB) and multi-profile streaming reduce backend infrastructure costs for distributed deployments. ONVIF and SUNAPI standards enable vendor-neutral integration with third-party VMS platforms. The built-in gyro sensor for digital stabilization is particularly valuable on pole-mounted installations subject to wind vibration. Key considerations: the 2.8~8.4mm focal length suits wide-area monitoring rather than extreme telephoto scenarios; and while face detection is included, recognition accuracy depends on training data and network configuration. Organizations should validate analytics calibration against site-specific conditions before production deployment.
