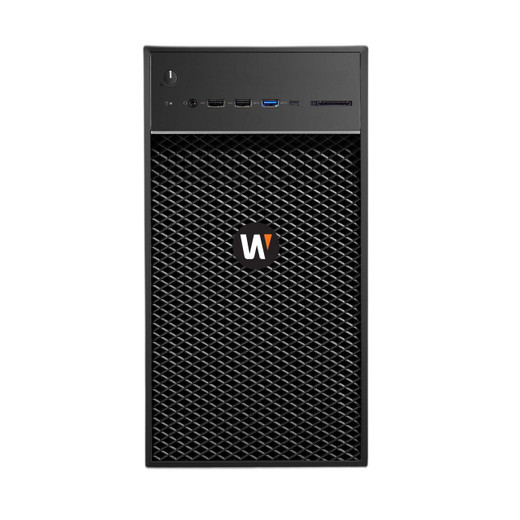

Hanwha WRT-P-3102W Wisenet WAVE Network Video Recorder

Hanwha WRT-P-3102W Wisenet WAVE Network Video Recorder

The Hanwha WRT-P-3102W is a professional-grade dual-purpose network video recorder built on the Wisenet WAVE platform, designed for organizations requiring robust video management and reliable storage in a compact tower form factor. This NVR combines enterprise-class hardware with pre-configured software licensing, delivering a turnkey solution for IP camera surveillance deployments of medium to large scale.

Key Features

• Pre-loaded Wisenet WAVE Professional video management software with 4 included licenses
• Up to 170 Mbps recording bandwidth for simultaneous multi-camera capture
• Up to 16TB raw internal storage capacity across 3 x 3.5" SATA HDD bays
• 256GB internal SSD for OS and system operations
• Dual 1GbE network interfaces for redundancy and bandwidth scaling
• Dual DisplayPort video outputs with HDMI adapter for dual-monitor operation
• Intel Core i3 12th Generation processor with 16GB DDR4 RAM
• Supports Wisenet and ONVIF-conformant IP cameras
• Includes USB keyboard and mouse for immediate deployment

Technical Specifications

• Processing & Memory: Intel Core i3 12th Gen CPU, 16GB DDR4, Windows 10 IoT Enterprise or Ubuntu Linux 20.04 LTS OS
• Connectivity: 2 x 1GbE RJ45 ports (1 on-board, 1 PCIe NIC), 6 USB 3.2 ports, 2 USB 2.0 ports, 2 USB 3.2 Type-C ports, 3.5mm audio, PS/2 keyboard/mouse, serial port
• Power: 550W 80 Plus Gold supply, 100–240V AC input, maximum 550W consumption
• Operating Environment: 5°C to 45°C operating temperature, 20–85% non-condensing humidity
• Build: Tower form factor, black metal chassis, 369mm H x 173mm W x 420mm D, 10.68 kg
• Certifications: UL, cUL, CB, FCC, 80 Plus Gold

Ideal Applications

The WRT-P-3102W is well-suited for enterprise security operations centers, retail networks, educational facilities, government buildings, and critical infrastructure monitoring. Its modular storage design and dual GbE connectivity support growth and redundancy requirements in professional surveillance environments.

Jerry Tildsen

The WRT-P-3102W represents Hanwha's commitment to integrated surveillance solutions, eliminating procurement complexity by bundling professional VMS licenses with certified hardware. The 12th-generation Intel processor paired with 16GB RAM ensures smooth real-time video processing and rule-based analytics, while the dual-NIC design facilitates network isolation for security-critical deployments. The tower form factor and hot-swappable HDD bays simplify field service and capacity expansion.

Pre-loading Wisenet WAVE Professional licenses for four cameras eliminates per-device licensing friction common in modular NVR solutions. The 170 Mbps recording bandwidth accommodates high-resolution (4K-capable) IP camera deployments without bottlenecks. Dual operating system support—Windows 10 IoT Enterprise and Ubuntu Linux—addresses organizational standards and interoperability requirements.

The 550W 80 Plus Gold PSU balances performance headroom with energy efficiency, reducing total cost of ownership over extended deployment lifecycles.
