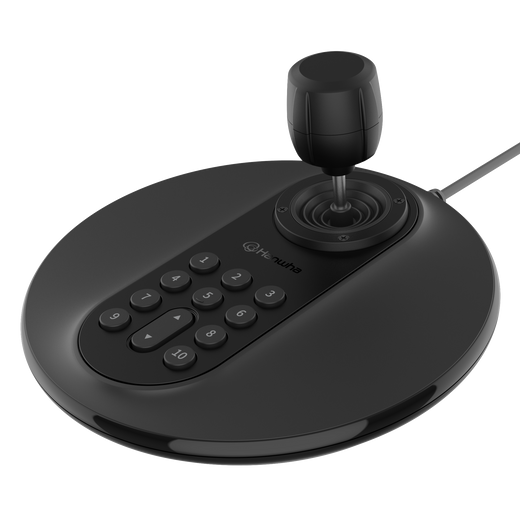

Hanwha SPC-2001 3D Joystick PTZ Controller
Overview
The Hanwha SPC-2001 is a professional-grade 3D joystick controller purpose-built for real-time control of pan-tilt-zoom (PTZ) PTZ cameras in security operations centers and control rooms. This device addresses a specific operational need: operators managing multiple PTZ cameras need tactile, responsive control that minimizes hand fatigue during 8–12 hour shifts. The SPC-2001 delivers this through Hall-effect sensing, ergonomic handle geometry, and USB plug-and-play integration into standard video management platforms.
Unlike cheaper potentiometer-based joysticks that drift or require recalibration, the SPC-2001's Hall-effect mechanism provides drift-free, repeatable positioning — a meaningful advantage when you're tracking a subject across a wide area or fine-tuning focus on a distant object. The controller integrates with any DirectInput-compatible video management system architecture, so you won't face proprietary lock-in.
Key Features
- Hall-Effect 3-Axis Control: Eliminates potentiometer drift over time — important for operators who rely on muscle memory and expect the joystick response to remain consistent shift after shift. No recalibration needed.
- ±28° X/Y Range; ±23.5° Z Range: Provides smooth, proportional camera pan and tilt across the full mechanical envelope without dead zones. The Z-axis handles zoom at the same ergonomic price as pan/tilt.
- 12 Programmable Buttons: Assigns camera-specific functions (focus near/far, iris open/close, preset recall, auxiliary output toggles) directly under operator fingertips — reduces menu navigation and speeds response time during critical incidents.
- Dual Spring Centering in Two Directions: Joystick returns to neutral automatically after release. Prevents accidental drift commands and ensures the operator always knows the control is at rest. Reduces operational errors during high-stress monitoring.
- Ergonomic Polycarbonate Handle with Rubber Button Covers: Designed for extended use without hand cramping. Rubber button covers reduce fatigue on fingertips during rapid, repetitive focus or iris adjustments. Matters in real SOC deployments where operators work 10+ hour shifts.
- 2-Meter USB Cable with Standard Type-A Connector: No proprietary connectors. Works with any USB hub or KVM switch. Cable length allows the controller to sit on a console desk 6+ feet from the workstation PC without extension adapters.
- DirectInput/DirectX Driver Support: Integrates into Milestone XProtect, Genetec, Hanwha SmartVMS, and other ONVIF-based management platforms. No custom software required — simply plug in and configure button mappings in your VMS.
- Compact Desktop Footprint (182 × 182 × 106 mm; 405g): Doesn't dominate a control room desk. Light enough to relocate between workstations if needed, yet solid enough to resist accidental sliding during rapid input sequences.
- DC 5V USB Power; 50mA Operating Current: Draws minimal power from the USB bus — won't strain a shared hub or cause voltage sag on daisy-chained devices. No separate power supply required.
- Operating Torque Range (0.109–0.169 N·m): Balanced resistance that prevents accidental overshooting on pan/tilt commands while remaining responsive under light touch. Reduces operator fatigue compared to stiff or overly loose alternatives.
Integration & Compatibility
The SPC-2001 pairs with any IP-based PTZ camera that supports ONVIF or proprietary protocol bridges. Hanwha PTZ models (Wisenet range) integrate natively; third-party PTZ cameras (Axis, Hikvision, Uniview, Pelco) work through the video management platform's joystick abstraction layer. Confirm your VMS supports DirectInput device assignment before purchase — most major platforms do, but older versions may require a driver update.
Environment & Physical
Operating range of 0°C to +40°C and 20–85% relative humidity makes this suitable for climate-controlled control rooms and indoor security facilities. Not rated for outdoor mounting or dusty warehouse environments — keep it on a climate-controlled console.
Frequently Asked Questions
Q: Does the SPC-2001 work with Milestone XProtect or other non-Hanwha VMS platforms?
A: Yes. The SPC-2001 uses standard DirectInput drivers, which Milestone XProtect, Genetec, Hanwha SmartVMS, and most enterprise VMS platforms support natively. Configure button mappings and joystick sensitivity in your VMS joystick settings. No proprietary software required.
Q: What's the difference between Hall-effect and potentiometer joysticks, and why does it matter?
A: Potentiometer-based joysticks drift over time as internal contacts wear — you'll notice the camera panning slowly in one direction even when you've released the stick. Hall-effect joysticks use magnetic sensors with no moving electrical contacts, so they maintain accurate centering indefinitely. For a control room running 24/7, this eliminates recalibration downtime and frustration.
Q: Can I use the SPC-2001 to control multiple PTZ cameras on a single workstation?
A: Yes. Your VMS assigns the joystick to whichever camera window has focus on the monitor. Switch camera by clicking the window or using keyboard shortcuts. The 12 programmable buttons can be configured per-camera, so button layouts adapt when you switch PTZ sources.
Q: Is there a warranty on the SPC-2001?
A: Warranty terms are not specified in the available product documentation. Contact the manufacturer or your supplier for warranty and RMA details.
Q: What's the cable length, and can I extend it?
A: The standard cable is 2 meters (approximately 6.5 feet). You can extend it using any high-quality USB Type-A active or passive extension cable rated for HID (Human Interface Device) peripherals. Keep total cable run under 10 meters to avoid signal degradation or power drop on the bus.
Q: Does the SPC-2001 work with USB-C or Thunderbolt docking stations?
A: The SPC-2001 has a standard USB Type-A connector. If your workstation uses only USB-C, use a USB-A to USB-C adapter or dock with USB-A pass-through ports. No special drivers needed — treat it as a standard HID device.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SPC-2001 is a purposeful piece of hardware. It's not trying to be a gaming controller or a universal input device — it's engineered specifically for PTZ camera operations in a control room environment. The Hall-effect sensing on the SPC-2001 is the real differentiator here. Over a 12-month period in a busy SOC, a potentiometer joystick will drift and require recalibration every few months. Hall-effect eliminates that maintenance cycle entirely.
Technical Highlights:
- Hall-Effect 3-Axis Sensing: No moving electrical contacts means zero calibration drift. An operator's muscle memory stays valid for years, not weeks. Measured torque range of 0.109–0.169 N·m is balanced for precision without requiring excessive hand pressure.
- 12 Programmable Buttons with Ergonomic Placement: Button-per-function eliminates menu navigation during critical moments. Rubber covers reduce cumulative finger fatigue on repetitive focus or iris commands — real physiology in an 8-hour shift.
- Spring-Centered Return on Two Axes: Automatic neutral return prevents ghosting (continuous camera movement after hand release). Reduces false commands and operator confusion, especially during handover between shifts.
- ±28° Pan/Tilt Range with ±23.5° Zoom Axis: Proportional control across all three dimensions in a single hand position — no mode switching. Faster response when tracking moving subjects.
Deployment Considerations:
- VMS Joystick Support is Essential: DirectInput works in Milestone, Genetec, and Hanwha SmartVMS, but verify your platform's joystick module is enabled and supports button remapping. Some legacy installs or minimal-license VMS versions may require an upgrade.
- Climate-Controlled Indoor Only: Operating range tops out at 40°C and the device is not sealed for dust or moisture. Not suitable for outdoor kiosks, mobile units, or ruggedized field deployments. Control room mounting only.
- USB Bus Power is Tight: At 50mA nominal draw, the SPC-2001 is power-efficient, but if you're chaining multiple USB HID devices on a single hub, verify total load stays under the hub's rated output (usually 500mA for unpowered hubs, 1.5A for powered).
The SPC-2001 makes sense in medium-to-large SOCs with Hanwha PTZ cameras or any ONVIF PTZ asset managed through a modern VMS. If your environment is multi-vendor with mixed PTZ brands and you already run a platform that supports DirectInput mapping, this controller delivers rock-solid performance without vendor lock-in. Skip it if you're operating in an outdoor, mobile, or extreme-temperature environment — it's not designed for that.
