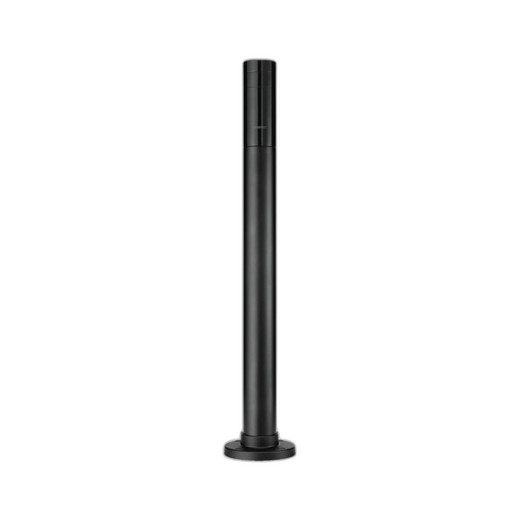

Hanwha SLA-T2480BA Bandit Barrier Lens

Hanwha SLA-T2480BA Bandit Barrier Lens

The Hanwha SLA-T2480BA Bandit Barrier Lens is a specialized surveillance solution designed for banking, retail, and teller environments. This adjustable-height lens assembly delivers wide-angle coverage from a compact, visually discrete form factor that complements modern banking and point-of-sale installations. The system combines professional imaging performance with flexible mounting options to capture critical transaction areas and counter activity from optimal viewing angles.

Key Features

• Adjustable height design (175–737mm) for flexible positioning
• Wide 138° horizontal field of view for comprehensive coverage
• 2.4mm fixed focal length with F2.0 maximum aperture
• Extreme low-light performance: 0.045 Lux color and B/W
• Fixed focus for reliable, maintenance-free operation
• Multiple codec support: H.265, H.264, and MJPEG
• 60fps streaming at 2MP resolution
• 120dB Wide Dynamic Range (WDR) for high-contrast environments
• Built-in SD/SDHC/SDXC card slot (up to 256GB)
• Bi-directional audio capability
• WiseStream II and Hallway View support for bandwidth optimization
• PoE and 12V DC power options
• 8-meter RJ12 cable (field-cuttable)

Technical Specifications

The 1/2.8" CMOS imaging sensor captures high-quality video in both color and monochrome modes with exceptional low-light sensitivity. The F2.0 aperture ensures excellent light gathering in dimly lit banking environments. The 138° horizontal and 73° vertical field of view—expanding to 165° diagonally—provides comprehensive counter and customer activity monitoring without multiple cameras.

Operating temperature range of −10°C to +55°C and humidity tolerance to 90% RH support reliable year-round deployment in climate-controlled retail spaces. The compact main unit (131.1 × 28 × 86mm, 245g) houses intelligent processing, while the modular barrier design accommodates wall, counter, and below-counter mounting configurations.

Design and Installation

The Bandit Barrier combines overt security with aesthetic appeal, featuring a black plastic and aluminum construction that integrates seamlessly into modern banking and retail architecture. The adjustable height mechanism allows installers to position the lens at ideal sightlines for capturing till activity, customer interactions, and entry/exit points. The system is compatible with PNM-9000QB and XNB-6002 platforms.

Ideal Applications

• Bank teller and transaction areas
• Retail point-of-sale environments
• Customer service counters
• High-security access points

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SLA-T2480BA is engineered for mission-critical transaction monitoring where both image quality and discreet deployment matter. The exceptional 0.045 Lux low-light sensitivity ensures facial capture and transaction detail even under harsh fluorescent or mixed lighting typical of retail and banking environments. The 120dB WDR handles the extreme brightness contrasts created by glass partitions, reflective counters, and outdoor-facing windows—common challenges in financial institutions.

The H.265 codec and WiseStream II support deliver significant bandwidth and storage savings without sacrificing frame rate or resolution, critical for organizations managing multiple sites and extended recording retention. Fixed focus eliminates the reliability risks and maintenance overhead of autofocus systems in high-traffic areas. The modular design and field-adjustable cable length simplify retrofit installations in legacy banking infrastructure.
