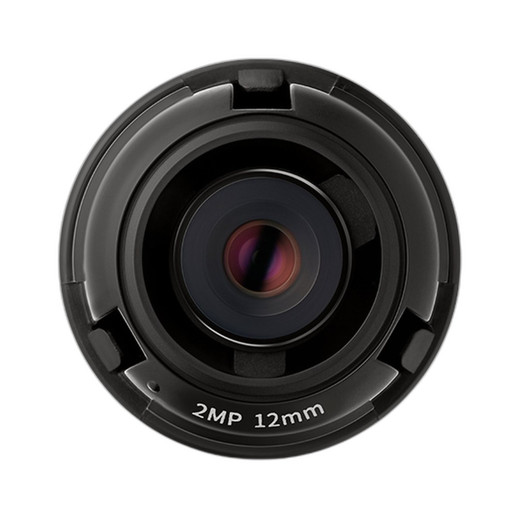

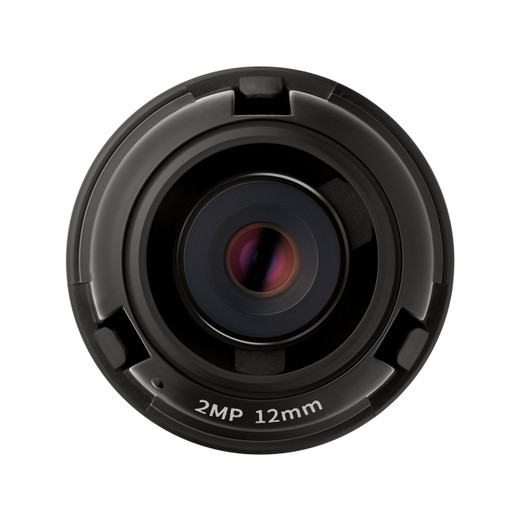

Hanwha SLA-2M1200P 2MP IP Lens Module

Hanwha SLA-2M1200P 2MP IP Lens Module

The Hanwha SLA-2M1200P is a precision-engineered 2MP IP lens module designed for seamless integration with the PNM-9320VQP camera system. This fixed focal length lens delivers exceptional optical performance and clarity, making it an ideal choice for security integrators and system designers looking to optimize their surveillance deployments.

Key Features

• 2MP CMOS Sensor: 1/2.8" CMOS sensor provides excellent image resolution and low-light sensitivity
• Fixed Focal Length: 12.0mm lens optimized for mid-range surveillance applications
• Narrow Field of View: H: 26.3°, V: 14.9° for focused, detailed monitoring of specific areas
• Day/Night Capability: Delivers color imagery in normal lighting and automatic switchover to black and white for 24/7 surveillance
• Low-Light Performance: Minimum illumination of 0.055Lux@F2.0 ensures visibility in dimly lit environments
• PNM-9320VQP Compatible: Direct compatibility ensures hassle-free installation and optimal performance

Technical Specifications

• Sensor Type: 1/2.8" 2MP CMOS
• Focal Length: 12.0mm (fixed)
• Horizontal Field of View: 26.3°
• Vertical Field of View: 14.9°
• Minimum Illumination: 0.055Lux@F2.0 (Color), Black/White (2MP lenses)
• Lens Type: Fixed focal
• Form Factor: Lens Module

Applications

The SLA-2M1200P is well-suited for perimeter monitoring, parking lot surveillance, facility entrances, and other applications requiring focused coverage with excellent detail capture. The narrow field of view is particularly effective for long-distance observation where zoomed-in clarity is essential. The day/night functionality ensures continuous operation in varying lighting conditions.

Karl Wilson

The 12.0mm focal length paired with a 26.3° horizontal field of view positions this lens module in the telephoto category, ideal for applications where you need to capture fine details from a distance rather than broad area coverage. The 1/2.8" CMOS sensor is a proven technology in professional surveillance, offering an excellent balance between resolution and low-light sensitivity. At 0.055Lux@F2.0, this lens maintains color reproduction in surprisingly low illumination, reducing reliance on infrared supplementation.

Integration with the PNM-9320VQP guarantees optical and mechanical alignment without calibration concerns, reducing deployment time and potential compatibility issues. This lens module is particularly valuable in fixed-installation scenarios where field of view requirements are well-defined and the application demands precision imaging over broad coverage.

What's Included

• 1x Hanwha SLA-2M1200P 2MP Lens Module
