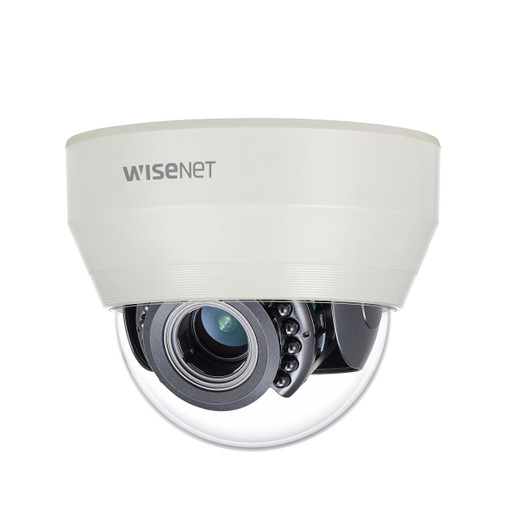

Hanwha SCD-6085R 2MP Indoor AHD IR Dome Camera
The SCD-6085R is a 2MP AHD dome camera engineered for coaxial surveillance infrastructure — no network upgrade required. It outputs 1920x1080 video at 30fps over standard 5C2V coaxial cable up to 500 meters, making it a practical cost-control option when replacing analog systems or expanding hybrid deployments. This compact dome (119.8mm diameter, 98.5mm height) integrates discreetly into retail, office, warehouse, and educational facilities where aesthetic continuity matters and infrastructure replacement budgets don't exist.
Key Features
- 2MP AHD at 30fps (1920×1080): Delivers fluid 1080p video over existing coaxial runs. AHD protocol means no additional cabling, no PoE switches, no network reconfiguration — a real advantage when you're retrofitting or working in budget-constrained environments.
- 3.1x varifocal lens (3.2–10mm, F1.6 aperture): Field of view ranges from 110° (wide) to 32° (telephoto). The F1.6 maximum aperture captures more light per photon, translating to better detail in dimly lit retail aisles or warehouse corners without pushing ISO or relying entirely on IR.
- Infrared illumination up to 65 feet: Auto Day/Night mode switches to 850nm IR when ambient light drops. On the SCD-6085R, this means you cover the full 24-hour cycle without manually toggling modes — particularly useful in unmanned warehouse sections or 24/7 retail environments.
- 0.11 Lux color sensitivity, 0 Lux with IR on: Low-light color performance remains operational at the low end of twilight conditions. Once IR engages, the camera switches to monochrome but continues recording cleanly — no loss of video stream, just a modal shift aligned with how human eyes adapt at night.
- DC auto iris lens with electronic shutter (1 to 1/12,000 seconds): Adaptive brightness control prevents blown-out scenes when sunlight streams through windows or when a forklift's LED floods the dock. The electronic shutter fine-tunes exposure frame-by-frame, reducing the need for secondary lighting adjustments.
- Advanced video processing (SSNR IV, DWDR, HLC, BLC modes): SSNR IV noise reduction keeps footage clean in low-light without smearing motion. DWDR (Dynamic Wide Dynamic Range) recovers shadow detail when a bright window competes with dark shelving. HLC (Highlight LED Compensation) cuts glare from badge readers or LED signage. These aren't gimmicks — they're practical image enhancement when you can't control the scene.
- 4 motion detection zones + 8 privacy masking zones: Segment motion alerts to ignore false triggers in high-traffic areas while focusing on restricted zones. Privacy masking lets you gray out sensitive displays (PIN pads, cash registers) to satisfy compliance audits without losing the camera feed entirely.
- Defog technology: Useful in loading docks or areas with condensation. Optical clarity improves when the camera detects fog or moisture on the lens or in the air.
- AC 24V or DC 12V power, low current draw (0.45A AC / 0.46A DC): Flexible power input adapts to existing infrastructure. Power consumption under 6W means you won't strain transformer capacity or require oversized cables in long runs.
- Operating range –10°C to +55°C: Suitable for indoor spaces — from climate-controlled offices down to unheated loading docks in winter or non-refrigerated warehouses in summer.
Integration & Compatibility
The SCD-6085R uses ACP (AHD Coax Protocol) for standard HD transmission and remains compatible with Pelco-C (Coaxitron) protocol. If your DVR or recorder supports AHD input, this camera plugs straight in. No ONVIF, no network stack, no VMS licensing — just analog-era simplicity at 1080p resolution. Pan/tilt/rotate capability (350°/67°/355° respectively) allows flush or angled mounting without optical loss, important when ceiling or wall geometry limits how the dome can sit.
When to Choose a Different Model
If you need network video, IP-based analytics (people counting, facial detection), or cloud integration, the SCD-6085R is not your device — it is a coaxial camera designed for closed-loop HD-over-coax deployments. For outdoor use, rain, or salt spray environments, choose an outdoor variant or a higher-durability family member. If you require 4K or high-frame-rate motion capture, look to higher-megapixel AHD siblings in the Hanwha surveillance line.
Detection & Recognition Performance
At standard resolution metrics (25PPM per 8PPF), the SCD-6085R detects motion at 87.89 feet in wide mode and 439.36 feet in telephoto. Full identification range (250PPM per 76PPF) resolves facial or object detail to 8.79 feet wide and 43.94 feet telephoto. These ranges guide placement decisions: position the camera so your zone of interest (cashier, entrance, dock door) falls within identification distance, not just detection distance.
Frequently Asked Questions
Q: Does the SCD-6085R work with my existing coaxial DVR?
A: Yes, provided your DVR supports AHD or ACP input. The SCD-6085R is compatible with AHD recorders and systems using standard coaxial infrastructure. Check your DVR's spec sheet for AHD channel support.
Q: What's the maximum cable run on coaxial?
A: Up to 500 meters on standard 5C2V coaxial cable without signal conditioning. Beyond that distance, you will need amplifiers or repeaters to maintain video quality.
Q: Can I use a different power source than AC 24V or DC 12V?
A: The SCD-6085R is rated for AC 24V or DC 12V only. Do not exceed these voltage ranges or use alternative supplies — this will void the warranty and risk damage.
Q: Does the IR illumination work outdoors?
A: The SCD-6085R is rated for indoor use only. Outdoor environments expose the optics and electronics to weather stress beyond the camera's environmental specification (–10°C to +55°C). For outdoor deployments, select an outdoor-rated model.
Q: What frame rates does the SCD-6085R support?
A: 30 fps at full 1080p resolution (1920×1080). Lower frame-rate modes may be available via DVR settings, but 30fps is the native output.
Q: Is there a warranty included?
A: Warranty coverage is dependent on your reseller or regional distributor. Contact the vendor for warranty terms and support options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SCD-6085R represents the practical middle ground in coaxial surveillance: it delivers 1080p performance without forcing you to rip out and replace existing infrastructure. If you're managing a hybrid migration (some cameras IP, others still analog) or working on a budget where network upgrades are off the table, this camera earns its place. The combination of a 3.1x varifocal lens, F1.6 aperture, and 0.11 Lux color sensitivity means you get genuine flexibility in framing and low-light performance — not every AHD dome offers this level of optical control.
Technical Highlights:
- 500m coaxial transmission: Standard 5C2V cable carries the video signal without intermediate converters or amplifiers up to half a kilometer. Simplifies long-run deployments in warehouses or campuses where running new network cable would be prohibitively expensive.
- Electronic shutter range 1 to 1/12,000 seconds: Frame-by-frame exposure control prevents blooming when a bright object enters the scene. Paired with DWDR and HLC, this addresses real-world lighting chaos: parking lot fixtures, sunlit windows, and LED signage all in one frame.
- 0.11 Lux at F1.6, 0 Lux with IR: Color video remains usable down to deep twilight. Once IR kicks in, you transition to monochrome but maintain consistent motion detection and recording — no black frames, no video gaps.
- SSNR IV noise reduction: Suppresses the grain that plague low-light analog systems. Keeps forensic detail intact during night-shift incidents.
Deployment Considerations:
- Coaxial-only: No PoE, no IP network, no cloud fallback. If your DVR loses power or the coax line is cut, you lose the signal. Plan your power and cabling accordingly — UPS protection on the recorder is non-negotiable in high-availability settings.
- Indoor rating limits placement: The –10°C to +55°C operating range and indoor-only durability mean unheated loading docks or outdoor overhangs are off-limits. Exposed electrical connections and bare optics won't tolerate frost or rain splash.
- AHD protocol lock-in: Once deployed, switching to IP video means replacing not just cameras but also the entire backend. This is acceptable in stable retail or office environments; less so in organizations planning rapid modernization.
Best fit: retail chains with established coaxial infrastructure, small-to-mid warehouses where network deployment is deferred, and office facilities where DVR refresh cycles are predictable and CapEx is staged. For greenfield deployments or organizations already on IP, this camera is backward-looking by design — and that's fine if it saves you six figures in infrastructure cost.
