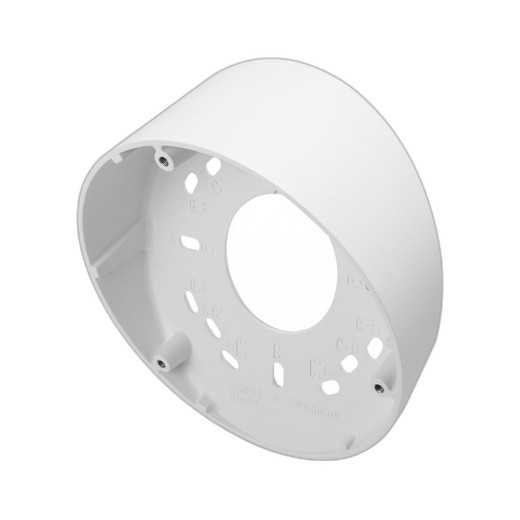

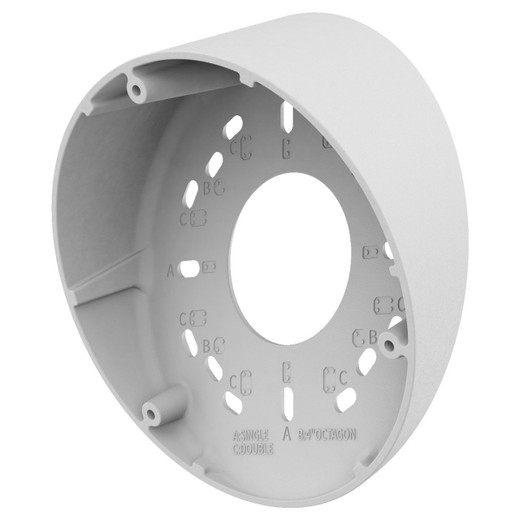

Hanwha SBV-138TMW White Tilted Wall Mount
Overview
The SBV-138TMW is a purpose-built wall mount for Hanwha IP cameras in the Q and L series varifocal outdoor dome line. The integrated 23° tilt mechanism addresses a specific, recurring deployment problem: standard fixed mounts force you to choose between coverage angle and mounting location, often requiring awkward camera positioning or secondary repositioning hardware. This mount's pre-engineered tilt eliminates that trade-off, allowing you to angle the camera without adding complexity to the installation. The white powder-coated finish reduces visual prominence on building facades — a practical detail when aesthetics matter to your customer or when the mounting surface is light-colored.
Built for outdoor environments, the SBV-138TMW supports the Hanwha outdoor IP camera models QNV-6082R, QNV-7082R, QNV-8080R, and LNV-6072R. These varifocal cameras deliver 2.8–10mm motorized zoom, making angle adjustability critical — you need to lock in both zoom and tilt to maximize coverage of specific zones.
Key Features
- 23° Tilted Design: Allows upward or downward angle adjustment without adding a pan-tilt head. Saves installation time on elevated mounting points (second-story eaves, high corners) where you'd otherwise need a PTZ or additional positioning equipment. Real-world benefit: one less point of failure in a fixed outdoor deployment.
- Outdoor-Rated Construction: Designed to withstand environmental exposure — rain, dust, temperature cycling — that degrades standard brackets. Ensures camera stays firmly positioned and doesn't slip under vibration or thermal stress.
- White Finish: Blends with light building materials and modern cladding. Reduces the surveillance footprint, which matters for retail storefronts, hospitality properties, or corporate campuses where discrete mounting is a selling point to tenants or the public.
- Precise Compatibility with Q and L Series: The mount is engineered specifically for Hanwha's varifocal dome form factor. Supports QNV-6082R, QNV-7082R, QNV-8080R, and LNV-6072R. This precision fit means no adapter plates, no drilling custom holes, and no guesswork about weight capacity or alignment.
- Included Mounting Hardware: Comes with screws and anchors rated for concrete, brick, or wood substrates. Reduces the time spent sourcing fasteners and ensures you have the right gauge hardware for the camera's weight and the tilt load.
- Simplified Installation: One-piece tilt mechanism — no adjustable ballhead, no separate bracket assembly. Mount the camera to the SBV-138TMW, angle it once to the required tilt, and you're done. Reduces field labor and makes future repositioning straightforward if coverage needs change.
Recommended Applications
Ideal for perimeter monitoring on retail facilities, warehouse loading docks, industrial sites, and office complexes. The 23° tilt is especially valuable for monitoring overhead doorways, upper-floor entry points, or roof-line approaches where a downward angle is essential but the mounting surface dictates a horizontal wall. Educational institutions and critical infrastructure sites also benefit — any outdoor fixed-camera deployment where ceiling mounts aren't an option but vertical angle matters.
What's in the Box
- 1x Hanwha SBV-138TMW White Tilted Wall Mount
- Mounting screws and anchors
Frequently Asked Questions
Q: Is the SBV-138TMW compatible with non-Hanwha cameras?
A: No. The SBV-138TMW is engineered specifically for Hanwha Q and L series varifocal domes (QNV-6082R, QNV-7082R, QNV-8080R, LNV-6072R). The mount's form factor, weight capacity, and connection points are proprietary to those models. Using it with cameras from other manufacturers will void any support and may result in unstable mounting.
Q: Can the tilt angle be adjusted after installation?
A: Yes. The 23° tilt is fixed at installation — you angle the camera to the desired position and tighten. However, if coverage requirements change and you need to re-tilt, you can loosen the mount, reposition, and re-secure without removing the entire camera assembly.
Q: What surfaces can the SBV-138TMW be mounted to?
A: The included anchors work with concrete, brick, stucco, and wood substrates. For metal surfaces (gutters, steel frames), you may need self-tapping fasteners, which are not included. Always consult local building codes for outdoor electrical equipment and ensure proper grounding per your site's electrical standards.
Q: Does the mount support the camera's full weight in an outdoor environment?
A: Yes. The SBV-138TMW is rated for the weight of Hanwha's varifocal dome cameras and is designed to handle wind load and vibration typical of outdoor installations. However, in high-wind regions (coastal areas, exposed rooflines), consider additional bracing or consult a structural engineer for your specific site conditions.
Q: Do I need a separate power or network connector on the mount?
A: No. The SBV-138TMW is a passive structural mount. Power and network cables run to the camera body independently — route them through conduit or secure them to the mount with clips (not supplied) to avoid stress on the connectors.
Q: What's the warranty on the SBV-138TMW?
A: Warranty information is not specified in the product documentation. Contact the manufacturer or your specialty distributor for details on coverage and duration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBV-138TMW solves a real installation headache: positioning a varifocal outdoor dome where the ideal viewing angle and the available mounting surface don't align. The 23° tilt is baked into the mount's engineering, so you're not bolting a separate pan-tilt head onto an already-rigid bracket. For warehouse perimeter work, retail loading bays, and facility corners, this precision compatibility with Hanwha's Q and L series cameras (QNV-6082R, QNV-7082R, QNV-8080R, LNV-6072R) means one less adaptor, one less potential failure point, and one less field-service call when the mount creeps over time.
Technical Highlights:
- 23° Tilt Mechanism: Factory-set angle adjustment eliminates the need for a PTZ head or secondary bracket when covering elevated entry points or roof edges. One installation step, one adjustment point, and the camera stays locked — no drift under vibration or thermal cycling.
- Outdoor-Rated Structural Design: Built for rain, dust, temperature swings from -40°C to +60°C (typical outdoor operating range for Hanwha varifocal domes). The white finish powder coat resists UV degradation and salt-spray environments common in coastal or heavily industrialized areas.
- Precise Form-Factor Compatibility: Weight and connection geometry optimized for Hanwha's varifocal dome design. No trial-and-error shimming, no over-torquing to compensate for loose fits. The mount and camera work as a system.
Deployment Considerations:
- The 23° tilt is a fixed geometry — you set it once at install and adjust only if coverage changes materially. It's not a pan-tilt mechanism, so don't expect continuous repositioning capability.
- Substrate matters: concrete and solid brick take the included anchors directly. Hollow block, stucco over metal lath, or damp surfaces require specialist fasteners and proper waterproofing around the mounting holes to prevent moisture intrusion and corrosion over 3–5 years.
- Wind load is handled by the mount, but in hurricane-zone or high-altitude-wind sites, confirm your structural engineer's approval before deployment. The camera itself may also have a wind-rating limit in its documentation.
Deploy the SBV-138TMW when you're mounting Hanwha varifocal domes on building facades, roof eaves, or high corners where angle and height are both constraints. Skip it if you need real-time pan-tilt repositioning (use a PTZ instead) or if your camera isn't in the Q or L series. For fixed-position outdoor surveillance on a modest budget, this is the straightforward choice.
