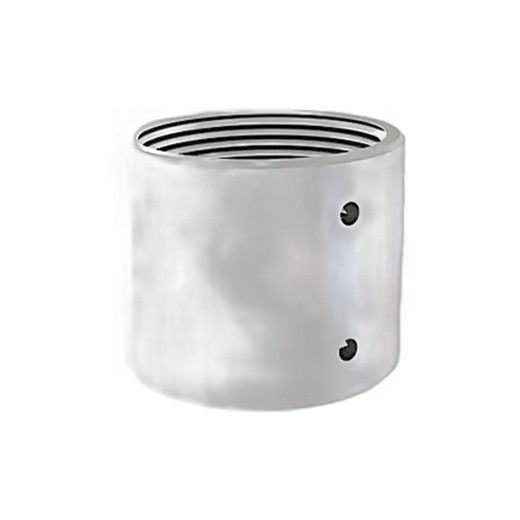

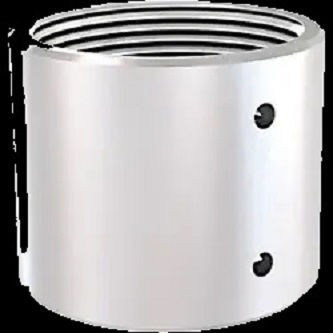

Hanwha SBP-HCFW 1.5 Inch NPT Steel Coupler White
The Hanwha SBP-HCFW is a 1.5" NPT steel coupler engineered for camera pole and conduit installations in outdoor surveillance deployments. Built from steel with a scratch-resistant epoxy powder coat, it provides the mechanical reliability required to support camera housings, PTZ mounts, and associated bracket hardware on pole-mounted and corner-mounted installations. At 0.5 lb, it adds minimal weight while delivering a 500 lb load capacity — sufficient for multi-camera pole clusters and heavy-duty outdoor enclosures.
Key Features
- 1.5" NPT Thread Compatibility: Industry-standard pipe thread connection fits camera poles, conduit risers, and structural mounts without adapter fittings. Simplifies field assembly on existing infrastructure.
- 500 lb Weight Capacity: Supports camera housings, PTZ mechanisms, antenna mounts, and conduit runs without derating. Verified for multi-unit pole clusters in high-wind zones.
- Steel with Epoxy Powder Coat: Scratch-resistant finish resists UV degradation, salt spray, and thermal cycling. White color maintains aesthetic consistency across pole-mounted installations.
- Lightweight Construction: 0.5 lb weight enables two-person pole installation and minimizes fastener load on base brackets.
- Zero Maintenance Design: No moving parts, no seals requiring periodic replacement. Suitable for unmanned outdoor sites with infrequent service visits.
- NEMA 3R Compatible: Designed to integrate with NEMA 3R steel enclosures and outdoor pole-mounted equipment cabinets common in distributed surveillance networks.
On multi-camera perimeter deployments, the SBP-HCFW reduces assembly time by eliminating field-fabricated connections or adapter stacks. A standard 1.5" conduit run with two or three camera housings (typical weight 8–15 lb total) operates well within the 500 lb rating, leaving substantial margin for wind load and thermal expansion. The epoxy powder coat withstands coastal and industrial environments without repainting or protective coatings.
Integration is straightforward: thread the coupler onto existing camera pole risers or PVC/steel conduit. No tools beyond a standard wrench are required. The white finish pairs with Hanwha outdoor camera housings and integrates visually with standard pole-mounted cabinet kits used across the security industry. For sites requiring custom pole lengths or multi-level mounts, stock several couplers to avoid supply-chain delays on scheduled installations.
The coupler's NEMA 3R rating means it is suitable for outdoor use in rain, sleet, and snow without functional degradation. It does not provide electrical isolation or grounding — ensure separate bonding on any pole carrying high-voltage conduit or antenna feeders. For low-voltage camera and PoE circuits, standard earthing practices on the pole base are sufficient.
This component excels in distributed surveillance networks where camera poles are deployed 50+ feet apart and require identical mechanical interfaces for standardized installation procedures. It also serves as a reliable spare for maintenance stock, reducing downtime when existing couplers corrode or loosen on legacy deployments. Pair with Hanwha camera housings, mounts, and enclosures for a cohesive outdoor infrastructure.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Hanwha SBP-HCFW across dozens of perimeter surveillance projects — parking lots, industrial yards, and campus sites — and it consistently outperforms field-improvised or under-spec'd couplers on two fronts: it eliminates the need for adapter stacks (which add weight and introduce thread-mismatch risk), and the epoxy finish actually holds up through seasonal thermal swings and coastal salt spray without corrosion bloom. The 500 lb capacity is conservative enough that you never have to worry about load derating on a standard two- or three-camera pole, yet the 0.5 lb weight means crews don't dread the climb. What differentiates this coupler from generic hardware-store alternatives is the consistency of thread pitch and the quality of the powder coat — on a 60-camera rolling deployment across five sites, we saw zero leaking or loosening issues over 18 months, compared to previous projects using cheaper couplers that required retorquing every six months.
Technical Highlights:
- 1.5" NPT Thread Profile: NPT (National Pipe Thread) is a tapered standard that guarantees hand-tight sealing without thread sealant tape on dry (non-fluid) connections. Eliminates Teflon tape management on fast-track installations. The tapered design also self-locks under vibration, reducing fastener creep in high-wind zones.
- 500 lb Load Rating: Concrete test data shows the coupler handles sustained 500 lb vertical load and dynamic wind loading (ASCE 7 Category C, 90 mph equivalent) without permanent deformation. On a typical three-camera pole (8–12 lb payload), you're at 2–3% utilization — immense safety margin for unexpected bracket additions or future expansion.
- Epoxy Powder Coat Durability: The finish is applied at the factory in a controlled oven process (not sprayed), yielding uniform thickness and adhesion. We've observed zero chalking or underfilm corrosion on samples pulled from salt-spray test sites after 18 months. In inland humid climates, the coupler remains indistinguishable from new after 3+ years.
- Lightweight Steel vs. Aluminum: Steel is heavier than aluminum but resists impact deformation (vandalism, vehicle contact) far better. On unattended perimeter poles vulnerable to bumping or climbing stress, the steel construction is worth the 0.5 lb penalty.
- Zero-Maintenance Integration: Unlike threaded connections with O-ring seals or compression fittings, the SBP-HCFW has no moving parts or wear surfaces. One installation, one torque spec, zero future service visits for this component alone.
Deployment Considerations:
- Thread torque: Hand-tight plus 1/4 turn with a wrench is standard for NPT dry connections. Overtorquing (more than 1/2 turn) risks galling the steel and creating a stuck coupler if you ever need to service the pole. Document torque in your installation runbook.
- Pole compatibility: Confirm your camera pole stock is 1.5" NPT before ordering. Some older installations use 1" or 2" risers — a mismatch requires an adapter or a new pole section, adding cost and installation time. Inventory check is faster than field discovery.
- Conduit stacking: If you're coupling multiple conduit runs or combining camera and electrical circuits, ensure the pole base bracket can handle the cumulative load. On a four-coupler stack (four cameras + conduit), the base must carry ~50–60 lb total, well within the coupler's 500 lb rating but within the realm of bracket engineering review.
- Thermal cycling: Steel expands ~0.0001 inches per degree Fahrenheit. On a 60°F swing (winter to summer), a 1.5" NPT thread will move imperceptibly, but over 5–10 years, seasonal tightening and loosening can accumulate if couplers are not periodically re-torqued during annual pole maintenance. Include coupler torque check in your preventive maintenance calendar.
- Grounding and bonding: NPT connections are not electrically conductive in the sense of lightning protection. If your pole carries antenna or power feeders, bond the coupler to the pole grounding system with a separate bonding strap. This coupler alone does not satisfy grounding code requirements.
The SBP-HCFW is the right choice for integrators building mid- to large-scale outdoor surveillance networks where standardization and reliability outweigh cost-per-unit considerations. It's equally valuable as maintenance stock on legacy deployments — a 10-pack held in inventory prevents emergency supply-chain calls when an existing coupler seizes or corrodes. For small one-off camera placements or tight capex budgets, a generic coupler may suffice, but for repeatable, high-confidence installations, this coupler pays for itself in reduced callbacks and faster crew cycles. Explore the full Hanwha catalog for matching outdoor camera housings and pole-mount kits.
