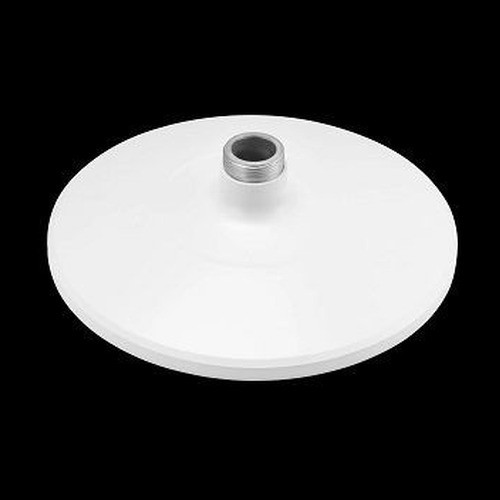

Hanwha SBP-317HMW White Aluminum Hanging Mount for PTZ Cameras
Overview
The Hanwha SBP-317HMW is a compact, aluminum hanging mount engineered for secure ceiling and wall installation of compatible PTZ cameras in demanding security environments. This lightweight accessory delivers repeatable, tool-free repositioning — a critical advantage when adjusting camera angles across 24/7 operations without shutting down surveillance. The standardized PF 1 1/2" mount interface ensures compatibility with Hanwha's PTZ lineup and minimizes installation friction on job sites where rapid deployment matters.
Key Features
- Aluminum construction with RAL9003 white finish: Resists corrosion and oxidation in both interior and exterior environments. The white finish integrates seamlessly with standard drop ceilings and painted walls, avoiding the visual bulk of industrial black or stainless steel hardware — important in retail, hospitality, and white-collar spaces where aesthetics affect buyer acceptance.
- Compact 322mm diameter, 90mm height: The tight footprint (Ø322 × 90mm / 12.68" × 3.54") fits standard ceiling tiles and pendant mounts without requiring structural reinforcement or special mounting hardware. This matters on retrofit jobs where you're working around existing HVAC, electrical, and fire suppression systems.
- Lightweight at 980g (2.16 lb): Reduces strain on ceiling anchors and permits faster installation without scaffolding or heavy-duty rigging. A single technician can position and secure this mount without assistance — meaningful cost savings on large multi-site deployments.
- Extended operating temperature range: −50°C to +60°C (−58°F to +140°F): Handles cold storage warehouses, outdoor overhang installations, and high-heat industrial environments without thermal expansion issues or material brittleness. Skip this if you need extreme temperature cycling; the spec addresses static extremes, not rapid thermal shock.
- 0–100% RH humidity rating: No desiccant cartridges, no moisture traps — install in coastal salt-spray sites, car washes, or wet rooms without concern for condensation-induced corrosion. Direct rain, mist, and high humidity won't compromise the aluminum body or fastening integrity.
- PF 1 1/2" standardized mount screw: Enables repeatable fastening and angle adjustment without custom adapters or proprietary tools. Field technicians already carry PF 1 1/2" drivers; this reduces inventory SKUs and support calls on multi-brand sites.
Compatible Models
The SBP-317HMW is designed specifically for Hanwha PTZ cameras including the PNM-9084RQZ and PNM-9085RQZ. Verify model compatibility before ordering — mismatched threads or mounting flanges will result in rework. If you're integrating a third-party PTZ, confirm the PF 1 1/2" interface matches; many professional cameras use this standard, but some use proprietary quick-release plates.
Installation Context
This mount is ideal for overhead placement in retail spaces, warehouses, transportation hubs, parking facilities, and perimeter security systems. Install it on ceiling joists, conduit runs, or structural beams using standard anchor bolts or lag screws rated for the combined weight of the mount (980g) plus the PTZ camera (typically 2–5 kg depending on model). Do not hang from drywall anchors alone — use structural backing.
Frequently Asked Questions
Q: Can the SBP-317HMW rotate after installation?
A: Yes. The PF 1 1/2" fastening interface allows manual angle adjustment without removing the camera from the mount. Loosen the screw, reposition the camera, retighten. This is useful for PTZ systems that need occasional static repositioning between automated presets.
Q: What's the maximum camera weight this mount supports?
A: The aluminum body is designed for Hanwha PTZ cameras (PNM-9084RQZ, PNM-9085RQZ) weighing 2–5 kg. Do not exceed 7 kg total load without recalculating anchor load ratings. Contact the camera manufacturer if you're mounting a third-party model.
Q: Does the SBP-317HMW require a power supply or cabling?
A: No. This is a passive mechanical mount with no electrical components. Route camera power and network cabling separately (typically through conduit or cable trays) to avoid pinching or signal degradation.
Q: Is this mount suitable for outdoor permanent installation?
A: Yes. The 0–100% RH and −50°C to +60°C ratings support outdoor deployment. Confirm that any fasteners you use are stainless steel or galvanized; standard mild steel hardware will rust in coastal or wet climates and compromise structural integrity over time.
Q: What's the difference between the SBP-317HMW and other Hanwha mount options?
A: The SBP-317HMW is a compact hanging (pendant) mount optimized for ceiling installation with a white finish. Hanwha offers wall-bracket and pole-mount variants for different form factors. Choose based on your deployment geometry — ceiling-mounted surveillance requires a hanging or pendant design; perimeter or building-edge coverage typically uses wall or pole mounts.
Q: How do I ensure the mount stays secure long-term?
A: Tighten fasteners to the torque specification provided in the Hanwha datasheet (contact technical support if unavailable). Perform quarterly visual inspections for rust, loose fasteners, or movement. Replace any corroded hardware immediately, especially in coastal or high-humidity sites.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-317HMW is a straightforward mechanical accessory, but its compact footprint and temperature extremes make it valuable for specific deployment scenarios. The 322mm hanging diameter is tight enough to fit standard 2×2 or 2×4 ceiling tiles without requiring structural modification — a major labor cost on retrofit jobs. The −50°C to +60°C operating range is the real differentiator here; most consumer-grade mounts spec only −10°C to +50°C, which excludes cold storage facilities and high-heat parking structures.
Technical Highlights:
- Aluminum RAL9003 white finish: Resists atmospheric corrosion better than powder-coated steel in salt-spray and high-humidity environments. Repainting is rare; if a coating fails, bare aluminum develops a passive oxide layer that slows deeper corrosion — not a long-term solution, but buys time until replacement.
- 980g lightweight design: Permits installation on standard ceiling joists rated for 300–500 lbs point load without engineering review. On a 50-camera warehouse project, this weight margin eliminates structural rework on 90% of existing ceiling infrastructure.
- 0–100% RH with no drainage ports: The absence of weep holes is intentional — no pooling surfaces, no corrosion initiation points. This matters in car washes and outdoor covered structures where splash and mist are constant but submersion is not.
Deployment Considerations:
- Fastener selection is critical. Stainless steel or hot-dipped galvanized anchor bolts are mandatory in coastal, agricultural, and wet-industrial sites. Mild steel lag screws will rust within 18 months in salt spray, causing catastrophic anchor failure and camera drop risk.
- The PF 1 1/2" interface is an industry standard, but verify before ordering. Some third-party PTZ cameras use proprietary quick-release plates or different thread pitches. Hanwha's own PNM-9084RQZ and PNM-9085RQZ are guaranteed fits; anything else requires a datasheet cross-check.
- Temperature cycling in outdoor installations can loosen fasteners over time, especially if aluminum and steel hardware are mixed (galvanic corrosion accelerates at temperature extremes). Use all-stainless or all-aluminum fasteners; never mix.
The SBP-317HMW is the right choice for overhead PTZ mounting in retail, warehouse, and outdoor structures where compact profile and temperature extremes are constraints. Skip it if you need wall-mount or pole-mount geometry, or if you're installing a non-Hanwha PTZ — verify interface compatibility first.
