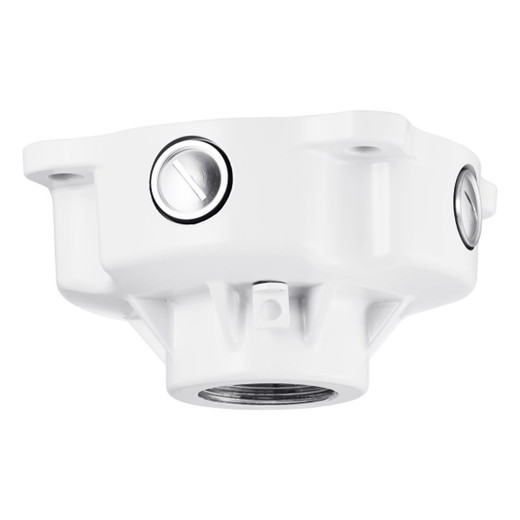

Hanwha SBP-302CMBW White Pendant Mount Back Box
Overview
The Hanwha SBP-302CMBW is a professional pendant mount back box engineered to support secure ceiling installation of compatible Hanwha IP cameras. Built from aluminum alloy, this mounting enclosure isolates and protects camera wiring and connections from environmental exposure — critical in retail, office, warehouse, and outdoor surveillance deployments where cable integrity directly impacts system reliability. The pendant configuration allows flexible positioning without wall penetration, making it ideal for retrofit installations or environments where structural constraints limit traditional surface or flush mounting.
Key Features
- Aluminum Alloy Construction: Resists corrosion and mechanical damage in both heated and unheated spaces. Lighter than steel alternatives but maintains rigidity to support camera weight without sagging over time.
- IP66 Environmental Rating: Blocks direct water spray and dust ingress — suitable for covered outdoor areas and humid indoor spaces (parking structures, loading docks, industrial facilities). Not rated for full submersion; if your site requires submersion resistance, specify an IP67-rated alternative.
- Operating Temperature Range -40°C to 60°C (-40°F to 140°F): Accommodates both heated office buildings and unheated warehouses, cold-storage facilities, and outdoor installations in harsh climates without thermal cycling damage to enclosure seals.
- Compact Dimensions (273 mm × 221 mm / 10.75 in × 8.7 in): Fits tight ceiling cavities and above drop ceilings. Small profile minimizes visual prominence in white-finish environments (retail, corporate offices).
- White Finish: Blends with standard drywall and suspended ceilings. Reduces visual contrast in modern architectural settings where dark mounts draw attention.
- Low Weight (2.2 kg / 4.85 lbs): Single installer can position and secure without additional lifting equipment. Minimal strain on ceiling grid or mounting hardware.
Compatibility
The SBP-302CMBW is compatible with Hanwha Techwin X, Q, P, and Wisenet series IP cameras. Confirm your specific camera model in the camera selection guide before ordering to ensure proper fit and electrical routing. Pendant mounting is not suitable for PTZ cameras or units requiring frequent repositioning.
Deployment Context
This back box is a supporting component for ceiling and pendant camera mounting systems. It does not contain power distribution or network switching — plan PoE power delivery separately based on your camera's wattage and cable run distance. Integrate with network video recorders or management platforms using standard ONVIF connectivity.
Frequently Asked Questions
Q: Can I use the SBP-302CMBW outdoors in direct rain?
A: IP66 protects against spray and splash, but not sustained direct rainfall or submersion. Install under a soffit, overhang, or protective canopy. For fully exposed outdoor sites, verify roof/mounting structure stability during installation.
Q: What camera models work with the SBP-302CMBW?
A: Hanwha Techwin X, Q, P, and Wisenet series. Check your camera's mechanical mount points against the back box template before purchase.
Q: Is the white finish durable, or does it yellow/discolor over time?
A: Aluminum with powder-coat finish resists UV degradation and yellowing better than plastic. Dust accumulation in dusty environments (agriculture, HVAC exhaust areas) may require periodic cleaning.
Q: Does the back box include cable glands or weatherproof connectors?
A: The back box provides the enclosure structure. Cable glands, RJ45 connectors, and power terminals are supplied separately or included with your specific camera installation kit.
Q: Can I stack or daisy-chain multiple back boxes on a single ceiling mount point?
A: No. Each back box requires its own independent mechanical support. Stacking creates unbalanced load distribution and increases risk of catastrophic collapse.
Q: What is the maximum cable load the pendant mount supports?
A: The back box is rated for the camera unit itself (typically 0.8–1.5 kg) plus the weight of internal cabling. Confirm with your camera weight and cable count; oversizing creates fatigue on pendant hardware.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-302CMBW is a support component, not a primary device, but it carries real weight in deployments where wiring protection and thermal stability are non-negotiable. The IP66 rating combined with the -40°C to 60°C operating range makes this back box viable in environments that disqualify cheaper plastic alternatives — unheated warehouses, cold-storage entries, and covered outdoor loading areas. Aluminum construction means no brittle failure in sub-zero conditions, and no moisture-induced warping as humidity swings from 5% to 90%.
Technical Highlights:
- IP66 + Aluminum: Direct water spray and airborne dust are blocked; corrosion resistance outlasts painted steel by 3–5 years in coastal or high-humidity environments without active maintenance.
- Thermal Range -40°C to 60°C: Eliminates thermal cycling cracking common in plastic enclosures — matters for 24/7 outdoor deployments where day/night delta exceeds 40°C.
- Weight 2.2 kg: Low enough for solo ceiling installation; heavy enough to provide mechanical stability without additional bracing on standard ceiling grid systems.
Deployment Considerations:
- Confirm camera mechanical compatibility before ordering — mount point spacing and electrical routing vary across Hanwha camera lines. A mismatch forces rework.
- IP66 is splash/spray only — do not deploy directly under HVAC condensation drip or in submersion-prone areas. Verify roof pitch and gutter drainage before ceiling installation.
Choose the SBP-302CMBW for retrofit ceiling installations in retail chains, corporate office builds, and cold-storage facilities where white finish blends with architecture and aluminum durability justifies the cost premium over plastic. Skip it if your site allows wall mounting or if you need full submersion rating (IP67 or higher).
