Hanwha SBP-140HMW Cap Adapter White

Overview

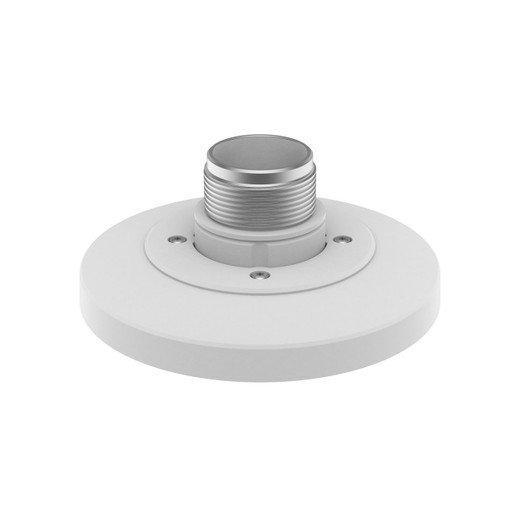

The SBP-140HMW is a precision mechanical adapter engineered to interface PTZ cameras from Hanwha's QNV product line with standard ceiling and wall mount hardware. Specifically designed for the QNV-C8083R and QNV-9083R models, this white aluminum and plastic assembly bridges the gap between the camera body and TR20-threaded mounting infrastructure — the mechanical standard across most commercial drop-ceiling grids and pendant systems.

Key Features

• TR20 Mount Thread Interface: Accepts standard M20 metric coarse threading, which is the mechanical standard in most commercial drop-ceiling T-grids, pendant mounts, and wall brackets. This eliminates the need for custom adapters or converters in typical indoor installations — you can pair the SBP-140HMW directly to your existing mounting infrastructure.
• Model-Specific Engineering for QNV-C8083R and QNV-9083R: This adapter is precision-engineered solely for these two Hanwha PTZ camera models. The mechanical fit ensures zero play between the camera body and mount, which matters because loose mounts cause optical instability during pan/tilt motion — degrading image quality in the frame corners and making video review unreliable. No optical or image-processing functions are affected by the adapter; it is purely mechanical.
• Hybrid Aluminum Core + Plastic Cap Isolation: The aluminum structural core provides rigidity against vibration and load shift, while the plastic isolation cap prevents direct metal-to-metal contact between the camera body and the mount. This isolation reduces noise transmission during thermal expansion and protects the camera's paint finish from contact corrosion — a small detail that extends camera lifespan in facilities with temperature swings (warehouses, entry vestibules, outdoor-to-indoor transitions).
• RAL9003 White Finish: Matches standard interior drop-ceiling tile and painted drywall, allowing the adapter to blend into the ceiling rather than drawing visual attention. In retail, hospitality, offices, and other customer-facing spaces where appearance is part of the security design, neutral white is the expected choice.
• Compact Footprint (Φ155 × 65mm / 6.10" × 2.56"): The small diameter and height minimize interference with HVAC ducts, cable trays, sprinkler lines, and other infrastructure housed in the ceiling plenum — a real constraint in retrofit installations on crowded ceilings. The 240g (0.53 lb) weight is negligible and will not stress ceiling load calculations or require reinforcement of standard drop-ceiling frames.
• Drop-In Installation — No Configuration: The SBP-140HMW has no power input, no network interface, and no firmware or software configuration. Install the adapter between your camera and mount hardware, tighten the TR20 fasteners, and the camera retains full pan/tilt range, zoom, IR output, and codec support — the adapter is purely passive.

Integration & Compatibility

The SBP-140HMW pairs exclusively with QNV-C8083R and QNV-9083R PTZ cameras. Mount hardware must use TR20 (M20 metric coarse) threading — this is standard for commercial drop-ceiling pendant mounts and wall brackets, but older or custom mounting systems may use different threading. Verify your mount hardware specifications before ordering; if you are unsure, contact the ceiling mount or bracket manufacturer to confirm the thread size. The adapter does not modify or limit camera functionality — pan/tilt range, zoom, IR illumination, image codecs, or analytics capabilities remain unchanged.

If your facility uses a mix of ceiling and wall-mounted PTZ deployments, confirm whether wall brackets also use TR20 threads; some wall mounts use different interfaces and may require a separate adapter.

Deployment Context

Integrators typically deploy the SBP-140HMW in commercial, retail, hospitality, and institutional settings where standard drop-ceiling grids and pendant mounts are the norm. It is essential for any indoor ceiling-mounted PTZ installation using T-grid infrastructure. Outdoor pendant or wall-mounted PTZ systems may not require this adapter if the mount hardware interfaces directly to the camera base; verify compatibility with your mount vendor before purchase. The white RAL9003 finish is suitable for visible interior installations; in painted or finished spaces, the color will match most standard ceiling paint specifications. If you are deploying multiple Hanwha QNV PTZ units across a facility, order one SBP-140HMW per camera.

What's in the Box

The SBP-140HMW cap adapter is supplied as a single unit. No additional fasteners, mounting screws, tools, or bracket hardware are included — you provide the TR20 fasteners and mount bracket appropriate to your ceiling or wall substrate.

Frequently Asked Questions

Q: Does the SBP-140HMW work with other Hanwha camera models besides the QNV-C8083R and QNV-9083R?

A: No. This adapter is engineered specifically for the QNV-C8083R and QNV-9083R PTZ cameras. Use with other camera models may result in an unstable or misaligned mount connection. If you are deploying a different Hanwha PTZ model, contact the manufacturer or your integrator to identify the correct adapter part number for that camera.

Q: Will the SBP-140HMW work with wall-mounted brackets or only ceiling mounts?

A: The adapter is compatible with any mounting hardware that uses TR20 (M20 metric coarse) threading — this includes both ceiling pendant mounts and wall brackets. Verify that your specific wall bracket uses TR20 threads before ordering.

Q: What if my ceiling mount uses different threading, not TR20?

A: The SBP-140HMW is designed exclusively for TR20 interfaces. If your mount uses different threading (e.g., M16, 1/2"-20, custom), this adapter will not be compatible. Confirm your mount's thread specification with the bracket manufacturer before purchasing.

Q: Does the adapter affect the camera's pan, tilt, zoom, or image quality?

A: No. The SBP-140HMW is a passive mechanical component with no impact on image processing, codec selection, IR range, or PTZ motion. It exists solely to provide a stable, vibration-free connection between the camera and your mount infrastructure.

Q: Can I use the SBP-140HMW outdoors?

A: The adapter itself is constructed from aluminum and plastic and can tolerate outdoor temperatures and humidity. However, confirm that your QNV-C8083R or QNV-9083R camera model is rated for outdoor deployment; some PTZ models are designed for indoor use only. Refer to the camera's specification sheet for environmental ratings.

Q: What is the weight capacity of the SBP-140HMW mount?

A: The adapter itself weighs 240g (0.53 lb) and carries the weight of the QNV-C8083R or QNV-9083R camera. The load rating of the entire assembly depends on your ceiling mount or bracket hardware. Confirm that your pendant mount or wall bracket is rated to support the combined weight of the camera and adapter; typical commercial drop-ceiling mounts support 4–10 lbs with no issue.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBP-140HMW is a straightforward but critical mechanical component for anyone deploying QNV-C8083R or QNV-9083R PTZ cameras in a standard drop-ceiling environment. The TR20 thread interface is the industry standard in most commercial facilities, so this adapter eliminates one source of installation friction — no custom mounting plates, no adapter chains, just mount the adapter to your TR20-threaded pendant or wall bracket and install the camera. That said, verify your mount hardware's threading before you order; a single wrong thread size forces a return or rework in the field.

Technical Highlights:

• TR20 (M20 Metric Coarse) Threading: Standard in commercial drop-ceiling infrastructure — eliminates custom adapter requirements and simplifies integration with existing pendant mounts and wall brackets across your facility.
• Zero Play Engineering: Precision fit to QNV-C8083R and QNV-9083R bodies prevents vibration-induced optical instability during PTZ motion — crucial for surveillance video clarity in motion-heavy scenes (retail floors, warehouse aisles, entry points).
• Aluminum Core + Plastic Isolation: Hybrid construction dampens thermal expansion noise and isolates the camera body from direct metal contact, extending camera lifespan and reducing serviceability issues in facilities with significant temperature swings.
• Negligible Weight Penalty: At 240g (0.53 lb), the adapter will not strain standard drop-ceiling mounts rated for 4–10 lbs — no structural upgrades needed.
• Compact Plenum Footprint (Φ155 × 65mm): Small enough to fit around HVAC ducts, cable trays, and sprinkler infrastructure in crowded ceiling plenums — real constraint in retrofit jobs on older facilities.

Deployment Considerations:

• Verify your existing mount hardware uses TR20 threading before ordering. A single mismatched thread size forces a return visit or rework. Ask the bracket manufacturer or check the mount documentation.
• The SBP-140HMW is model-specific: QNV-C8083R and QNV-9083R only. Do not attempt to force-fit it to other Hanwha camera models — mechanical misalignment will result in unstable pan/tilt or optical drift.
• The adapter carries no firmware, no IP address, and no configuration — it is purely passive. All camera settings (pan range, zoom, IR, codecs) remain unaffected.

Deploy the SBP-140HMW when your facility's drop-ceiling infrastructure is already TR20-standardized. It eliminates integration friction and reduces installation labor. If your mount hardware uses different threading or you are deploying outdoor or wall-mounted systems, verify compatibility before order. For a multi-camera QNV deployment, order one adapter per camera.
