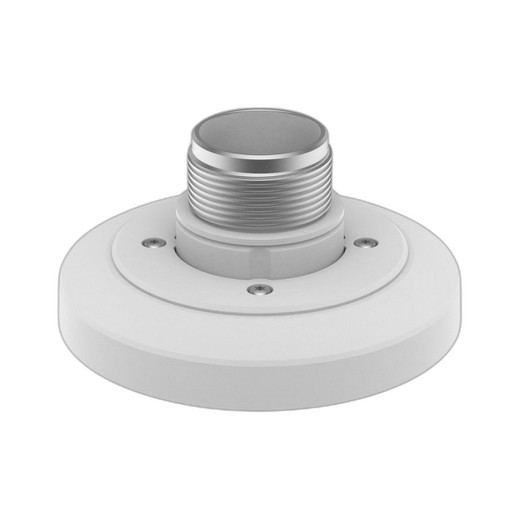

Hanwha SBP-120HMW Cap Adaptor White

Hanwha SBP-120HMW Cap Adaptor White

The SBP-120HMW is a precision mounting adaptor engineered specifically for Hanwha IP cameras across their compact and mid-range surveillance line. This white plastic and aluminum component bridges the gap between dome and junction-box installations, eliminating trial-and-error fitting and reducing labor time on site.

Key Features

• Aluminum core with plastic cap construction: The aluminum substructure resists corrosion in damp environments (warehouses, cold storage, outdoor canopies), while the plastic cap remains lightweight and absorbs minor mechanical stress. This hybrid design cuts weight to just 230g—low enough that it won't add significant load to ceiling or wall mounts, but rigid enough to hold the camera stable without flex.
• Custom-fit design for 13+ Hanwha models: The SBP-120HMW is engineered for QNV-C9011R, QNV-C8011R, QNV-C8012, QND-6012R, QND-6022R, QND-6072R, QND-6082R, LND-6012R, LND-6022R, LND-6072R, QND-7012R, QND-7022R, and QND-7082R. Precision tolerances mean no shimming, no adaptor stacking, and no risk of misalignment that could introduce vibration or optical skew.
• Compact footprint (ø135 x 65mm / ø5.31 x 2.56 inches): The shallow profile keeps the adaptor and camera assembly visually discrete in office, retail, and hospitality environments. It won't protrude awkwardly from ceiling tiles or create a obvious target for tampering.
• RAL9003 white finish: Standard surveillance white matches most indoor trim, ceiling systems, and standard outdoor enclosures. Reduces the visual contrast between adaptor, camera, and mounting surface—a detail that matters in high-visibility or design-sensitive installations.
• Simplifies installation and reduces complexity: Rather than forcing a camera into a mismatched junction box or bracket and risking optical misalignment or physical stress on the lens barrel, the SBP-120HMW locks the camera into the correct plane immediately. Reduces on-site troubleshooting and callback risk.

Compatible Camera Models & Integration

The SBP-120HMW integrates directly with the following IP camera families: QNV-C9011R, QNV-C8011R, QNV-C8012, QND-6012R, QND-6022R, QND-6072R, QND-6082R, LND-6012R, LND-6022R, LND-6072R, QND-7012R, QND-7022R, and QND-7082R. If your deployment uses mixed Hanwha models from the same series (e.g., several QND-6072R units and a couple of QND-6022R units), verify that all cameras in your bill of materials appear in this compatibility list—adaptor fit is model-specific and cannot be force-fitted across product lines.

Typical Deployment Scenarios

The SBP-120HMW suits commercial and institutional security installations where camera placement requires flush, centered mounting: office ceiling grids, retail store canopies, warehouse high-bay areas, educational facilities, and healthcare corridors. The white finish blends into standard indoor environments; if you need a different color or are planning an outdoor installation with extended environmental stress (direct salt spray, high-vibration industrial settings), evaluate alternative mounting hardware or protective enclosures from your integrator.

What's in the Box

1x SBP-120HMW Cap Adaptor (white)

Frequently Asked Questions

Q: Is the SBP-120HMW compatible with Hanwha models not listed above?

A: No. The adaptor is engineered with precision tolerances for the 13 models specified. Using it on unlisted models may result in loose fit, optical misalignment, or physical damage to the camera housing. Always verify your model number against the compatibility list.

Q: Can I use the SBP-120HMW outdoors?

A: The aluminum core provides corrosion resistance in humid indoor environments and covered outdoor spaces (canopies, overhangs). For direct rain, salt spray, or high-vibration industrial settings, consult your integrator about supplemental weatherproofing or alternative mounting solutions.

Q: What mounting surfaces does the SBP-120HMW support?

A: The adaptor itself is passive—it bridges the camera to a separate bracket or junction box. Verify that your chosen mounting bracket or ceiling/wall hardware can support 230g (0.51 lbs) plus the weight of the attached camera. Standard 1/4-20 or M4 fastening is typical; confirm fastener compatibility with your mounting bracket documentation.

Q: Is installation tool-less?

A: Installation typically requires a Phillips or hex screwdriver to secure the camera to the adaptor and the adaptor to the mount bracket. No special tools are needed, but hand-tight fastening alone is insufficient—apply moderate torque per your camera and bracket manufacturer's guidance.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBP-120HMW is a straightforward but critical integration component. At 230g and ø135 x 65mm, it's small enough that you won't notice it aesthetically, but the precision engineering behind that compact footprint is what separates a stable, zero-drift installation from one plagued by vibration complaints and optical alignment issues six months post-deployment.

Technical Highlights:

• Hybrid aluminum-plastic construction: Aluminum resists corrosion in damp indoor and sheltered outdoor environments (warehouses, covered loading docks, cold storage), while the plastic cap keeps overall weight minimal—0.51 lbs won't stress your ceiling grid or wall bracket. The split design also isolates vibration, which matters if your cameras are mounted near HVAC ducts or industrial equipment.
• Precision fit for 13 Hanwha models: Custom tolerances mean no shimming, no adapter stacking, and no misalignment that could introduce optical skew or lens-barrel stress. Verify your exact camera model against the compatibility list—this is not a universal adapter.
• RAL9003 white finish: Standard surveillance white blends into indoor ceiling and wall systems, reducing visual contrast and keeping the installation discrete. Not suitable for colored or outdoor-painted surfaces; confirm color match with your site before ordering.

Deployment Considerations:

• This is a passive mounting bridge—it does not provide power, reset the camera, or add any intelligence. Your mounting bracket and fastening hardware must support the combined weight of adaptor + camera. Always size your bracket accordingly.
• The aluminum core handles humidity well but is not rated for direct salt spray or high-vibration industrial floors. For coastal, maritime, or heavy-machinery environments, discuss supplemental corrosion protection or alternative mounting strategies with your systems engineer.
• Installation requires standard hand tools (Phillips or hex screwdriver) and applies moderate torque per the camera and bracket manufacturer specifications. Hand-tight fastening alone will not hold—under-torqued fasteners will work loose within weeks, causing optical drift and field complaints.

Choose the SBP-120HMW when you're deploying a cohesive fleet of compatible Hanwha cameras in a commercial office, retail, or institutional environment where precise alignment, minimal vibration, and aesthetic discretion matter. For mixed-brand deployments or outdoor high-stress installations, specify custom brackets or consult your integrator on protective enclosure solutions.
