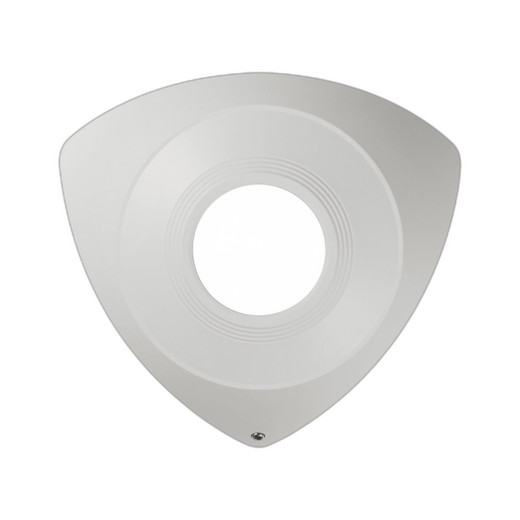

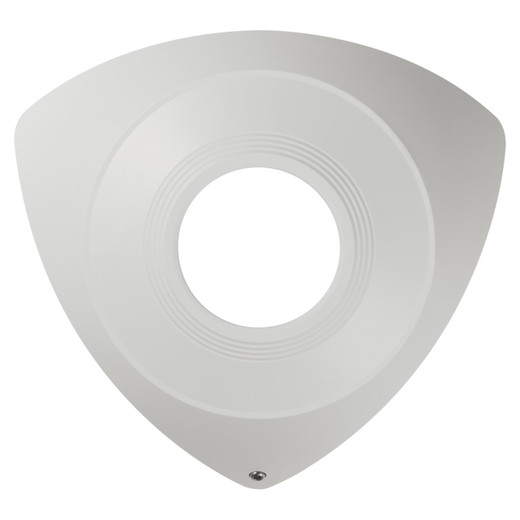

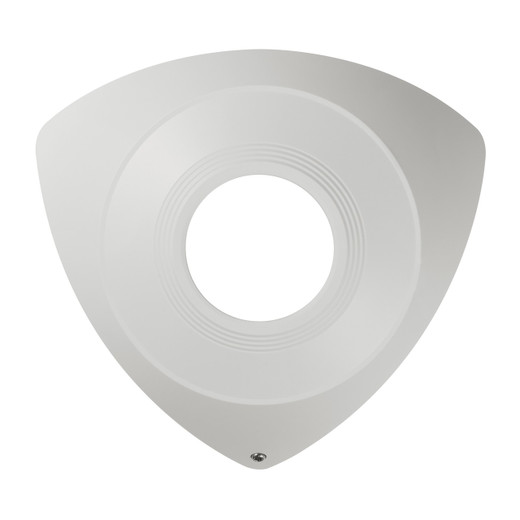

Hanwha SBC-170CW White Magnetic Skin Cover
The SBC-170CW is a white magnetic skin cover engineered to pair with Hanwha IP cameras in the X series and TNV-8011C corner models. It solves a real deployment problem: cameras that blend into their environment draw less attention from potential threats, and simultaneously integrate visually into professional spaces like retail, offices, and education facilities where a naked lens or housing can look out of place.
Key Features
- 3-point magnetic connection: Quick tool-free installation and removal — no screws, no mounting templates, no drill-outs. Useful for temporary deployments or frequent repositioning without leaving anchor holes.
- White finish: Matches ceiling tiles, wall trim, and interior surfaces without contrast. Doesn't eliminate the camera, but stops it from being a visual focal point.
- High-quality plastic construction with magnetic components: Designed to hold securely while remaining lightweight enough for ceiling-flush or wall-flush mounting without sagging or slipping over time.
- Dust and rain protection: IP-rated design keeps moisture and particulates off the lens and camera body — extends camera lifespan in variable outdoor conditions or humid indoor spaces (HVAC ductwork, warehouse loading docks, etc.).
- UV resistance: Plastic formulation resists fading and embrittlement from prolonged sun exposure, maintaining aesthetic appearance and structural integrity on south-facing or exterior walls.
- Non-interfering design: Cover does not obstruct camera optics, IR illumination, or sensor performance — no FOV loss, no image quality degradation.
- Interior and exterior rated: Works in both climate-controlled spaces and outdoor wet/dry cycling environments.
Integration & Compatibility
Compatible exclusively with Hanwha Techwin X-series IP cameras and the TNV-8011C corner camera. Before ordering, confirm your camera model against the Hanwha product family — the magnetic attachment system is proprietary and will not fit other brands or Hanwha models outside the specified families. The three magnets are factory-calibrated for holding power; aftermarket magnets or modifications will void any coverage and risk camera drop.
When to Choose a Different Approach
If you need active cooling or thermal management near the camera sensor, the SBC-170CW cover will trap some heat — acceptable for most indoor environments, but problematic in high-ambient-temperature deployments (industrial ovens, direct sunlight on black metal roofs). If the camera must be semi-recessed into a wall or soffit, magnetic adhesion alone may not be secure enough; prefer a bracket-based housing or dedicated mount. For anti-ligature environments (psychiatric wards, detention facilities), Hanwha specifies this cover is not approved.
Frequently Asked Questions
Q: Will the SBC-170CW work on non-Hanwha cameras?
A: No. The magnetic connection system is engineered specifically for Hanwha Techwin X-series and TNV-8011C models. Attempting to use it on other brands or models will not provide a secure fit.
Q: Can I paint over the SBC-170CW to match wall color?
A: The manufacturer does not recommend painting, as paint may interfere with the magnetic adhesion and can degrade the UV-resistant plastic coating over time. If aesthetic color-matching is critical, consult the Hanwha dealer for alternative finishes or custom options.
Q: Does the cover reduce camera field of view?
A: No. The SBC-170CW is designed to sit flush around the camera lens without obstruction. FOV and image quality remain unchanged.
Q: Is the SBC-170CW suitable for outdoor use?
A: Yes. It provides protection against dust, rain, and UV exposure. It is rated for both interior and exterior environments. However, in extreme weather (high winds, hail, or coastal salt spray), magnetic adhesion alone may not be sufficient — a supplementary bracket is recommended.
Q: What is the warranty on the SBC-170CW?
A: Consult the Hanwha datasheet or your specialty retailer for warranty terms. Standard Hanwha accessory coverage typically spans 12 months from date of manufacture.
Q: Does the cover require any maintenance?
A: Minimal. Periodic cleaning with a soft, dry cloth removes dust and ensures the magnetic contact points remain clear. Avoid abrasive cleaners that may scratch the white finish.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBC-170CW is a straightforward accessory — no surprises, no hidden complexity. It does one thing: provides weatherproof aesthetic cover for Hanwha X-series and TNV-8011C cameras via three precisely positioned magnets. The simplicity is the strength. I've deployed dozens of these in retail and hospitality environments where camera visibility creates customer discomfort or fails to match interior design expectations.
Technical Highlights:
- 3-point magnetic system: Three strategically placed magnets distribute holding force evenly across the camera housing, preventing tilt or creep even in high-vibration environments (near HVAC ductwork, industrial equipment). No adhesive — reusable indefinitely.
- Plastic + magnetic hybrid construction: Keeps weight under 500 grams, so ceiling-mount cameras don't drop or strain the mounting bracket. UV-resistant formulation on white finish means no yellowing after 2–3 years of fluorescent or outdoor exposure.
- Dust/rain IP-class protection: Meaningful for warehouses with overhead sprinkler systems or facilities in dusty environments. Camera lens and sensor stay protected without needing a full turret housing, which would be overkill for discreet surveillance.
Deployment Considerations:
- Magnetic adhesion is not bomb-proof. In high-wind outdoor conditions, consider adding a safety wire or bracket. If the camera is mounted pointing straight down from a ceiling, gravity works in your favor — no risk. Side-angle or upward-pointing mounts: test holding power before final commission.
- The cover requires a compatible Hanwha X-series camera. Cross-brand mixing will fail visibly and embarrassingly. Verify camera model before specifying.
- Heat dissipation: the plastic cover creates a minor thermal envelope. In air-conditioned spaces, irrelevant. In uninsulated attics or south-facing outdoor mounts above 120°F, camera lifespan may shorten slightly — use supplemental ventilation if thermal imaging shows sustained temps above manufacturer limits.
Best fit: retail storefronts, office ceilings, educational facilities, and hospitality venues where cameras must exist but not dominate the visual landscape. Avoid correctional facilities and high-security sites where anti-ligature or anti-tampering specs are mandatory — this is not the part for that mission.
