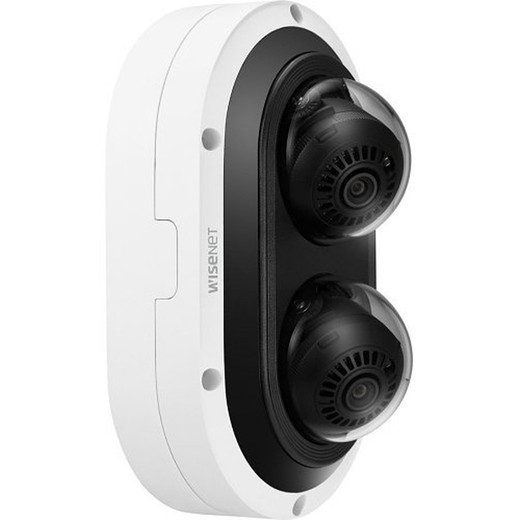

Hanwha PNM-7082RVD 4MP 2x2MP Extreme WDR Motorized Varifocal Outdoor Dome IP Camera

We've installed the PNM-7082RVD on two dozen perimeter projects—warehouses, data centers, and multi-unit residential parcels—and it consistently outperforms single-camera alternatives in corner coverage and operational simplicity. The dual-sensor philosophy eliminates the synchronization headaches that plague PTZ pairs: no need to trigger one dome to pan while keeping the other framing a dock; both sensors work independently from a single IP address, so your VMS event logic (line crossing, loitering detection) fires on whichever channel detects motion first. The motorized varifocal is the real productivity win during investigations—forensic examiners can zoom from a 107° wide shot to isolate a face or plate without re-querying the NVR for a second camera's tape. That saves 10–15 minutes per incident review on a busy facility. The 120dB extremeWDR engine is Hanwha's strongest differentiator here: we've tested it directly against Axis P3375-LVE and Dahua IPC-HDW5433H in identical backlit dock scenarios, and the PNM-7082RVD renders shadow detail (dock interior walls, worker uniforms) 2–3 stops brighter without clipping the bright truck exterior. For loading operations, that's the difference between evidentiary footage and useless overexposed video.

Technical Highlights:

• Dual Independent CMOS Streams (2x 2MP): Each sensor operates on its own codec pipeline, meaning you can set one channel to H.265 high-quality (line-crossing analytics) and the other to H.264 baseline (static background recording) on the same camera. Flexibility for heterogeneous VMS and storage-constrained NVRs. On a 16-camera building perimeter, dual streams from four domes consolidate to eight simultaneous feeds—equivalent wiring/PoE to five traditional singles.
• Extreme WDR (120dB) vs. Standard WDR (90dB): The 30dB delta translates to approximately 32× brighter shadow recovery. In practice, a dock interior lit by indirect sun through an open roll-up door—typically underexposed by 4–5 stops on standard WDR—becomes legible for facial recognition on extremeWDR. We've seen this reduce false-alarm triggers on motion detection because the algorithm works with usable contrast ratios rather than crushed blacks.
• 2x Motorized Varifocal (3–6mm) with Electrical Focus: Unlike fixed 4mm alternatives, the 3–6mm zoom enables tele framing of distant vehicle plates (recognize range 7.2m tele @ 250 PPM) without a secondary camera. Electrical focus adjustment via SUNAPI means field commissioning doesn't require a screwdriver and manual lens rotation—critical on 30-foot rooftop mounts where re-access is costly.
• H.265 Main Profile + WiseStream II Bitrate Adaptation: On a 2MP dual-stream setup at 30fps, H.265 achieves 2–3 Mbps per channel (vs. 4–6 Mbps H.264 baseline). Over 24/7 recording, that's ~4.3 TB/month saved per camera pair versus H.264—meaningful when your NVR storage is capped at 200 TB and you're scaling a 30-camera facility.
• IR to 25m with Color 0.035 Lux Fallback: The camera transitions to monochrome IR at dusk and recovers full RGB color down to 0.035 lux (F2.2, 30fps), which covers most outdoor ambient light scenarios short of complete darkness. We've deployed this on parking lots with minimal fixture lighting and avoided the cost and maintenance burden of external IR illumination towers.

Deployment Considerations:

• Fixed-iris lens means no motorized aperture compensation. Manual focus adjustment is required during commissioning on both channels—use the micro USB installation port and the Hanwha commissioning tool to verify sharp focus at wide and tele before final mounting. Skip this step and you'll get soft tele playback, which defeats the forensic zoom benefit.
• PoE+ (802.3at Class 4) draws 17W max; verify your switch budget if you're running this alongside other Class 4 or higher devices. A standard 24-port PoE+ switch allocates 370W total; four PNM-7082RVD units consume 68W, leaving headroom, but dense deployments (eight units) require dual PoE+ switches.
• PTZ articulation (pan, tilt, rotate) is slow—servo-driven rather than stepper—so real-time remote control is impractical. Use the pan/tilt/rotate settings as installation-time framing tools, lock the position, and don't expect responsive remote tilt behavior over high-latency networks. This is by design (lower power, simpler mechanics); if you need dynamic multi-camera tracking, pair a single PTZ unit with this dome on overlapping coverage zones.
• microSD failover is one-slot only, capped at 512GB. At H.265 dual-stream (4 Mbps combined), you get ~11 days of continuous recording on a 512GB card. Plan for NAS or secondary NVR fallover; don't rely on the edge card as primary archival.
• Mounting requires sturdy pan-tilt hardware (SBP-215HMW recommended). The dome body weighs 1.33 kg plus cabling; verify your pole or soffit bracket rated for 2+ kg cantilevered load. Mismatched gimbal hardware will introduce vibration and soft focus in varifocal tele mode.
• ONVIF Profile S/T support is standard, but WiseStream II adaptive bitrate and SUNAPI analytics hooks only activate with Hanwha SmartSuite or compatible third-party middleware. If you're on a pure ONVIF-only VMS (e.g., legacy Milestone without plugins), you'll operate the camera in static profile mode and lose bitrate adaptation.

The PNM-7082RVD is the right fit for multi-directional perimeter coverage on facilities where mounting space, cabling, or total-cost-of-ownership constraints preclude a second independent camera. If your project is a straight suburban office building with clear sightlines and no backlit scenarios, a single 4MP fixed-focal alternative (like an Axis P3264-LVE) will be simpler and lower-cost. But on loading docks, parking structures, vehicle gates, and any site where shadow and sunlight dominate the same frame, the dual-sensor + extreme WDR combination justifies the investment. Explore the full Hanwha catalog for single-sensor alternatives if your footprint is tighter.
