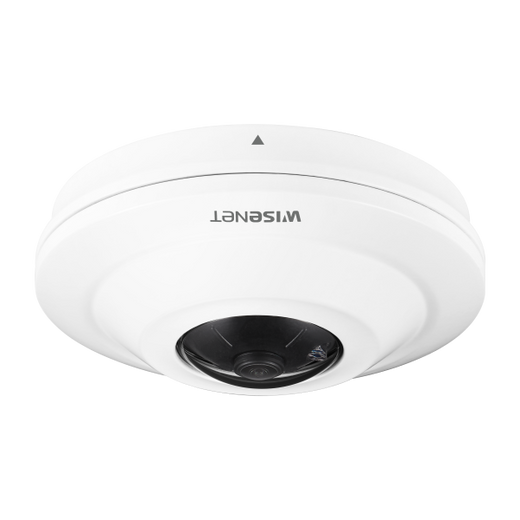

Hanwha HCF-8010V 5MP Wisenet HD+ Outdoor Fisheye Camera
Overview
The HCF-8010V is a 5MP outdoor fisheye camera engineered for existing analog infrastructure — delivering 180° hemispherical coverage over coaxial cable without requiring a network switch or IP backbone. Running on Hanwha's Wisenet HD+ analog line, it outputs AHD, TVI, or CVBS video switchable on the same unit, which makes it an unusually flexible retrofit option for mixed-recorder environments. At 2560×1944 resolution with a 0.98mm fixed lens, the HCF-8010V pushes genuine 5MP detail across a full hemisphere — the kind of single-camera coverage that replaces two or three standard fixed cams at an entry point or corridor junction.
Key Features
- 180° Full Hemisphere, 0.98mm Fixed Lens: A true F2.1 fisheye captures 180° horizontal and 180° vertical simultaneously. One camera covers an entire entryway, lobby ceiling, or corner without pan/tilt mechanics to maintain or fail. Minimum object distance is 0.2m, so mounting directly over a counter or doorway still resolves usable detail.
- 5MP at 20fps (2560×1944): Higher resolution than standard 1080p analog means you're pulling meaningful detail from the periphery of the frame — not just the center. The 20fps cap is adequate for most access-control and loss-prevention use cases; it won't suit high-speed conveyor monitoring.
- AHD / TVI / CVBS Switchable Output: A single unit covers three analog protocols. If you're retrofitting a site with a mixed recorder estate — some AHD DVRs, some TVI units, legacy CVBS — you stock one SKU and configure on install rather than pre-ordering three camera variants.
- 500m Coax Transmission (5C2V): Over 5C2V coaxial cable, the signal runs 500 meters without a repeater. That covers most warehouse perimeters, parking structures, and campus edge runs on existing cabling — no fiber, no IP switches required.
- IP66 + IK10 Vandal Resistance: IP66 means the housing shrugs off direct rain and dust ingress — reliable for exposed eave or soffit installs. IK10 impact resistance (the highest standard) means the metal housing can take a deliberate strike without lens or electronics exposure. White metal construction at 500g (1.1 lb) is light enough for standard surface mount.
- DWDR + 3DNR / 2DNR: Digital Wide Dynamic Range handles mixed-light scenes — a door frame with bright exterior and dim interior — without completely blowing highlights or crushing shadow detail. 3D noise reduction keeps the image clean in low light without smearing motion.
- Low-Light Sensitivity: 0.005 Lux (B/W): At F2.1, the sensor reaches 0.005 lux in monochrome mode — serviceable in near-dark environments with ambient light sources like exit signs or parking lot spill. Color mode requires 0.95 lux, which covers typical interior retail or lobby lighting.
- -30°C to +55°C Operating Range: Handles cold-climate outdoor installs down to -22°F without a heater add-on. Upper limit of 131°F covers most rooftop or attic-soffit mounting scenarios in temperate climates.
- Coaxial Control (ACP / Pelco-C / TCP): Camera settings — OSD, day/night mode, white balance — are adjustable over the same coax run using AHD Coax Protocol, Pelco-C (Coaxitron), or TVI Coax Protocol. No separate RS-485 run required for basic configuration.
Integration & Compatibility
The HCF-8010V integrates with any DVR or hybrid recorder that accepts AHD, TVI, or analog CVBS input. For Hanwha's broader Hanwha HD+ DVR line, coaxial control is fully supported. The camera accepts DC 12V or AC 24V power — standard for analog analog security camera deployments — and draws a maximum of 2W, so power budget impact per camera is minimal. White balance covers 1,800K° to 10,500K° manually or automatically, accommodating everything from sodium vapor parking lots to daylight exterior scenes. Pair with a coax video balun if running over UTP instead of true coaxial. Consult a camera selection guide for fisheye vs. multi-sensor tradeoff analysis when coverage area exceeds a single hemisphere.
Frequently Asked Questions
Q: What analog protocols does the HCF-8010V support?
A: The HCF-8010V supports AHD, TVI, and CVBS — all switchable on the same unit. Each uses its own coaxial control protocol: ACP for AHD, TCP for TVI, and Pelco-C (Coaxitron) for CVBS.
Q: What is the maximum transmission distance over coax?
A: 500 meters over 5C2V coaxial cable. Performance on thinner or older cable may be reduced.
Q: Can the HCF-8010V be used outdoors?
A: Yes. It carries an IP66 rating for weather resistance and IK10 impact resistance, with an operating range of -30°C to +55°C (-22°F to +131°F).
Q: What power input does the HCF-8010V require?
A: DC 12V or AC 24V. Maximum draw is 2W. This is a conventional analog power supply requirement — it does not support PoE.
Q: Does the HCF-8010V have IR night vision?
A: No IR illuminators are specified for this model. It relies on ambient light, reaching 0.005 lux sensitivity in black-and-white mode at F2.1.
Q: What is the field of view of the HCF-8010V?
A: 180° horizontal and 180° vertical — a full hemisphere. The 0.98mm fixed fisheye lens and board-in mount type deliver this coverage without any mechanical adjustment.
The HCF-8010V is one of the few analog fisheye cameras on the market hitting true 5MP at 2560×1944 — that resolution matters on a 180° hemisphere because you're stretching a lot of real-world space across every pixel. I typically recommend this unit for analog retrofit projects where the customer needs wide corner or ceiling coverage but can't justify re-cabling for IP, and the 500m coax run spec means most existing cable plants are long enough without amplification.
Technical Highlights:
- Tri-Protocol Output (AHD/TVI/CVBS): Switchable on a single unit — one SKU fits three different DVR types. For integrators managing multi-brand recorder estates across a campus retrofit, that's real stocking simplicity.
- 2W Max Power Draw: At DC 12V or AC 24V and only 2W maximum, you can run multiple cameras off a single multi-output power supply without worrying about tripping the load — keeps hardware and conduit counts down on tight installs.
- IK10 + IP66 Metal Housing: The white metal body at 1.1 lb is genuinely robust — IK10 is the ceiling for impact resistance standards. For ceiling or soffit mounts in semi-public areas where cameras get bumped or targeted, the housing holds without cracking the lens dome.
Deployment Considerations:
- No IR illuminators are included — the 0.005 lux B/W minimum illumination is ambient-light-dependent. Plan for supplemental lighting in truly dark environments (parking decks, unlit corridors after hours) or this camera will degrade to noise rather than usable footage.
- The 20fps maximum at 5MP is a hard ceiling on this platform. If your DVR is configured to record at 25 or 30fps, it will accept the signal but won't get more frames — confirm your recorder's AHD/TVI input accepts sub-30fps sources cleanly to avoid dropped-frame artifacts in playback.
This camera earns its place on analog ceiling mounts in lobbies, retail floor corners, and covered exterior entry points where a single hemisphere covers what would otherwise require two or three cameras — and the existing coax run is already in the wall.
