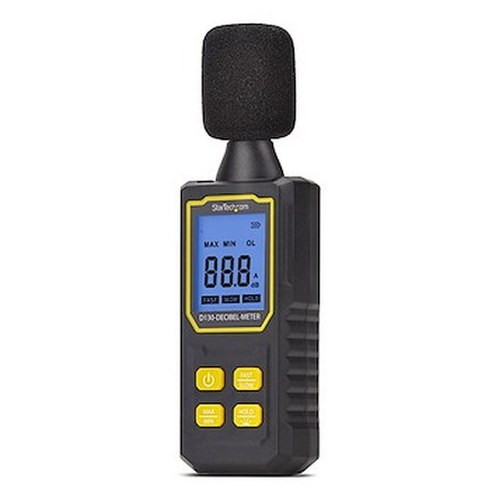

StarTech D130-DECIBEL-METER Handheld Digital Sound Level Meter

Overview

The StarTech D130-DECIBEL-METER is a handheld digital sound level meter covering a 30–130dBA measurement range — wide enough to span a near-silent storage room and the immediate vicinity of a loud CRAC unit in a single instrument. At 3.7 oz and 6.5 inches long, it travels in a technician's tool bag without adding meaningful weight, yet delivers the 0.1dB resolution you need to make meaningful before/after comparisons during rack deployments, HVAC commissioning checks, or noise compliance walkthroughs. If you've ever tried to justify a noise complaint with a smartphone mic reading, the D130-DECIBEL-METER (often searched as D130 DECIBEL METER) gives you a number you can actually put in a report.

Key Features

• 30–130dBA Measurement Range: A 100dB span means one meter handles both quiet office environments (typically 35–45dBA) and loud mechanical plant rooms or server halls pushing 80dBA and above. You won't need a second instrument for different site conditions.
• ±1.5dB Accuracy: For compliance documentation and OSHA noise exposure recordkeeping, you need to know how much to trust the number on screen. At ±1.5dB, readings are tight enough to support formal assessments and vendor disputes over equipment noise specifications.
• 0.1dB Resolution: Fine-grained readout lets you detect incremental changes — useful when comparing airflow configurations, tracking fan degradation over time, or verifying that acoustic treatments are having a measurable effect rather than a felt one.
• Fast (1/8s) and Slow (1s) Response Modes: Fast mode captures peak transient noise events — a door slam, a drive array spin-up, or a compressor kick — while Slow mode averages out momentary spikes to give you a stable ambient reading. Having both on one unit means you don't need to swap instruments between survey types.
• Large LCD Display: Readings are legible without squinting in the variable lighting conditions typical of data centers and mechanical rooms. Less fumbling, faster walkthroughs.
• ABS Construction: The lightweight ABS housing keeps the unit under 3.7 oz so it's practical for all-day handheld use during extended site surveys, without the fragility of a consumer device.
• 3x AAA Battery Power: Standard AAA batteries mean no proprietary charging cables and no hunting for a USB port mid-survey. Batteries are widely available on site — note that they are not included, so confirm you have them before heading out.
• Compact Form Factor (6.5 × 2.0 × 1.1 in): Sized to fit a shirt pocket or instrument pouch. The narrow 1.1-inch depth means it lays flat in a bag without creating bulk.

Integration and Compatibility

The D130-DECIBEL-METER is a standalone analog instrument — there is no data logging port, wireless output, or PC interface specified in the product evidence. It is purpose-built for spot measurements and manual survey work rather than continuous monitoring or automated reporting workflows. If your project requires logged data export or integration with a building management system, a data-logging sound meter with USB or RS-232 output would be the appropriate choice. For manual site surveys, OSHA walk-around assessments, server room intake/exhaust profiling, and pre/post acoustic treatment verification, the D130-DECIBEL-METER covers the use case directly.

Frequently Asked Questions

Q: What is the measurement range of the D130-DECIBEL-METER?

A: The D130-DECIBEL-METER measures from 30dBA to 130dBA, covering quiet ambient environments through high-noise industrial or mechanical spaces in a single instrument.

Q: Does the D130-DECIBEL-METER log data or connect to a PC?

A: No. Based on available product evidence, the D130-DECIBEL-METER is a standalone handheld meter with a large LCD display. There is no documented data logging port, USB interface, or wireless connectivity. It is designed for manual spot measurements.

Q: What batteries does the D130-DECIBEL-METER require, and are they included?

A: It requires 3 AAA batteries. Batteries are not included — bring them to the job site before use.

Q: What is the accuracy of the D130-DECIBEL-METER?

A: Accuracy is rated at ±1.5dB with a resolution of 0.1dB, meaning readings are suitable for formal noise assessments and documentation purposes.

Q: What is the warranty on the D130-DECIBEL-METER?

A: StarTech provides a 2-year manufacturer warranty on the D130-DECIBEL-METER.

Q: When should I use Fast response mode versus Slow response mode?

A: Use Fast mode (1/8 second response) to capture transient peaks such as equipment startup events or mechanical impacts. Use Slow mode (1 second response) for stable ambient readings that average out brief spikes — the standard approach for general noise level surveys.

Eden Phillips

The D130-DECIBEL-METER earns its place in a field kit because of the 100dB span between its 30dBA floor and 130dBA ceiling — that single range covers every environment I run into on data center audits, from a cold aisle at idle to a UPS room with multiple large rectifiers running flat out. A lot of budget meters top out at 80 or 90dBA and leave you without a reading exactly when the noise gets serious.

Technical Highlights:

• ±1.5dB Accuracy: Tight enough for OSHA noise exposure documentation and vendor equipment-noise spec disputes — the difference between a credible report and a number someone can dismiss.
• Dual Response Modes (1/8s Fast / 1s Slow): Fast mode is genuinely useful for catching drive array spin-up events or CRAC compressor kicks that a slow-response meter would average away; Slow mode gives you the stable ambient reading that goes into a baseline report.
• 0.1dB Resolution: Incremental enough to show whether a blanking panel installation or a cable management change actually moved the needle inside a hot aisle — not just whether it felt quieter.

Deployment Considerations:

• The D130-DECIBEL-METER runs on 3 AAA batteries (not included) — stock a spare set in the bag before a multi-hour site walk so you don't lose your window for a measurement.
• This is a spot-measurement instrument with no documented data output port; if your engagement requires timestamped logged data for a continuous noise compliance record, you'll need a separate data-logging meter. Plan accordingly before proposing it as a monitoring solution.

For server room commissioning walkthroughs, OSHA noise floor documentation, and pre/post acoustic treatment verification in commercial facilities, the D130-DECIBEL-METER is the right handheld to carry — compact, accurate to ±1.5dB, and usable across the full range of spaces a working integrator encounters on a typical week.
