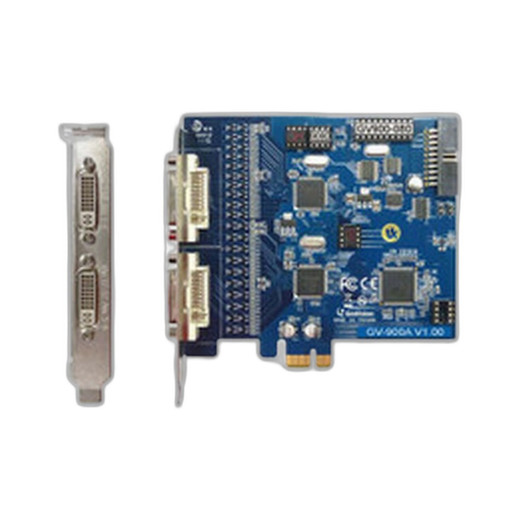

Geovision 86-1120B-160U 16-Channel 1.3MP Capture Card
Overview
The Geovision 86-1120B-160U is a 16-channel video capture card designed to digitize analog video streams from Geovision CB120 series cameras into a host PC via PCIe x4 slot. This card outputs DVI video, making it suited for legacy analog surveillance systems being integrated into a computer-based recording or monitoring workstation. The 1.3MP-per-channel capacity means you're managing moderate resolution feeds — useful when retrofitting existing analog infrastructure without IP transition costs upfront.
Compatibility
The 86-1120B-160U is engineered specifically for Geovision CB120 analog camera systems. It requires a PCIe x4 slot in the host computer and delivers video via DVI connector. Use this card only in configurations where your surveillance PC has available PCIe slots and your Geovision cameras are the CB120 model line. It is not compatible with IP cameras, other analog camera brands, or systems relying on USB or Ethernet video input.
Installation Notes
Install the card into an available PCIe x4 slot on your motherboard. Ensure adequate airflow around the card slot to prevent thermal throttling during 24/7 operation. The host PC requires sufficient power supply capacity to support both the card and the connected analog video sources. DVI output connects to a compatible monitor or capture software interface on the workstation. Verify that your PC BIOS recognizes the card before routing video streams into recording software.
What's in the Box
- 1x Geovision 86-1120B-160U capture card (PCIe x4)
- 1x DVI connector/cable assembly
