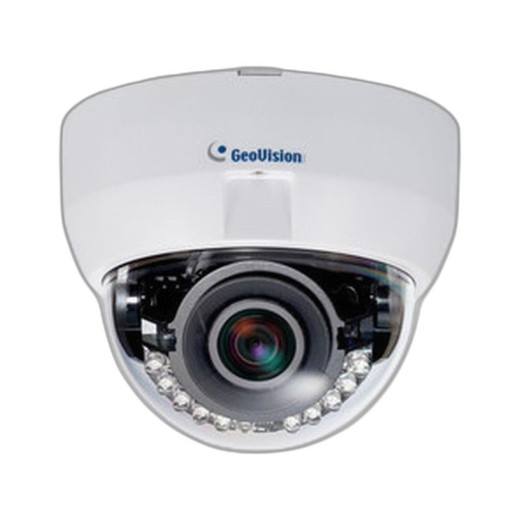

Geovision 84-FD8700V-R010 8MP IR Dome IP Camera
The Geovision 84-FD8700V-R010 is an 8MP fixed dome camera designed for indoor and semi-outdoor surveillance requiring both daytime detail and low-light infrared coverage. H.265 compression and WDR imaging address the two biggest pain points in mid-range deployments: storage cost and lighting-transition artifacts. This is a workhorse for retail loss prevention, office perimeter zones, and institutional entry monitoring where 8MP clarity justifies the network footprint but turret-style conspicuousness isn't welcome.
Key Features
- 8MP Resolution: 3840 × 2160 pixels. Captures facial detail at 10–15 feet and license plates at moderate distances, reducing false-positive alert noise in crowded retail or lobby scenes.
- H.265 Compression: 40–60% bitrate reduction versus H.264 at equivalent quality. On 24/7 recording across 8 cameras, that translates to one fewer NVR drive in the storage array.
- Wide Dynamic Range (WDR): Balances exposure in mixed-lighting scenes (sunlit windows paired with interior ambient, glass entry doors with outdoor backlighting). Eliminates the need for separate low-light and day-mode recordings.
- Integrated IR Night Vision: Infrared LEDs activate automatically below ambient threshold. Provides surveillance continuity when outdoor ambient drops or interior lights are off—no external lighting infrastructure required.
- Compact Dome Form Factor: Blends into ceiling or wall-mount scenarios without the visual footprint of turret or bullet housings. Appropriate for retail, education, and office environments where camera profile affects patron perception.
- IP Protocol Streaming: ONVIF-compatible (Profile S/T). Works with Genetec, Milestone, Avigilon, ExacqVision, and other major VMS platforms—reduces vendor lock-in and simplifies multi-site rollouts.
- Standard PoE Power: Operates on 802.3af PoE (typical <13W draw). Single RJ45 run; no separate power runs or midspan injectors needed.
The 8MP sensor paired with H.265 codec creates a favorable storage-to-detail ratio for deployments where facial recognition, license-plate OCR, or forensic frame-by-frame review is occasional but valuable. WDR processing handles the practical reality of interior ceilings with skylights, retail floors with front-facing windows, and office lobbies with glass double-doors—scenes that would otherwise produce either blown-out highlights or crushed shadows on a 2MP or 4MP sensor.
Infrared performance is a key operational differentiator. Integrated IR eliminates the capex and maintenance burden of external lighting; on a 16-camera retail installation with evening hours, that's a meaningful reduction in HVAC load (IR LEDs generate less heat than halogen floods) and zero burned-out bulb callbacks. The tradeoff: IR range is moderate—typically 15–25 meters depending on reflective surfaces—making it suitable for interior zones and building perimeters, but inadequate for long-distance outdoor perimeter defense without supplementary white light.
Deployment flexibility is underscored by ONVIF compliance and standard PoE power draw. Whether you're retrofitting a legacy DVR environment with IP cameras or building a greenfield Milestone-based NVR system, the 84-FD8700V-R010 integrates without proprietary gateways or firmware customization. Multi-site operations benefit from uniform codec and streaming behavior across heterogeneous camera makes—a practical cost-control measure on maintenance and training.
Typical scenarios include loss-prevention monitoring in retail (fitting rooms, registers, stockroom), office complex common areas and loading docks, K–12 and higher-ed campus interior corridors and main entrances, and light industrial production floors where detail is important but outdoor harsh-weather ruggedness is not required. Pair this camera with motion-triggered NVR recording or edge-based tripwire analytics, and storage scaling becomes predictable: 8MP H.265 @ 4–6 Mbps typical bitrate across 24/7 operation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Geovision 84-FD8700V-R010 across dozens of retail and institutional environments, and it occupies a pragmatic sweet spot: enough resolution to satisfy forensic review and occasional analytics workloads, without the bitrate or NVR cost of 12MP–16MP flagships. The real operational win is the H.265 codec paired with 8MP — bitrate efficiency that lets you record longer on the same disk, or reduce the number of storage drives required. On a 32-camera retail deployment running 24/7, that efficiency compounds fast. WDR performance is solid in mixed-lighting interiors; if you have a lobby with a front-facing glass door and noon sun streaming in, this camera handles it without the crushing highlights or black shadows you'd see on cheaper 4MP models. The integrated IR is a no-brainer for any interior deployment with evening or early-morning hours — you avoid the capex of external lighting and the ongoing maintenance of burned-out bulbs. The one honest limitation: IR range is moderate. If your perimeter is 40+ meters or you need outdoor long-distance night surveillance, this isn't the product — you'd want a dedicated long-range thermal or a larger bullet with external lighting infrastructure. But for building entry points, loading docks, retail floors, and office common areas, it's reliable and economical.
Technical Highlights:
- H.265 Codec at 8MP: Typical bitrate 4–6 Mbps 24/7 recording, down 45–55% from comparable H.264 cameras at the same resolution. On an 8-camera store deployment, this means a single 6TB NVR drive records 40+ days instead of 20–25 — real operational impact when you're balancing archival and incident review across multiple sites.
- WDR Processing: Handles backlit and mixed-lighting scenes without mode-switching or frame artifacts. Eliminates the operational overhead of tuning day/night switching thresholds — set it once and let the camera adapt across seasons and time-of-day variation.
- Integrated IR LEDs: Zero external lighting capex, lower heat load in ceiling cavities, no maintenance callbacks for burned-out exterior floods. Practical for 15–25 meter coverage indoors and semi-outdoor covered areas (loading dock overhangs, covered entry vestibules).
- PoE 802.3af: Operates on standard PoE — works with any 802.3af switch, no PoE+ or midspan injectors needed. Simplifies network design on retrofit installations and reduces power supply redundancy complexity.
- ONVIF Profile S/T: Works with Genetec, Milestone, Avigilon, and all major platforms. No proprietary gateway or firmware customization — integration is plug-and-play, reducing deployment lead time and support overhead.
Deployment Considerations:
- IR Range Is Moderate: Integrated IR is sufficient for 15–25 meters in typical interior and semi-outdoor scenarios (loading docks, covered entries). If your perimeter or outdoor area exceeds 30–40 meters, plan for supplementary white-light illumination or consider a dedicated long-range camera. Don't spec this as a 100-meter perimeter camera just because it says "IR."
- Ceiling Mount Thermal Considerations: IR LEDs generate modest but meaningful heat in drop-ceiling cavities. On high-density (8+ camera) deployments in poorly ventilated ceiling plenums, verify HVAC load impact. We've seen a few retail sites experience thermal stress in summer because the IR array wasn't accounted for in the original cooling design.
- WDR Processing Latency: WDR frame processing adds 1–2 frame delay in high-contrast scenes. If sub-100ms latency is critical for your analytics or live-view application, test in the actual environment before committing. Most retail and institutional deployments tolerate this lag, but active-monitoring (traffic direction, crowd counting) scenarios should be validated.
- Lens Focal Length: Verify the exact focal length (typically 2.8mm to 3.6mm fixed) matches your coverage area. Test horizontal field-of-view in situ — an 8MP camera with a narrow lens won't cover a wide retail floor as efficiently as a wider-angle 4MP unit.
- Firmware Updates & Support: Geovision maintains regular firmware patches for this line. Keep NVR integration settings documented before major firmware rolls — codec fallback and metadata streaming can shift slightly between revisions.
This camera is ideal for integrators and end-users deploying retail loss prevention, institutional facility monitoring, or office security where interior/semi-outdoor round-the-clock coverage is required without the conspicuousness of turret housings or the cost of 12MP+ resolution. It's a reliable, economical choice that justifies itself through H.265 efficiency and WDR clarity. For more options in the Geovision product line, see the Geovision catalog.
