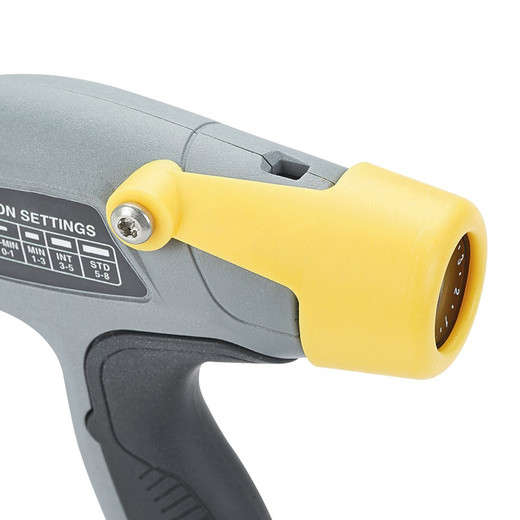

Panduit KGS24-ETLS Tension Lockout Kit

The Panduit KGS24-ETLS is a precision-engineered tension lockout kit designed to prevent unauthorized adjustment of tension settings on Panduit's ergonomic metal-body cable tie tools. In security installations, datacenters, and industrial control environments where consistent cable tie tension is critical for cable integrity and compliance documentation, this screw-based lockout mechanism ensures that once your technician sets the optimal tension level, it cannot be accidentally or deliberately altered mid-project. The bright yellow lockout screw provides instant visual confirmation that tension control is engaged, meeting tamper-evidence requirements in audited facilities.

Key Features

Screw-based tension lockout mechanism prevents unauthorized tension adjustment on Panduit GS-series tools

Compatible with GS2B-E, GS4H-E, GS4EH-E, and GS4MT-E ergonomic cable tie tensioning tools

High-visibility yellow lockout screw for instant visual verification of engaged setting

Tamper-proof design meets compliance requirements for audited installations

Single kit per package, carton quantity of 10 for multi-technician deployments

The KGS24-ETLS addresses a specific field problem: when multiple technicians share cable tie tools across shifts or job sites, tension settings can drift from spec. In datacenter hot-aisle containment installations, over-tensioned ties can deform Cat6A jackets and degrade performance; in surveillance pole mounts, under-tensioned ties allow cable sag and UV exposure. This lockout kit lets your lead installer set the correct tension per cable type and manufacturer spec—typically 50 lbs for network cables, 120 lbs for outdoor coax bundling—then physically lock that setting. The screw mechanism requires a deliberate action to disengage, eliminating accidental dial bumps during tool storage or transport.

Installation takes under 60 seconds: remove the existing tension adjustment knob on your GS-series tool, install the lockout kit per Panduit's instruction sheet, set your target tension, then engage the yellow lockout screw. The kit is engineered specifically for Panduit's metal-body ergonomic tools—the GS2B-E battery-powered model, the GS4H-E and GS4EH-E pneumatic variants, and the GS4MT-E manual tensioner. These tools are standard equipment for commercial security integrators doing structured cabling in access-controlled facilities, and the lockout kit extends their utility in environments where ISO 9001 or SOC 2 compliance audits require documented process controls. One carton provides ten kits, matching typical installer team sizes for large campus deployments.

The yellow color choice is deliberate—it matches OSHA lockout/tagout standards for energy isolation devices, making the engaged lockout immediately recognizable during quality audits or shift handoffs. For integrators working under performance bonds or warranty agreements that specify installation standards, the KGS24-ETLS provides physical evidence that tension specs were maintained throughout the project. UPC 61305668593 for procurement tracking.
