StarTech PEXUSB3S7 7-Port USB 3.2 Gen 1 PCIe Expansion Card

Overview

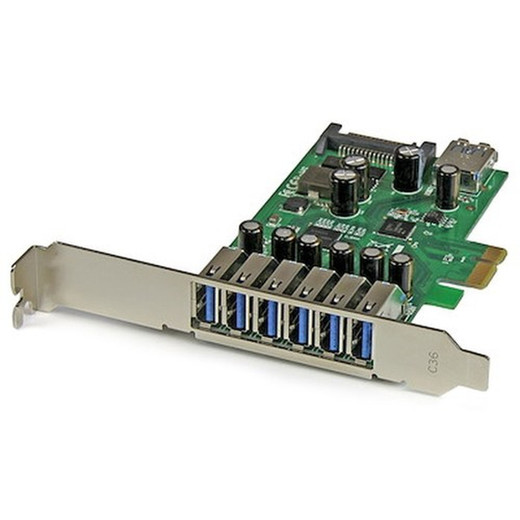

The StarTech PEXUSB3S7 is a PCI Express 2.0 expansion card that adds seven USB 3.2 Gen 1 (USB 3.0) ports to a desktop or workstation — six external Type-A ports on the card's rear bracket plus one internal Type-A header. If you're running a surveillance workstation, NVR-adjacent PC, or any system where USB ports are a recurring bottleneck, this card removes that constraint without requiring a motherboard swap. At 5 Gbps per port, it handles high-bandwidth peripherals — external storage, capture devices, multi-camera USB adapters — that would choke a USB 2.0 hub. The card draws auxiliary power via a SATA connector, which matters if your PCIe slot alone can't supply enough current for seven simultaneously active USB devices.

Key Features

• 7 total USB 3.2 Gen 1 ports at 5 Gbps: Six rear-facing external Type-A ports and one internal Type-A header give you enough connectivity to support multiple high-speed peripherals simultaneously. At 5 Gbps per port, you can transfer a 10GB file in under 20 seconds — relevant for pulling large video archives off USB-attached storage without waiting out a USB 2.0 session.
• PCIe 2.0 interface: Slots into any available PCIe x2 or larger slot, including x4, x8, and x16 physical slots. PCIe 2.0 provides sufficient bus bandwidth to keep all seven ports from contending — you won't hit an upstream bottleneck before saturating individual port limits under typical mixed-load conditions.
• SATA power connector: The card pulls supplemental power directly from an available SATA power lead rather than relying solely on the PCIe slot's 25W ceiling. This is the right call when all seven ports are active — under-powered USB cards cause intermittent disconnects that are frustrating to diagnose. A free SATA power connector from your PSU solves it at installation.
• Standard and low-profile bracket both included: A low-profile bracket ships in the box alongside the standard bracket, so the PEXUSB3S7 can install in full-size ATX towers or slim/SFF chassis without ordering a separate accessory. Confirm your chassis slot opening and PCIe card length (10.5 cm) against your case clearance before installing.
• One internal USB Type-A header: The internal port is useful for connecting front-panel USB adapters, internal USB dongles (license keys, wireless adapters), or any USB device you want to keep inside the chassis. It eliminates cable clutter without consuming an external port.
• Compact card footprint: At 10.5 cm long and 12 cm tall (standard bracket), the card fits in cases where longer PCIe cards cause clearance problems near drive bays or PSU shrouds. 72 g — light enough that it won't stress the PCIe slot even in tower cases without additional card support.
• Operating temperature 5°C to 50°C: Designed for conditioned server room and office environments. If your rack closet or AV equipment room runs consistently above 45°C, address airflow before installing — 50°C is the ceiling, not the comfort zone.

Integration & Compatibility

The PEXUSB3S7 works in any system with an available PCIe 2.0 (or later, backward-compatible) slot — Windows workstations, Linux-based NVR appliances, and surveillance PC builds are all supported provided drivers are available for the host OS. The internal USB Type-A header pairs well with internal USB hubs or chassis front-panel USB modules. If you're building out a network video recorder or surveillance workstation that requires multiple USB-attached devices — backup drives, configuration dongles, or USB-to-serial adapters — this card consolidates them onto a single PCIe slot rather than consuming multiple expansion slots. For deployments involving PCIe expansion planning, note that PCIe 2.0 x1 electrical slots may limit aggregate throughput if all seven ports are saturated simultaneously; a x2 or wider slot is preferable for heavy concurrent loads. Pair with a SATA power splitter if your PSU has limited available SATA connectors.

Frequently Asked Questions

Q: Does the PEXUSB3S7 require external power, and what connector does it use?

A: Yes. The PEXUSB3S7 uses a standard SATA power connector for auxiliary power. This supplements the PCIe slot power and is necessary when multiple high-draw USB devices are connected simultaneously. A free SATA power lead from your power supply is required during installation.

Q: Will the PEXUSB3S7 fit in a small form factor (SFF) or slim desktop chassis?

A: Yes. The card ships with both a standard-profile and a low-profile bracket, so it can be installed in either full-size ATX or slim/SFF cases. The card measures 10.5 cm in length — verify your chassis has sufficient PCIe card depth clearance before installing.

Q: What is the maximum data transfer rate per port on the PEXUSB3S7?

A: Each port supports USB 3.2 Gen 1 (USB 3.0) speeds of up to 5 Gbps. This applies to all six external ports and the single internal Type-A port.

Q: How many PCIe lanes does the PEXUSB3S7 require?

A: The card uses the PCIe 2.0 interface. It will physically fit and operate in PCIe x2, x4, x8, or x16 slots. For best aggregate throughput when using all seven ports concurrently, a x2 or wider electrical slot is recommended.

Q: What is the warranty on the PEXUSB3S7?

A: StarTech provides a 2-year manufacturer warranty on the PEXUSB3S7.

Q: What operating temperature range does the PEXUSB3S7 support?

A: The card is rated for operating temperatures of 5°C to 50°C (41°F to 122°F) and storage temperatures of -25°C to 70°C. It is designed for conditioned indoor environments such as offices, server rooms, and equipment closets.

James Everett

The PEXUSB3S7 solves a problem I see constantly on surveillance workstation builds: the motherboard has two or three USB 3.0 ports and the integrator needs to hang six or seven USB-attached devices — backup drives, licensing dongles, configuration tablets, USB-to-RS485 adapters for legacy access control. This card puts all seven at 5 Gbps onto a single PCIe 2.0 slot and gets out of the way. The SATA power requirement is non-negotiable — don't skip it expecting the PCIe slot to carry the load across all ports.

Technical Highlights:

• 5 Gbps per port (USB 3.2 Gen 1): Handles large video file transfers or real-time USB storage writes without the 480 Mbps ceiling that makes USB 2.0 hubs impractical for backup workflows.
• Dual-bracket kit (standard + low-profile): A single SKU covers both ATX tower and SFF chassis deployments — the low-profile bracket ships in the box at 10.5 cm card length, so no separate bracket sourcing is needed for compact builds.
• One internal USB Type-A port: Purpose-built for internal licensing dongles or wireless adapters that would otherwise consume a rear port or dangle on a USB extension inside the chassis.

Deployment Considerations:

• Verify your PCIe slot is electrically x2 or wider if you plan to saturate multiple ports simultaneously — an x1 electrical slot will limit aggregate upstream bandwidth even though the card fits physically in larger slots.
• The operating ceiling of 50°C means this card is not appropriate for unconditioned closets or outdoor enclosures without active cooling — keep ambient temps well below that ceiling for long-term reliability.

This card is the right fit for a surveillance integrator building a Windows-based VMS workstation or NVR-adjacent PC that needs to support multiple simultaneously active USB devices — specifically in SFF chassis where the low-profile bracket option matters and rear-panel USB ports ran out three devices ago.
