APC by Schneider Electric Galaxy vs UPS 50KW 400V with N+1 Power Module for 5 - GVSUPS50KR0B5HS

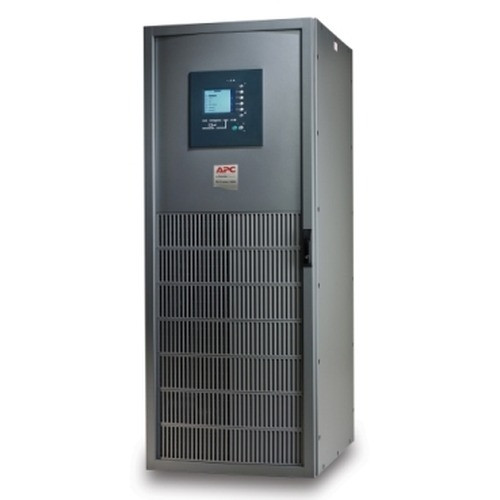

APC by Schneider Electric GVSUPS50KR0B5HS Galaxy VS UPS 50kW 400V with N+1 Power Module

Overview

The APC by Schneider Electric GVSUPS50KR0B5HS is a 50kW (50 kVA) three-phase, double-conversion online UPS built for medium-to-large critical infrastructure environments — data centers, industrial control rooms, broadcast facilities, and enterprise server rooms where sustained uptime is non-negotiable. The N+1 power module architecture means a single module failure does not interrupt output power, providing the kind of hardware-level fault tolerance that SLA-driven operations demand. The Galaxy VS platform is modular by design, pairing here with a Smart Modular 9AH battery shelf to give field teams a growth path that does not require downtime to expand capacity.

Key Features

• Double-Conversion (Online) Topology: The UPS continuously regenerates output power from the DC bus rather than waiting for a disturbance to switch modes. That means zero transfer time to battery during an input fault — the load never sees a gap. For servers, storage arrays, or industrial PLCs that are sensitive to even momentary voltage dips, this is the architecture to specify.
• 50kW / 50 kVA Output Capacity: Sized to carry a fully populated mid-density server rack environment or a consolidated UPS zone in a larger facility. At 90A maximum current output, the unit can feed high-density loads without requiring parallel UPS strings at this scale.
• N+1 Modular Power Architecture: The redundant power module configuration ensures that if any single power module fails, the remaining modules carry the full load without interruption. For environments where scheduled maintenance windows are rare or politically difficult, this is the architecture that keeps the lights on during module swaps.
• 0.99 Input Power Factor: Drawing current at near-unity power factor means the GVSUPS50KR0B5HS pulls clean, efficient power from the upstream electrical infrastructure. Generator sets and distribution panels sized for the load will not need derating — a real planning advantage when this UPS feeds off a generator-backed bus.
• Input THD of 3%: At only 3% input current total harmonic distortion, this UPS places minimal harmonic stress on building power distribution. Facilities with sensitive shared electrical infrastructure — including MRI suites, precision manufacturing, or data centers with shared generator capacity — will benefit from this low THD figure compared to older ferro-resonant or line-interactive designs.
• Output Voltage THD of 3%: The 3% output voltage THD ensures that downstream loads receive a clean sine wave even under non-linear load conditions. Switching power supplies, VFDs, and UPS-fed PDUs all perform more reliably on low-distortion output — fewer nuisance trips, more predictable thermal behavior in connected equipment.
• Wide Input Voltage Window (340–460V AC): The unit tolerates input swings across a 120V range, from 340V to 460V, before switching to battery. In facilities with variable generator output, weak grid connections, or aging electrical infrastructure, this wide window maximizes battery life by reducing unnecessary transfer events.
• ECO Mode for Efficiency Optimization: When input power quality is within tolerance, ECO mode routes power through a high-efficiency bypass path rather than full double-conversion. For facilities with reliable utility power, this delivers measurable energy savings over thousands of operating hours without sacrificing protection during genuine disturbances.
• 2.5:1 Crest Factor Handling: A 2.5:1 crest factor rating means the UPS handles the high peak-to-RMS current demands of switched-mode power supplies — the dominant load type in modern IT environments — without output voltage distortion or thermal stress on output components.
• Heat Dissipation of 5,375 BTU/h: Facilities engineers sizing cooling capacity for the UPS room should budget approximately 5,375 BTU/h (about 1.58 kW) of heat rejection for this unit. That is a modest thermal footprint relative to the 50kW it protects — plan accordingly in hot-aisle/cold-aisle layouts.
• Output Frequency Flexibility (50/60 Hz): The 50/60 Hz output capability makes the GVSUPS50KR0B5HS deployable in both North American and international facilities without hardware changes — relevant for global enterprise rollouts or facilities that source equipment from multiple regions.

Integration and Compatibility

The GVSUPS50KR0B5HS is configured for 400V three-phase input and output operation, with an input operating range of 340–460V and output range of 380–415V. Input frequency is accepted across 40–70 Hz, accommodating both standard utility and generator-supplied power. The unit is designed for integration with APC Galaxy VS Smart Modular 9AH battery shelves — the N+1 power module slot and battery shelf architecture support field-expandable capacity and runtime without a full UPS replacement. For facilities planning a power protection infrastructure around the APC by Schneider Electric Galaxy platform, the Galaxy VS product line offers a consistent modular framework scalable from smaller deployments up through much larger installations. Coordinate input breaker sizing and PDU selection with the 90A maximum output current spec — a 100A upstream breaker per output circuit is a common engineering reference point at this capacity level. When integrating into a three-phase UPS distribution architecture, confirm that downstream PDUs and RPPs are rated for the 380–415V output window.

Frequently Asked Questions

Q: What is the output power capacity of the GVSUPS50KR0B5HS?

A: The GVSUPS50KR0B5HS delivers 50,000W (50kW) / 50 kVA of output power capacity at 400V three-phase.

Q: Does the GVSUPS50KR0B5HS support ECO mode operation?

A: Yes. The Galaxy VS includes ECO mode, which routes power through a high-efficiency bypass path when input power quality is within acceptable parameters, reducing energy consumption during normal utility operation.

Q: What input voltage range does the GVSUPS50KR0B5HS accept before switching to battery?

A: The unit accepts input voltages from 340V to 460V AC before transferring to battery power, providing a wide tolerance window for generator-fed or variable-quality utility environments.

Q: What is the UPS topology used in the GVSUPS50KR0B5HS?

A: It uses double-conversion (online) topology, meaning the load is always powered from the inverted DC bus — there is zero transfer time to battery during an input power disturbance.

Q: What is the input power factor of the GVSUPS50KR0B5HS?

A: The input power factor is 0.99, which means the unit draws near-unity power from the upstream electrical system, minimizing reactive current and reducing generator and distribution panel derating requirements.

Q: What is the heat dissipation rating of the GVSUPS50KR0B5HS?

A: The unit dissipates 5,375 BTU/h. Facilities engineers should account for this thermal load when sizing cooling capacity for the UPS room or enclosure zone.

Ted Perry

The GVSUPS50KR0B5HS sits in a sweet spot for enterprise power protection: the N+1 modular architecture gives you hardware redundancy without doubling your UPS footprint, and the 0.99 input power factor at 50kW means your generator and distribution gear can be sized close to actual kW draw rather than kVA — a meaningful cost difference at this capacity level. I spec this unit when a client needs genuine double-conversion protection on a mid-density server environment and wants the flexibility to service power modules without a planned outage.

Technical Highlights:

• 3% Input THD: At 50kW load, 3% input current THD is low enough to coexist cleanly on shared generator circuits with other sensitive loads — fewer harmonic filters required upstream compared to older-generation UPS designs.
• 340–460V Input Window: A 120V input tolerance range is wider than many competing platforms at this class. Generator output can sag significantly during transient load steps; this window keeps the unit on bypass-free double-conversion through most generator disturbance events.
• 5,375 BTU/h Heat Rejection: Roughly 1.58kW of cooling load for 50kW of protected capacity — that is a strong efficiency ratio. If you are budgeting CRAC/CRAH cooling for a dedicated UPS room, this thermal footprint will not drive you to oversize the cooling plant.

Deployment Considerations:

• The 90A maximum output current at 400V three-phase requires upstream breaker and cable sizing confirmation before installation — coordinate with the facility electrical engineer on feeder conductor sizing and breaker ratings before committing to a switchboard tap.
• ECO mode efficiency gains are real, but only deploy ECO mode if input power quality is consistently clean. On a generator-primary site or in a region with frequent voltage events, stay in full double-conversion to avoid nuisance ECO-mode trips that could pass disturbances to the load.

The GVSUPS50KR0B5HS is the right call for enterprise data center zones, broadcast master control rooms, or industrial automation cells where a single 50kW UPS node with N+1 module redundancy is preferable to managing a parallel-redundant pair of smaller units.
