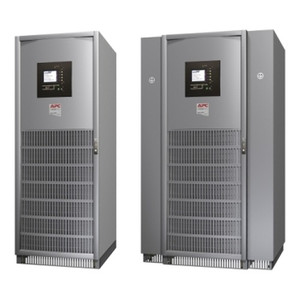

APC by Schneider Electric GVSUPS40KB4GS-A 40kW 480V Smart Modular Tower UPS
The GVSUPS40KB4GS-A is a 40kW (40kVA) three-phase tower UPS designed for data centers, industrial automation floors, and mission-critical facilities running 480V AC distribution. It delivers true double-conversion sine wave output, meaning connected loads see clean, regulated power regardless of what the utility feed is doing — no switching transients, no voltage sag, no waveform distortion passed downstream. If you're protecting variable-frequency drives, server clusters, or precision instrumentation at 480V, this is the class of UPS that belongs in front of them.
When This Is the Correct Choice
The GVSUPS40KB4GS-A fits facilities already running 480V three-phase distribution where you need 40kW of online double-conversion protection in a tower form factor. It integrates into existing power infrastructure without a step-down transformer between the UPS and the load — a significant cost and efficiency advantage over lower-voltage alternatives. If your critical load sits between 20kW and 35kW today with room to grow, this unit has overhead to absorb expansion without replacement.
When to Choose a Different Model
If your distribution voltage is 208V or 400V, look at other Galaxy VS variants in the same family rated for those input levels — this unit is built exclusively for 480V AC input and output. If your load is under 20kW and tower form factor isn't a constraint, a smaller Galaxy VS configuration will give you the same protection at lower acquisition and operating cost.
Key Features
- 40kW Online Double-Conversion: Full double-conversion architecture means zero transfer time to battery — the inverter is always driving the load, so a utility failure causes no even-millisecond interruption. Critical for 480V VFDs and server clusters that can't tolerate switchover gaps.
- 480V AC Input and Output (408–552V range): The 408–552V AC input window accommodates utility fluctuations without switching to battery unnecessarily. Wide input tolerance reduces battery cycling and extends runtime between charges.
- 2× 9Ah Smart Modular Batteries: Internal smart battery modules allow hot-swap replacement without powering down the load. At 40% load, expect approximately 11 minutes of runtime — enough for controlled shutdown or generator transfer on most sites.
- Pure Sine Wave Output: Sine wave output is non-negotiable for VFDs and UPS-sensitive medical or lab equipment. Square-wave or stepped approximations cause motor heating and drive faults at 480V.
- SNMP/HTTP and SNMP/Modbus Network Management: Dual protocol support means this UPS speaks to both IT monitoring platforms (SNMP traps, HTTP dashboards) and industrial SCADA/BMS systems via Modbus — one device, two integration paths.
- 61 dB(A) Sound Emission: At 61 dB(A), the unit is audible in quiet server rooms but acceptable in a dedicated electrical room or noisy industrial environment. Factor this into placement if the UPS lives in a staffed space.
- Operating Up to 40°C (104°F): Full-rated operation to 40°C means it handles warm electrical rooms without derating — useful in facilities where HVAC on the power room is undersized.
- Tower Form Factor — 58.5″ × 20.5″ × 33.4″ at 1,014 lb: Plan floor reinforcement and a clear equipment path before delivery. At over half a ton, rigging and floor load capacity are pre-installation engineering items, not afterthoughts.
Integration and Compatibility
SNMP/HTTP management integrates with standard NMS platforms including SolarWinds, PRTG, and Nagios via standard MIBs. Modbus TCP enables direct integration with building management systems and industrial controllers without a protocol gateway. Confirm switchgear compatibility for 480V three-phase before commissioning — input circuit breaker sizing and wire gauge must match the 40kW draw plus startup inrush.
Frequently Asked Questions
Q: What is the backup runtime of the GVSUPS40KB4GS-A at half load?
A: At half load (approximately 20kW), the GVSUPS40KB4GS-A provides approximately 11 minutes of battery runtime from its two internal 9Ah smart modules. Runtime at higher loads will be shorter; runtime can be extended with external battery cabinets if supported.
Q: What input voltage range does the GVSUPS40KB4GS-A support?
A: The unit accepts 408V AC to 552V AC input, providing a wide tolerance window that reduces unnecessary battery switching during utility fluctuations on 480V three-phase services.
Q: Does the GVSUPS40KB4GS-A support hot-swap battery replacement?
A: Yes. The internal smart battery modules are designed for hot-swap service, allowing replacement without de-energizing the protected load — a key operational advantage in 24/7 environments.
Q: What network management protocols does the GVSUPS40KB4GS-A support?
A: The unit supports SNMP/HTTP for IT infrastructure monitoring platforms and SNMP/Modbus for industrial BMS and SCADA integration, making it dual-purpose across IT and OT environments.
Q: What is the warranty on the GVSUPS40KB4GS-A?
A: The GVSUPS40KB4GS-A carries a 1-year manufacturer warranty.
Q: What is the maximum operating temperature for the GVSUPS40KB4GS-A?
A: The unit is rated for operation up to 40°C (104°F), allowing deployment in warm electrical rooms without derating the output capacity.
The GVSUPS40KB4GS-A is one of the few tower-format UPS units I'd recommend without hesitation for a 480V industrial facility that can't accommodate a floor-standing frame cabinet but still needs true online double-conversion at 40kW. At 1,014 lb it's not a casual install — but for a manufacturing floor running 480V VFDs or a colocation cage with three-phase 480V distribution, the double-conversion architecture and the 408–552V input window are the specs that matter most.
Technical Highlights:
- 40kW Double-Conversion at 480V: Full online topology keeps the inverter continuously driving the load — no transfer gap during utility failure. At 480V, this eliminates the step-down transformer overhead that 208V UPS alternatives would require in front of 480V loads.
- SNMP/HTTP + SNMP/Modbus Dual Management: Genuinely rare at this power class. IT teams get standard SNMP traps into their NMS; facilities teams get Modbus integration directly into BMS/SCADA without a gateway device in between. One UPS, two management ecosystems covered.
- 11-Minute Half-Load Runtime, Hot-Swap Batteries: The 2× 9Ah internal modules deliver 11 minutes at 20kW — enough for generator transfer on most sites. Hot-swap design means you replace cells without dropping the load, which matters in 24/7 operations where a scheduled maintenance window costs money.
Deployment Considerations:
- At 1,014 lb and 58.5″ tall, floor load capacity and a clear rigging path need to be confirmed before delivery day — this is an electrical contractor and rigger coordination item, not a last-minute logistics detail.
- The maximum operating elevation of 3,229 ft (984m) is a real constraint: sites above that altitude require derating or a different unit. Verify your site elevation before specifying this model for mountain-region data centers or industrial plants.
The GVSUPS40KB4GS-A is the right specification for a 480V industrial or data center facility that needs 40kW of online UPS protection in a tower footprint, particularly where Modbus integration into an existing building management system is a hard requirement alongside standard SNMP monitoring.
