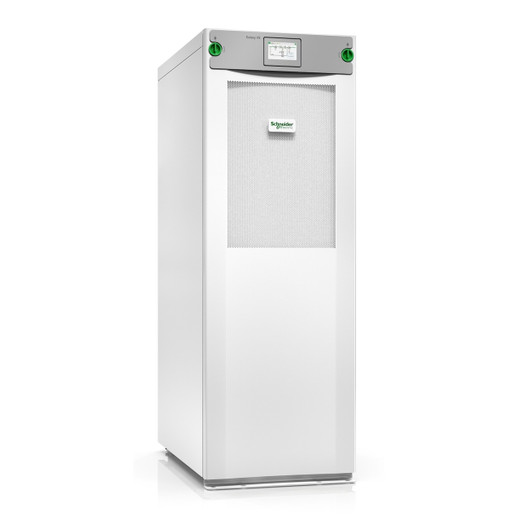

APC by Schneider Electric GVSUPS25KFS Galaxy VS 25kVA Three-Phase Double-Conversion UPS

Overview

The APC by Schneider Electric Galaxy VS UPS GVSUPS25KFS is a 25 kVA three-phase double-conversion online UPS in a large tower form factor, purpose-built for commercial, industrial, and data center environments where power interruptions carry real operational cost. Unlike line-interactive designs that switch on fault detection, this unit stays on inverter power continuously — so your connected equipment sees a clean, regulated 208V sine wave at all times, not just when utility power drops. For three-phase UPS systems supporting mission-critical loads, that distinction matters more than most spec comparisons.

Configured for external battery expansion, the GVSUPS25KFS ships without internal batteries by design, letting you pair it with the appropriate APC Galaxy VS battery cabinets to hit whatever runtime target your site requires — whether that's 5 minutes to allow a clean shutdown or 30+ minutes to bridge a generator start sequence. Runtime is no longer baked in at the factory; it scales with your deployment.

Key Features

• 25 kVA / 25 kW Double-Conversion Output: Full double-conversion topology means your load is always running off the inverter — there is no transfer gap, no ride-through window. The 0 ns transfer time listed in the spec sheet is not a marketing claim; it's a structural property of online UPS architecture. Critical servers, industrial controllers, and VoIP infrastructure stay on conditioned power without interruption.
• Pure Sine Wave Output: Outputs a true sine wave at 200V, 208V, or 220V AC selectable — not a stepped approximation. Active power factor correction loads, variable-frequency drives, and medical-adjacent equipment all require this waveform. A simulated or modified sine wave UPS will cause problems with this class of equipment; this unit eliminates that risk.
• Wide Input Voltage Range (177–239V AC) with 70 Hz Tolerance: The GVSUPS25KFS accepts utility voltage as low as 177V AC before switching to battery, which means it stays on utility power through brown-brown conditions that would force lesser units onto battery. That directly extends battery life and reduces wear cycles in environments with marginal utility quality.
• Three-Phase Input/Output via Hardwired Connections: Connects via hard-wire 4-wire (3P+E) or 5-wire (3P+N+E) — appropriate for the load capacity and eliminates the connector reliability concerns that come with high-current plug connections. Plan your electrical rough-in accordingly; this is a panel-connected installation, not a plug-and-play unit.
• 480V DC Bus Architecture: The 480V DC internal bus supports the external battery cabinet architecture and is consistent with the Galaxy VS platform's design for medium-to-large deployments. When sizing external battery enclosures, confirm compatibility within the Galaxy VS battery cabinet family.
• Web/SNMP/Modbus TCP Network Management: All three management protocols are supported natively. SNMP lets your NMS poll UPS status and receive traps on fault conditions. Modbus TCP integrates directly into building automation systems and industrial SCADA platforms without a gateway. The touchscreen LCD provides local status visibility without needing a laptop or KVM on-site.
• Thermal Dissipation of 5,526 BTU/h: Plan cooling capacity around this figure. At full load, the unit pushes roughly 1,620 watts of heat into the room. For a sealed server room or IDF closet, that's a meaningful addition to the cooling budget — factor it into your HVAC sizing before installation, not after.
• Large Tower Form Factor (58.46" H × 20.51" W × 33.35" D, 210 kg): At 463 lbs / 210 kg, this unit requires proper floor loading verification and two-person or mechanical lift for positioning. The 58-inch height clears most raised-floor or standard ceiling installations, but confirm doorway and pathway clearance before delivery.

Integration & Compatibility

The GVSUPS25KFS sits within APC's Galaxy VS platform, which is designed for phased capacity expansion. The external battery architecture means you can add runtime without replacing the UPS itself — a practical consideration for sites that expect load growth or runtime requirement changes over the equipment lifecycle. Network management via Web interface, SNMP, and Modbus TCP covers the majority of enterprise monitoring and BMS integration requirements without additional gateways or protocol converters. For sites running a network management infrastructure or building automation system, all three protocols are available out of the box. The three-phase output at 208V is the standard for North American data center and industrial distribution panels in this power class; confirm your downstream PDU or distribution panel accepts 208V three-phase input before finalizing the installation design.

Frequently Asked Questions

Q: Does the GVSUPS25KFS include internal batteries?

A: No. The GVSUPS25KFS is configured for external battery support only — it ships without internal batteries. Runtime is provided by external APC Galaxy VS battery cabinets sized to your site's runtime requirements. This design allows runtime to be scaled independently of the UPS itself.

Q: What is the transfer time on the GVSUPS25KFS?

A: Transfer time is 0 ns. The Galaxy VS uses a double-conversion online topology, meaning the load runs continuously off the inverter. There is no switching event on utility failure — the output is uninterrupted by design, not by fast-switching.

Q: What output voltages does the GVSUPS25KFS support?

A: The unit provides selectable output at 200V AC, 208V AC, or 220V AC, three-phase. This covers the standard North American 208V data center distribution voltage as well as 200V and 220V configurations used in international or mixed-infrastructure environments.

Q: What network management protocols does the GVSUPS25KFS support?

A: The GVSUPS25KFS supports Web-based management, SNMP, and Modbus TCP natively. SNMP enables integration with enterprise NMS platforms; Modbus TCP connects directly to building automation and industrial SCADA systems without a protocol gateway. A touchscreen LCD is also present for local status monitoring.

Q: What is the warranty on the GVSUPS25KFS?

A: The manufacturer warranty on the GVSUPS25KFS is 1 year.

Q: What are the electrical connection requirements for the GVSUPS25KFS?

A: The GVSUPS25KFS connects via hardwired connections only — either a 4-wire (3P+E) or 5-wire (3P+N+E) configuration. There is no plug connector. The unit requires a dedicated three-phase circuit fed from your facility's electrical distribution panel. Licensed electrical installation is required.

Eden Phillips

The GVSUPS25KFS is the variant I recommend when a site needs 25kVA of three-phase protection but wants runtime flexibility handled at the battery cabinet level rather than locked into the UPS chassis. The external-battery-only configuration is deliberate — it's not a cost-cut; it means your runtime target is an infrastructure decision you make with the battery cabinets, not something you're stuck with at 5 minutes internal runtime when your generator takes 12 minutes to stabilize.

Technical Highlights:

• 0 ns Transfer Time: This is the structural result of double-conversion topology, not a switching-speed achievement. The load is always on the inverter; utility failure doesn't trigger a transfer event. For PLC-driven automation equipment and medical-adjacent loads that are sensitive to even sub-cycle interruptions, this is the architecture to specify.
• 177–239V AC Input Range: A 62-volt acceptance window means the unit stays on utility through brown-out conditions that would cycle a narrower-range UPS to battery repeatedly. Fewer battery discharges = longer battery life. In industrial environments with variable utility quality, this range is a practical operating advantage.
• 5,526 BTU/h Thermal Output: At full 25kW load, you're adding roughly 1,620W of heat to the room. In a dense server room already running near cooling capacity, that figure needs to be in your HVAC calculation before the unit arrives — not discovered during commissioning.

Deployment Considerations:

• At 210 kg (463 lbs) and 58.46 inches tall, pre-plan your delivery path, floor loading capacity, and positioning lift. This is not a two-person carry from a loading dock — mechanical assist is required for most installations.
• The hardwired-only input (no plug connector) means a licensed electrician and a dedicated three-phase circuit are prerequisites. Budget installation time and permitting accordingly; treat it as a switchgear-class installation, not a plug-in appliance.

The GVSUPS25KFS is well-matched to medium-density data center rows, industrial control rooms, and edge computing facilities where three-phase 208V distribution is already in place and the site needs runtime extensibility beyond what a fixed-battery UPS can offer — specifically anywhere a generator start sequence or extended utility outage requires more than 10–15 minutes of ride-through.
