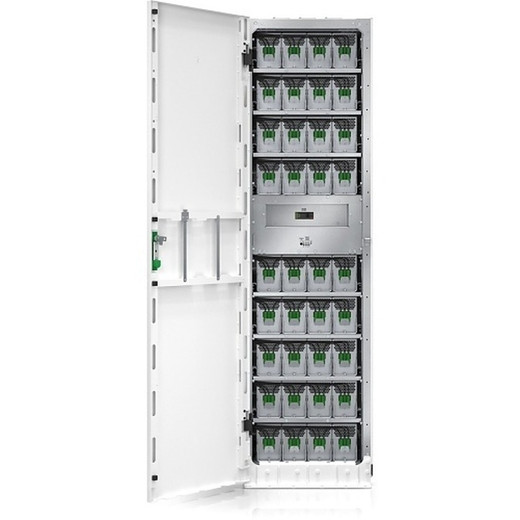

APC by Schneider Electric Galaxy vs Modular Battery Cabinet for UP to 9 Smart Modular - GVSMODBC9

APC by Schneider Electric GVSMODBC9 Galaxy VS Modular Battery Cabinet

Overview

The GVSMODBC9 is a dedicated enclosed battery cabinet designed for the Galaxy VS UPS family, accommodating up to 9 Smart Modular Battery Units in a single, self-contained enclosure. At 903.9 lb (410 kg) fully configured and standing 77.56 inches (197 cm) tall, this is a serious piece of critical power infrastructure — sized for data centers, large network equipment rooms, and industrial facilities where extended runtime on a Galaxy VS UPS is a core part of the availability strategy. The enclosed cabinet design keeps VRLA batteries contained, protected, and maintainable without requiring separate open-rack battery arrangements.

For engineers speccing APC by Schneider Electric power infrastructure into a Galaxy VS deployment, the GVSMODBC9 consolidates runtime extension into a single addressable cabinet rather than distributing battery modules across the UPS chassis or floor space. That matters for both serviceability and footprint planning in tight equipment rooms.

Key Features

• Galaxy VS Range Compatibility: Built exclusively for the Galaxy VS UPS platform — if you're deploying a Galaxy VS and need runtime beyond the internal battery capacity, this cabinet is the direct-fit extension path. No adapters, no compatibility guesswork.
• Up to 9 Smart Modular Battery Positions: Nine module slots give you meaningful scalability in a single cabinet. You can populate fewer modules initially and expand as runtime requirements grow, avoiding the capital cost of fully populating the cabinet on day one.
• Enclosed Cabinet Form Factor: The enclosed battery cabinet design physically isolates VRLA battery modules from the surrounding equipment room environment. This matters in facilities where air quality, dust, or physical access control around batteries is a concern — and it simplifies cable management compared to open-frame battery racks.
• VRLA Battery Technology: Valve-Regulated Lead-Acid batteries require no water maintenance and can be installed in any orientation, making them practical for enclosed cabinet deployments where ventilation and maintenance access are constrained compared to flooded-cell alternatives.
• 197 cm (77.56 in) Height: Full-height cabinet footprint — plan for standard data center ceiling clearance and aisle width. At this height, it integrates naturally into rows of standard 42U–48U server racks without standing out as an odd form factor in the room layout.
• 903.9 lb (410 kg) Operational Weight: Floor load planning is non-negotiable at this weight. Verify your raised floor or concrete slab rating before positioning — 410 kg concentrated in a single cabinet footprint exceeds the capacity of many older raised-floor panels without supplemental support or repositioning to a structural point.
• White Finish: The white cabinet finish matches Galaxy VS UPS units, keeping the visual presentation consistent in customer-facing or co-location environments where equipment appearance is part of the facility standard.

Integration & Compatibility

The GVSMODBC9 is designed specifically for the Galaxy VS UPS platform and should not be paired with other UPS families without confirming compatibility with APC by Schneider Electric's configuration tools. Battery cabinet interconnection on the Galaxy VS uses the platform's native battery bus — the cabinet connects to the UPS via the designated battery bus cables specified for the Galaxy VS installation.

For facilities planning extended runtime across multiple battery cabinets, verify the Galaxy VS UPS model's maximum supported external battery cabinet count and total battery bus length limits before ordering multiple GVSMODBC9 units. Runtime calculations should be run through APC's runtime sizing tools using the actual load profile, not theoretical maximums, to avoid over-speccing or under-speccing cabinet count.

This cabinet pairs with a power distribution and UPS monitoring strategy — the Galaxy VS platform supports network management cards for remote battery health monitoring, which is worth configuring when deploying an external battery cabinet where manual inspection intervals may be longer than for in-chassis batteries. For full data center power planning, consider integrating with APC power management software to track battery state across the installation.

Frequently Asked Questions

Q: What UPS platform is the GVSMODBC9 compatible with?

A: The GVSMODBC9 is designed for the Galaxy VS UPS family. It is not a universal battery cabinet — verify compatibility with your specific Galaxy VS model before ordering.

Q: How many battery modules does the GVSMODBC9 support?

A: The cabinet accommodates up to 9 Smart Modular Battery Units. You can partially populate the cabinet and add modules later as runtime requirements increase.

Q: What type of batteries does the GVSMODBC9 use?

A: The GVSMODBC9 uses VRLA (Valve-Regulated Lead-Acid) battery modules. These are maintenance-free sealed batteries that do not require water topping and can be installed in the enclosed cabinet without special ventilation beyond standard UPS room requirements.

Q: What are the floor load requirements for the GVSMODBC9?

A: The cabinet weighs 903.9 lb (410 kg) when configured. You must verify your facility's floor load rating — raised floor panels and older concrete slabs may require additional structural support or repositioning to a load-bearing point before installation.

Q: What are the dimensions of the GVSMODBC9?

A: The GVSMODBC9 stands 77.56 inches (197 cm) tall. Verify ceiling clearance and aisle width in your equipment room before delivery, as the full-height cabinet requires standard data center clearances for installation and door swing.

Q: Can multiple GVSMODBC9 cabinets be connected to a single Galaxy VS UPS?

A: The Galaxy VS platform supports external battery cabinets, but the maximum number of cabinets per UPS depends on the specific Galaxy VS model. Consult the Galaxy VS installation documentation or APC's configuration tools to confirm the supported cabinet count and battery bus length limits for your installation.

Ted Perry

The GVSMODBC9 is a runtime extension cabinet, not a standalone product — its entire value proposition depends on being paired correctly with a Galaxy VS UPS. At 410 kg and 197 cm tall, this cabinet demands serious pre-installation planning that a lot of integrators underestimate on their first Galaxy VS deployment.

Technical Highlights:

• 9-Module Capacity: Nine Smart Modular Battery slots in a single enclosed cabinet lets you stage the investment — populate 3 or 4 modules for initial runtime targets, then add modules without adding another cabinet or another battery bus connection to the UPS.
• VRLA Chemistry: Sealed, maintenance-free battery modules mean no electrolyte checks and no hydrogen venting concerns that would require a dedicated battery room. Standard equipment room ventilation is sufficient, which matters when you're placing this cabinet in a shared server room rather than a purpose-built battery space.
• 903.9 lb / 410 kg Structural Load: This is the spec that causes the most field surprises. A standard 600 lb/sq ft raised floor panel won't handle this without additional support legs or relocation to a hard floor zone — confirm your floor spec before the cabinet ships, not after it arrives at the loading dock.

Deployment Considerations:

• The 77.56-inch (197 cm) height requires standard data center door clearance for delivery — verify corridor and equipment room door dimensions before scheduling delivery, particularly in older facilities with sub-standard door heights.
• The GVSMODBC9 is Galaxy VS-specific. Do not attempt to use it as a generic battery cabinet with other UPS platforms — the battery bus interface and module format are proprietary to the Galaxy VS line.

The GVSMODBC9 is the right call for co-location or enterprise data center deployments running Galaxy VS UPS units where runtime requirements exceed internal battery capacity and the facility has the structural floor rating to support a 410 kg enclosed cabinet in the target position.
