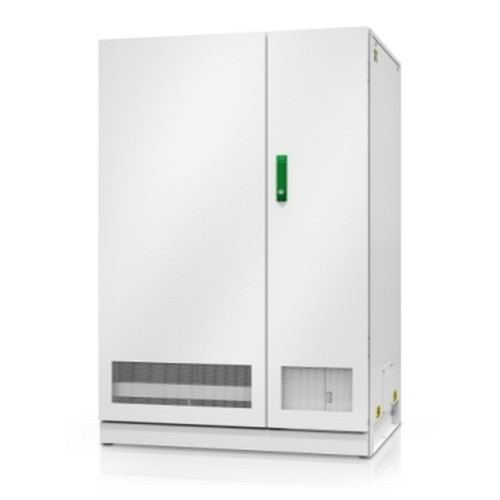

APC by Schneider Electric Galaxy vs Classic Battery Cabinet UL Type 5 - GVSCBT5

APC by Schneider Electric GVSCBT5 Galaxy VS Classic Battery Cabinet UL Type 5

Overview

The GVSCBT5 is a dedicated external battery cabinet engineered specifically for the APC Galaxy VS UPS family, delivering the extended runtime capacity that mission-critical data centers, large-scale surveillance infrastructure, and industrial facilities demand when a single integrated battery module is not enough. Weighing in at 3,359.8 lb (1,524 kg) fully loaded, this is not a unit you drop in and reconfigure — it is a permanent power infrastructure commitment that belongs in the same conversation as raised floor loading, seismic anchoring, and PDU layout. If your UPS battery backup expansion plan involves a Galaxy VS and you need UL Type 5 certification for your compliance requirements, the GVSCBT5 is the cabinet to spec.

APC by Schneider Electric designed this cabinet to pair directly with the APC Galaxy VS UPS line, using VRLA (valve-regulated lead-acid) battery technology — the same chemistry used across enterprise-class UPS deployments where sealed, maintenance-reduced operation and predictable discharge curves matter. VRLA batteries do not require watering, produce minimal off-gassing under normal conditions, and carry well-understood replacement cycles, which simplifies your facility maintenance calendar.

Key Features

• Galaxy VS Range Compatibility: Designed exclusively for the Galaxy VS UPS family — this is not a universal cabinet. If you are running a Galaxy VS and need runtime extension, the GVSCBT5 integrates without adapter kits or compatibility guesswork. If your UPS is a different APC model family, stop here and confirm your range before purchasing.
• VRLA Battery Technology: Valve-regulated lead-acid chemistry means sealed, spill-proof operation with no routine water maintenance. For facilities with limited battery room staff or where the cabinet lives on a raised floor near active IT equipment, VRLA reduces the risk of electrolyte exposure and simplifies compliance with site safety requirements.
• UL Type 5 Certification: UL Type 5 enclosure classification signals that this cabinet is designed to keep internal components protected in demanding indoor environments. For data centers and facilities where your authority having jurisdiction (AHJ) or insurance underwriter requires certified enclosure ratings on power infrastructure, this spec is the one to put in your submittal package.
• 3,359.8 lb (1,524 kg) Installed Weight: That is a significant floor loading number — roughly the weight of a full-size pickup truck. Before you finalize placement, verify your raised floor or concrete slab loading spec. Most raised floors are rated 1,000–2,000 lb per tile; this cabinet will require structural reinforcement or direct slab placement in most installations. This is the most commonly underestimated spec on large battery cabinets.
• Large Physical Footprint — Package Dimensions 66.46 in H × 39.29 in W × 54.02 in D (168.8 × 99.8 × 137.2 cm): The shipping package alone is over 5.5 feet tall and nearly 4.5 feet deep. Plan your receiving dock, freight elevator clearance, and data hall aisle width before this unit ships. Late-stage discovery of a door frame or elevator that is 2 inches too narrow on a 3,400 lb cabinet is a costly project delay.
• VRLA Chemistry Runtime Extension: Adding an external battery cabinet multiplies available runtime at a given load — the exact duration depends on your Galaxy VS model, the load percentage, and the number of battery modules installed. Use APC's runtime calculator with your specific Galaxy VS kVA rating and load profile to confirm the runtime delta before committing.

Integration & Compatibility

The GVSCBT5 is compatible exclusively with the Galaxy VS UPS series. It connects via the Galaxy VS's external battery interface — no third-party UPS platforms are supported. Confirm your Galaxy VS model variant supports external battery cabinet expansion (not all kVA configurations in the Galaxy VS line support the same number of external cabinets — check the Galaxy VS installation guide for your specific unit). For facilities standardizing on APC power infrastructure, the GVSCBT5 fits within a broader data center power architecture that includes APC's InfraStruXure framework and EcoStruxure Power integration.

Consult a licensed electrician and your structural engineer before finalizing installation. The 1,524 kg loaded weight, combined with the need for proper battery interconnect cabling and local electrical code compliance, makes this a project-managed installation, not a field swap.

Frequently Asked Questions

Q: Is the GVSCBT5 compatible with APC UPS models other than the Galaxy VS?

A: No. The GVSCBT5 is designed specifically for the APC Galaxy VS UPS family. It is not a universal battery cabinet and will not integrate with other APC UPS product lines or third-party UPS platforms without manufacturer-confirmed compatibility.

Q: What type of batteries does the GVSCBT5 use?

A: The GVSCBT5 uses VRLA (valve-regulated lead-acid) batteries. VRLA is a sealed chemistry that requires no routine watering, produces minimal off-gassing under normal conditions, and is standard across enterprise UPS deployments.

Q: What does the UL Type 5 rating mean for the GVSCBT5?

A: UL Type 5 is an enclosure classification indicating the cabinet is designed to protect internal components in demanding indoor environments. This rating is relevant for facilities where AHJ approval or insurance requirements mandate certified enclosure ratings on power infrastructure.

Q: What floor loading does the GVSCBT5 require?

A: The GVSCBT5 weighs 3,359.8 lb (1,524 kg) when installed. This exceeds the capacity of most standard raised floor tiles rated at 1,000–2,000 lb per tile. Structural engineering review and likely direct concrete slab placement or reinforcement is required before installation.

Q: What are the shipping dimensions for the GVSCBT5?

A: The packaged unit ships at 66.46 in H × 39.29 in W × 54.02 in D (168.8 × 99.8 × 137.2 cm) and weighs 3,459.06 lb (1,569 kg). Receiving dock clearance, freight elevator capacity, and aisle width must all be confirmed before delivery is scheduled.

Q: How much runtime does the GVSCBT5 add to a Galaxy VS UPS?

A: Runtime extension depends on your specific Galaxy VS kVA model, current load percentage, and the number of battery modules installed. APC provides a runtime calculator for Galaxy VS configurations — use it with your actual load data to determine the runtime delta for your deployment.

Eden Phillips

The GVSCBT5 is one of those units that separates a serious power infrastructure project from an underprepared one. The 1,524 kg installed weight is the spec that will define whether this cabinet gets deployed on schedule or sits in a receiving area while a structural engineer gets called in. I have seen this exact scenario delay data center buildouts by weeks — and the GVSCBT5's package weight of 1,569 kg (3,459 lb) means the conversation with your freight and facilities teams needs to happen before the PO is cut, not after the unit arrives at the dock.

Technical Highlights:

• Installed Weight — 1,524 kg (3,359.8 lb): This number drives every site prep decision — floor loading rating, slab vs. raised floor placement, seismic anchoring requirements, and forklift or rigging access within the data hall.
• Package Dimensions — 168.8 cm H × 99.8 cm W × 137.2 cm D: At nearly 5.5 feet tall and 4.5 feet deep in the shipping package, confirm every transit chokepoint: loading dock door height, freight elevator interior dimensions, and final aisle clearance before scheduling delivery.
• VRLA Battery Chemistry: Sealed, no-maintenance operation is the right call for installations where the battery cabinet is not in a dedicated ventilated battery room — VRLA's minimal off-gassing under normal charge/discharge keeps it viable in conditioned IT spaces, provided your Galaxy VS battery management handles cell monitoring correctly.

Deployment Considerations:

• Confirm Galaxy VS model-level compatibility before ordering — not every Galaxy VS kVA variant supports the same maximum number of external battery cabinets, and adding a second GVSCBT5 where only one is supported creates a commissioning problem.
• The 99 kg delta between shipping weight (1,569 kg) and installed weight (1,524 kg) represents packaging and pallet — factor this into your rigging plan, as the unit will still require mechanical assist for final positioning even after unpacking.

The GVSCBT5 is the right specification for a Galaxy VS deployment in a colocation facility, financial trading floor, or large-scale physical security operations center where extended runtime under partial load is a contractual or operational requirement — and where the facility team has done the structural homework to support it.
