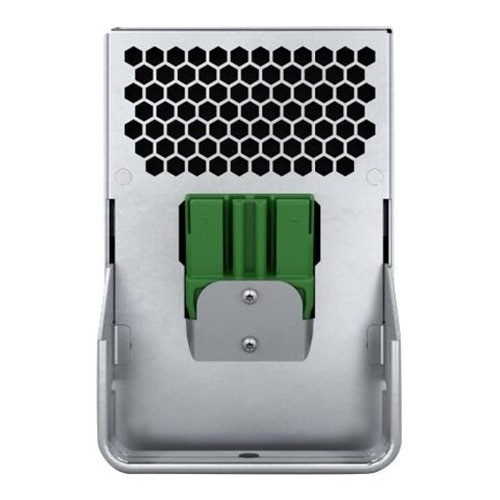

APC by Schneider Electric Galaxy vs 9AH Smart Long-life High Capacity Battery Module - GVSBTHULL

APC by Schneider Electric GVSBTHULL Galaxy VS 9Ah Smart Long-Life Battery Module

Overview

The APC by Schneider Electric GVSBTHULL is a purpose-built 9Ah sealed lead acid (VRLA) battery module engineered specifically for Galaxy VS uninterruptible power supply systems. If your facility runs a Galaxy VS UPS and you need a high-capacity, long-life replacement or expansion battery, this is the direct-fit option — no adapter kits, no compatibility guesswork. At 780mm deep and 130mm wide, the module slides into the Galaxy VS battery frame and brings 9 amp-hours of runtime capacity in a single unit. For data centers, network rooms, and critical infrastructure sites where UPS runtime is the last line of defense against unplanned downtime, selecting the correct battery module is not a spec-sheet exercise — it's an operational risk decision.

The GVSBTHULL is sourced factory-new from APC by Schneider Electric, ensuring you receive a genuine module with full manufacturer warranty coverage — not a grey-market or third-party equivalent that may not meet the Galaxy VS charge management profile.

Key Features

• 9Ah VRLA Chemistry: Sealed lead acid (valve-regulated) construction means no electrolyte topping, no venting requirements, and no need for dedicated battery rooms. Deploy in a standard server room without the ventilation overhead that flooded cells demand — a real operational simplifier in space-constrained environments.
• Galaxy VS System Compatibility: The GVSBTHULL is validated for Galaxy VS UPS platforms. Compatibility is hardware-specific, not generic — pairing the wrong battery module with a Galaxy VS can disrupt the UPS's battery management system and void manufacturer support. This module eliminates that risk.
• Compact Footprint, Long Depth: At 130mm wide × 160mm tall × 780mm deep, the module is designed for rack-integrated or chassis-mounted deployment inside the Galaxy VS battery cabinet. Confirm your cabinet has adequate depth clearance before ordering — 780mm is the dominant dimension here.
• Operating Temperature Range 18–27°C: VRLA batteries are temperature-sensitive. APC specifies a narrow 18–27°C operating band to maximize cycle life. If your equipment room runs warm (above 27°C consistently), expect accelerated capacity degradation — factor this into your replacement schedule and room cooling plan.
• Storage Temperature 0–40°C: Modules can be warehoused across a wider 0–40°C range, giving you flexibility for staged deployments or keeping a spare on the shelf. Avoid storage at temperature extremes to preserve initial capacity.
• Humidity Tolerance: Rated for 0–95% relative humidity during operation and 10–80% in storage. The sealed VRLA construction resists moisture ingress that would compromise flooded-cell alternatives — appropriate for humid plant environments or coastal facilities where humidity control is imperfect.
• 33 kg Shipping Weight: At 33kg gross packaged, plan for two-person handling during installation. Confirm your Galaxy VS battery frame load rating before staging multiple modules in a single cabinet — lead-acid battery weight accumulates quickly in dense configurations.

Integration and Compatibility

The GVSBTHULL is designed exclusively for the APC by Schneider Electric Galaxy VS UPS platform. It is not a universal battery module and should not be used in other Galaxy series chassis (Galaxy VX, Galaxy VM) without explicit APC confirmation. If you are managing a mixed fleet of power and UPS systems, verify the exact Galaxy VS model number in your inventory before ordering. The Galaxy VS battery management system monitors individual module health — installing non-validated batteries can generate false alarms or suppress real fault conditions, both operationally dangerous outcomes. For facilities building out redundant power infrastructure, consult a UPS battery sizing guide to determine the number of GVSBTHULL modules required to meet your target runtime at your actual load.

Frequently Asked Questions

Q: Is the GVSBTHULL compatible with Galaxy VS UPS models other than the standard Galaxy VS?

A: The GVSBTHULL is validated for the Galaxy VS platform. Compatibility with Galaxy VX, Galaxy VM, or other APC Galaxy series is not confirmed by the available evidence. Verify your exact UPS model number with APC before ordering for non-standard Galaxy VS configurations.

Q: What battery technology does the GVSBTHULL use?

A: The GVSBTHULL uses sealed lead acid (VRLA) technology. VRLA batteries are valve-regulated and maintenance-free — no electrolyte topping, no hydrogen venting requirements, and no need for a dedicated battery room under normal operating conditions.

Q: What is the optimal operating temperature for the GVSBTHULL?

A: APC specifies 18–27°C as the operating temperature range. Sustained operation above 27°C will accelerate battery aging and reduce usable cycle life. If your equipment room runs consistently warm, factor a shortened replacement interval into your maintenance plan.

Q: How heavy is the GVSBTHULL module?

A: The packaged shipping weight is 33kg. Two-person handling is strongly recommended during installation. Confirm your Galaxy VS battery frame and floor load ratings before staging multiple modules in a single cabinet.

Q: Can the GVSBTHULL be stored before installation?

A: Yes. Storage temperature range is 0–40°C with 10–80% relative humidity. Avoid extended storage at temperature extremes to preserve initial battery capacity. VRLA batteries do self-discharge over time — follow APC's recommended pre-installation charge procedure if the module has been stored for an extended period.

Q: What are the physical dimensions of the GVSBTHULL?

A: The module measures 130mm wide × 160mm tall × 780mm deep. The 780mm depth is the critical clearance dimension — verify your Galaxy VS battery cabinet accommodates this before ordering.

Karl Wilson

The GVSBTHULL is one of those components that only becomes interesting when something goes wrong — and that's exactly why you need to get it right the first time. At 9Ah in a sealed VRLA format, this module fits the Galaxy VS battery architecture directly, and the narrow 18–27°C operating window is the spec I'd want facility managers to internalize before this goes anywhere near a warm equipment room.

Technical Highlights:

• 9Ah VRLA Capacity: Sealed lead acid construction delivers maintenance-free operation — no electrolyte service, no dedicated battery room ventilation required, and no scheduled watering intervals that flooded-cell banks demand.
• 780mm Module Depth: The dominant physical constraint for installation planning. At 130mm × 160mm × 780mm, cabinet depth clearance must be confirmed before procurement — this is not a standard 1U footprint and cannot be forced into undersized frames.
• 33kg Packaged Weight: Dense for a single module. When you're staging multiple GVSBTHULL units in a Galaxy VS battery cabinet, floor load calculations matter — lead-acid weight accumulates fast and is frequently underestimated during rack planning.

Deployment Considerations:

• The 18–27°C operating range is tighter than many facilities assume. If the equipment room regularly exceeds 27°C during summer peak loads, build a more aggressive battery replacement cycle into your maintenance contract — capacity degradation accelerates nonlinearly above this threshold.
• VRLA batteries self-discharge during storage. If the GVSBTHULL has been warehoused for more than a few months before installation, run APC's recommended conditioning charge before commissioning — deploying a partially discharged module into a live UPS distorts runtime calculations and can trigger premature low-battery events.

This module is the right call for Galaxy VS installations in data centers or network operations centers where the UPS battery frame is already sized for high-capacity VRLA modules and the room environment stays within APC's specified thermal band. Outside that scenario — particularly in hot aisles or poorly cooled edge locations — the temperature constraint is the deciding factor.
